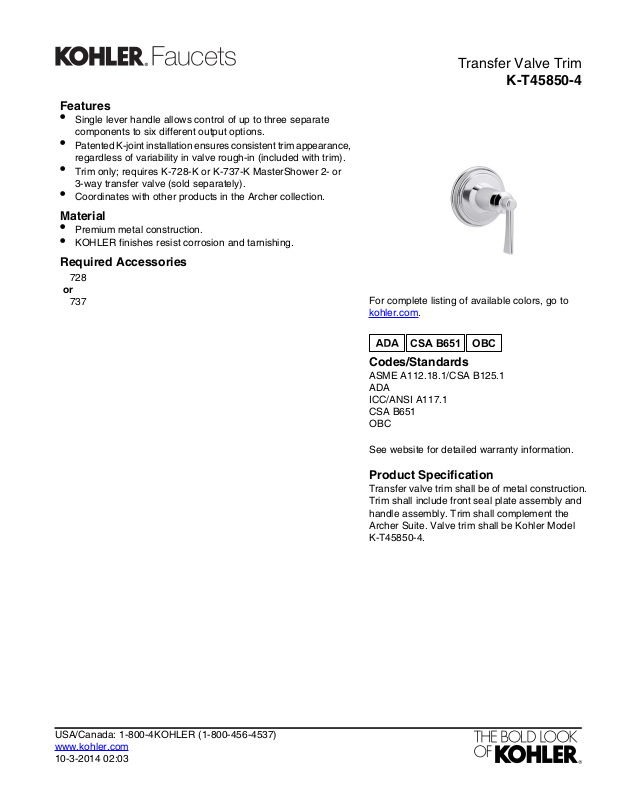

Page 1
Features
CSA B651
OBC
•
Single lever handle allows control of up to three separate
components to six different output options.
•
Patented K-joint installation ensures consistent trim appearance,
regardless of variability in valve rough-in (included with trim).
•
Trim only; requires K-728-K or K-737-K MasterShower 2- or
3-way transfer valve (sold separately).
•
Coordinates with other products in the Archer collection.
Material
•
Premium metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Required Accessories
728
or
737
Transfer Valve Trim
K-T45850-4
For complete listing of available colors, go to
kohler.com.
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
See website for detailed warranty information.
Product Specification
Transfer valve trim shall be of metal construction.
Trim shall include front seal plate assembly and
handle assembly. Trim shall complement the
Archer Suite. Valve trim shall be Kohler Model
K-T45850-4.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
10-3-2014 02:03
Page 2
3-1/4"
Transfer Valve Trim
K-T45850-4
All measurements are nominal.
45 psi (3.1 bar)Pressure:
Installation NotesTechnical Information
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
10-3-2014 02:03
