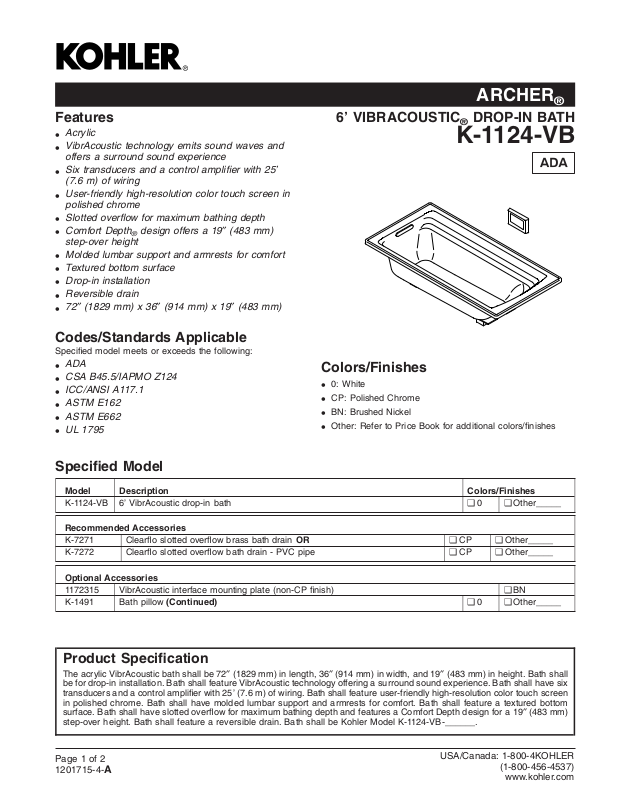

ARCHER
®
Features
Acrylic
•
VibrAcoustic technology emits sound waves and
•
offers a surround sound experience
Six transducers and a control amplifier with 25’
•
(7.6 m) of wiring
User-friendly high-resolution color touch screen in
•
polished chrome
Slotted overflow for maximum bathing depth
•
Comfort Depth
•
step-over height
Molded lumbar support and armrests for comfort
•
Textured bottom surface
•
Drop-in installation
•
Reversible drain
•
72″ (1829 mm) x 36″ (914 mm) x 19″ (483 mm)
•
design offers a 19″ (483 mm)
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
CSA B45.5/IAPMO Z124
•
ICC/ANSI A117.1
•
ASTM E162
•
ASTM E662
•
UL 1795
•
6’ VIBRACOUSTIC®DROP-IN BATH
K-1124-VB
Colors/Finishes
0: White
•
CP: Polished Chrome
•
BN: Brushed Nickel
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1124-VB 6’ VibrAcoustic drop-in bath ❑ 0 ❑ Other_____
Recommended Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ Other_____
K-7272 Clearflo slotted overflow bath drain - PVC pipe ❑ CP ❑ Other_____
Optional Accessories
1172315 VibrAcoustic interface mounting plate (non-CP finish) ❑ BN
K-1491 Bath pillow (Continued) ❑ 0 ❑ Other_____
Product Specification
The acrylic VibrAcoustic bath shall be 72″ (1829 mm) in length, 36″ (914 mm) in width, and 19″ (483 mm) in height. Bath shall
be for drop-in installation. Bath shall feature VibrAcoustic technology offering a surround sound experience. Bath shall have six
transducers and a control amplifier with 25’ (7.6 m) of wiring. Bath shall feature user-friendly high-resolution color touch screen
in polished chrome. Bath shall have molded lumbar support and armrests for comfort. Bath shall feature a textured bottom
surface. Bath shall have slotted overflow for maximum bathing depth and features a Comfort Depth design for a 19″ (483 mm)
step-over height. Bath shall feature a reversible drain. Bath shall be Kohler Model K-1124-VB-______.
Page 1 of 2
1201715-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
ARCHER
K-1601 (Continued) Bath footstop ❑ 0 ❑ Other_____
K-9529 Removable bath seat ❑ 0
®
Technical Information
Fixture*: *Approx. measurements for comparison only.
Basin area,
bottom
Basin area, top 64-1/2″ (1638 mm) x 30-1/2″
Weight 81 lbs (36.7 kg)
Water depth 15″ (381 mm) to overflow
Capacity 72 gal (272.5 L) to overflow
Drop-in cutout 70-1/2″ (1791 mm) x 34-1/2″ (876 mm)
Amplifier/control: Power per channel V Hz
18"
(457 mm)
51-3/8″ (1305 mm) x 21″ (533 mm)
(775 mm)
15 (rms) W 120 50/60z
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD): Amplifier/control, 120 V, 15 A,
50/60 Hz
Installation Notes
Install this product according to the installation guide.
Control amplifier fits 16″ (406 mm) center studs. A grounded
outlet within the wall framing must be within 24″ (610 mm) of
the planned control amplifier.
Cables are included, 25’ (7.6 m) each.
Floor support under this product must provide for a minimum
of 39 lbs/square foot (190.4 kg/square meter) loading.
Will comply with ADA when installed per Section 607
Bathtubs of the Act.
Ensure that the bath, user interface, amplifier, and
transducers are functional before completing the installation.
No change in measurements if connected
with drain illustrated. (K-7272)
1-1/2"
(38 mm)
5-5/8"
(143 mm)
7/8"
(22 mm)
3-1/2"
(89 mm)
11-1/4"
(286 mm)
72" (1829 mm)
2-1/2"
(64 mm)
1-1/2"
Bath Drain
ARCHER®6’ VIBRACOUSTIC®DROP-IN BATH
Page2of2
1201715-4-
A
4-1/8"
(105 mm)
*10"
(254 mm)
3/4" (19 mm)
Drop-in Rim
Detail
*24"
(610 mm)
Lumbar
Angle 42˚
*Recommended User
Interface Location
Product Diagram
1-1/2"
(38 mm)
19"
(483 mm)
14-1/2"
(368 mm)
Control Amplifier
17-1/2"
(445 mm)
User Interface
3-3/16"
(81 mm)
11-3/4"
(298 mm)
36" (914 mm)
