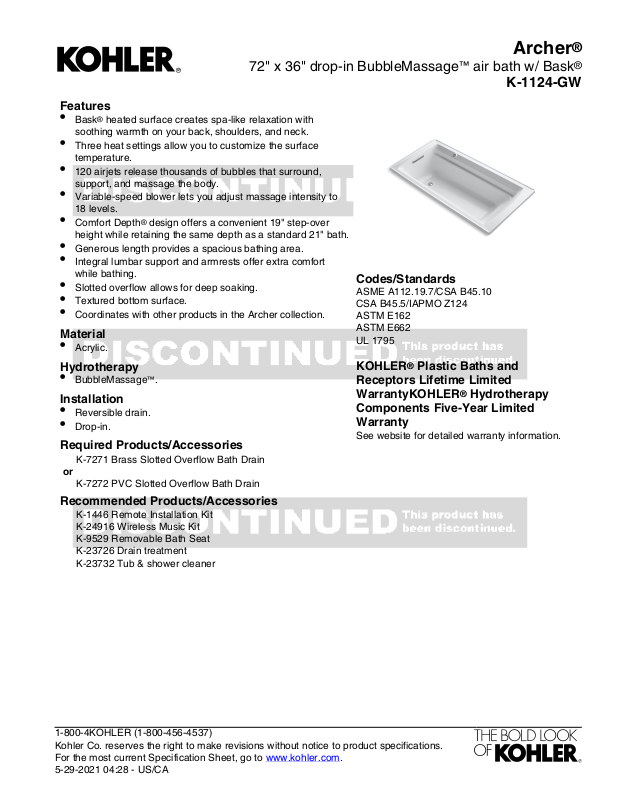

72" x 36" drop-in BubbleMassage™ air bath w/ Bask
Features
•
Bask® heated surface creates spa-like relaxation with
soothing warmth on your back, shoulders, and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
120 airjets release thousands of bubbles that surround,
support, and massage the body.
•
Variable-speed blower lets you adjust massage intensity to
18 levels.
•
Comfort Depth® design offers a convenient 19" step-over
height while retaining the same depth as a standard 21" bath.
•
Generous length provides a spacious bathing area.
•
Integral lumbar support and armrests offer extra comfort
while bathing.
•
Slotted overflow allows for deep soaking.
•
Textured bottom surface.
•
Coordinates with other products in the Archer collection.
Material
•
Acrylic.
Hydrotherapy
•
BubbleMassage™.
Installation
•
Reversible drain.
•
Drop-in.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1446 Remote Installation Kit
K-24916 Wireless Music Kit
K-9529 Removable Bath Seat
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
KOHLER® Plastic Baths and
Receptors Lifetime Limited
WarrantyKOHLER® Hydrotherapy
Components Five-Year Limited
Warranty
See website for detailed warranty information.
Archer
®
K-1124-GW
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 04:28 - US/CA
Page 2

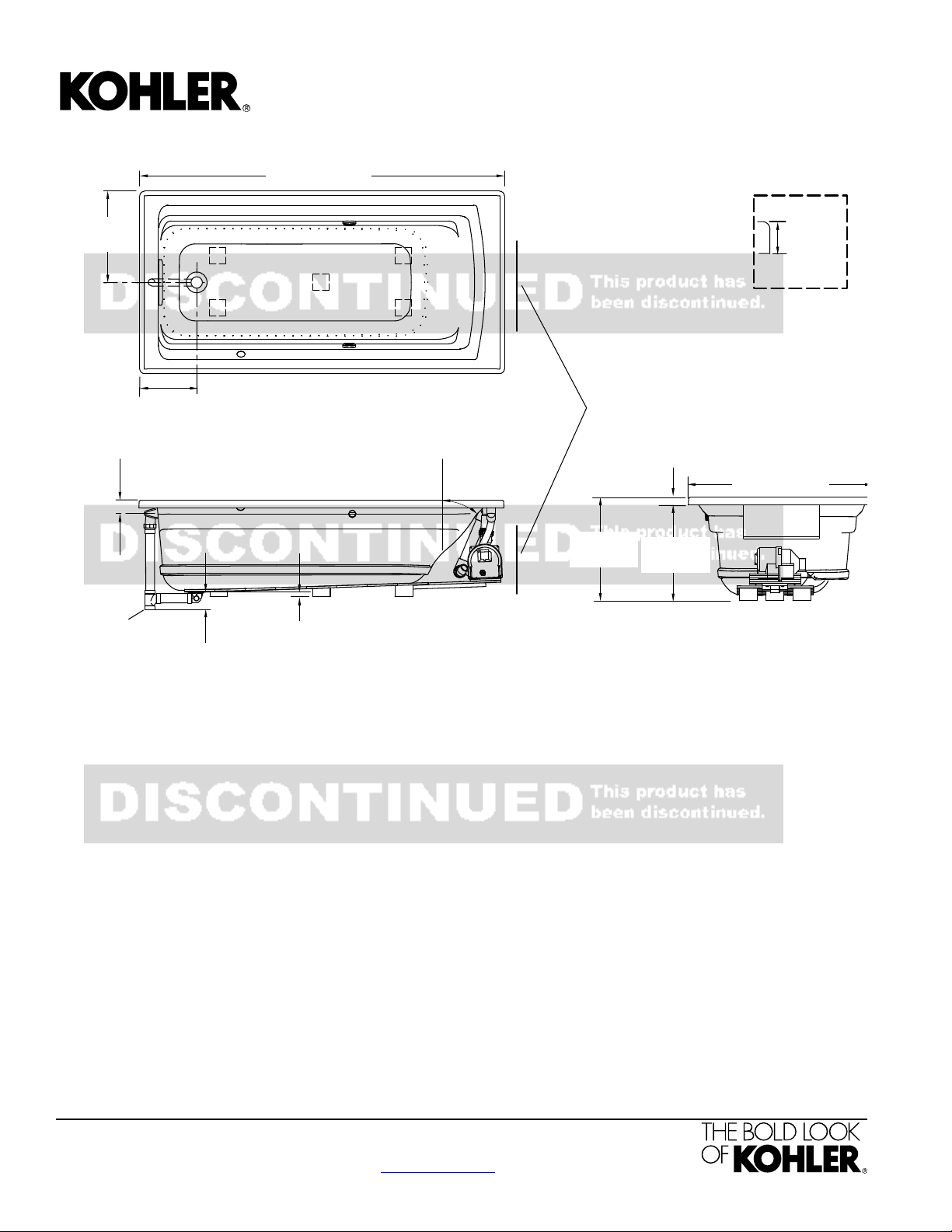

Archer
2-1/2"
(64 mm)
Angle 42°
Lumbar
(105 mm)
4-1/8"
18"
(457 mm)
(286 mm)
11-1/4"
Bath Drain
1-1/2"
3/4" (19 mm)
72" (1829 mm)
(38 mm)
1-1/2"
(521 mm)
20-1/2"
(483 mm)
19"
Rim Detail
Drop-In
)mm 83(
"2/1-1
36" (914 mm)
niM H )mm 183( "51 x W )mm 267( "03
sseccA lortnoC/rotoM rewolB
with drain illustrated. (K-7272)
No change in measurements if connected
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Blower, Heated
Surface:
120 V, 15 A, 60 Hz
Technical Information
All product dimensions are nominal.
Installation: Drop-in
Drain location: End
Basin area, bottom: 51-3/8" x 21" (1305 mm x 533 mm)
Basin area, top: 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Weight: 106 lbs (48.1 kg)
Minimum floor load: 41 lbs/ft² (200.2 kg/m²)
Water depth: 15" (381 mm)
Cutout: Drop-in, 70-1/2" x 34-1/2" (1791 mm x
876 mm)
Electrical component
rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65
W
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Remote blower installation kit is available
for relocating the blower. Provide access for
servicing the blower.
Do not relocate or alter the PVC tee or coiled
flexible tubing connected to the blower. Follow
the blower relocation instructions exactly.
72" x 36" drop-in BubbleMassage™ air bath w/ Bask
K-1124-GW
®
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 04:28 - US/CA
