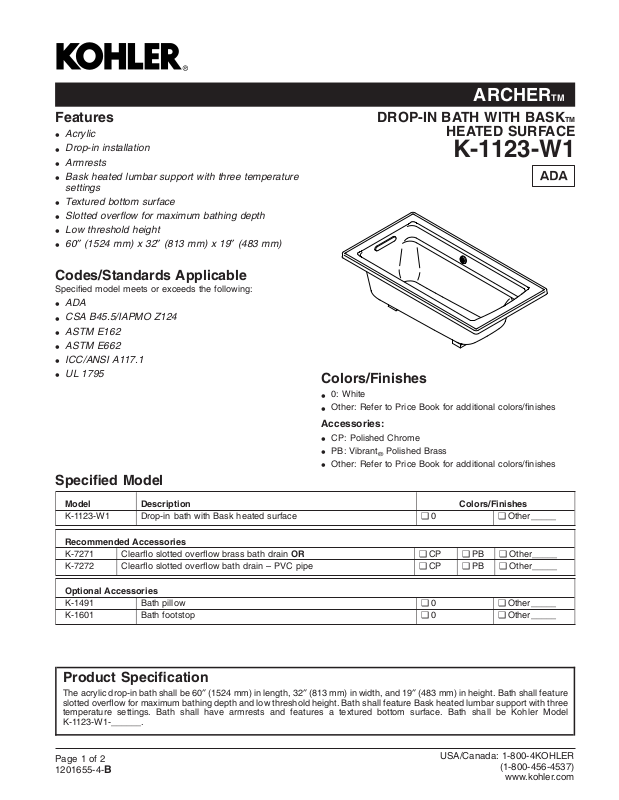

Page 1
ARCHERTM
Features
Acrylic
•
Drop-in installation
•
Armrests
•
Bask heated lumbar support with three temperature
•
settings
Textured bottom surface
•
Slotted overflow for maximum bathing depth
•
Low threshold height
•
60″ (1524 mm) x 32″ (813 mm) x 19″ (483 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
ICC/ANSI A117.1
•
UL 1795
•
Specified Model
DROP-IN BATH WITH BASKTM
HEATED SURFACE
K-1123-W1
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories:
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1123-W1 Drop-in bath with Bask heated surface ❑ 0 ❑ Other_____
Recommended Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ PB ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1491 Bath pillow ❑ 0 ❑ Other_____
K-1601 Bath footstop ❑ 0 ❑ Other_____
Product Specification
The acrylic drop-in bath shall be 60″ (1524 mm) in length, 32″ (813 mm) in width, and 19″ (483 mm) in height. Bath shall feature
slotted overflow for maximum bathing depth and low threshold height. Bath shall feature Bask heated lumbar support with three
temperature settings. Bath shall have armrests and features a textured bottom surface. Bath shall be Kohler Model
K-1123-W1-______.
Page 1 of 2
1201655-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
ARCHERTM
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 70 lbs (31.7 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 58 gal (219.5 L)
* Approximate measurements for comparison only.
Drop-in cutout 58-1/2″ (1486 mm) x 30-1/2″ (775 mm)
Heater: W V HZ A
45-1/8″ (1146 mm) x 19-11/16″ (500 mm)
52-3/4″ (1340 mm) x 25-5/16″ (643 mm)
65 120 60 .5
Installation Notes
Install this product according to the installation guide.
Locate a GFCI-protected 120 V, 15 A, grounded electrical
outlet within 24″ (610 mm) of the bath junction box.
40″ (1016 mm) cable is included.
Floor support under this product must provide for a minimum
of 44 lbs/square foot (212 kg/square meter) loading.
The hot water supply should be 70% of the capacity of the
bath or greater. Installations will vary.
This bath is designed for drop-in installation only. It is not
suited for use in a three wall alcove with an overhead shower.
Will comply with ADA when installed per Section 607
Bathtubs of the ADA 2010 Standards for Accessible Design.
No change in measurements if connected
with drain illustrated. (K-7272)
16"
(406 mm)
1-1/2"
(38 mm)
2-1/2"
(64 mm)
1-1/2"
Bath Drain
11-1/4"
(286 mm)
60" (1524 mm)
Lumbar Angle 25˚
4-1/8"
3/4" (19 mm)
(105 mm)
Access Panel
30" (762 mm) L x
15" (381 mm) H Min
Product Diagram
32" (813 mm)
1-1/2"
(38 mm)
Drop-in Rim
Detail
17-1/2"
(445 mm)
19"
(483 mm)
ARCHERTM DROP-IN BATH WITH BASKTM HEATED SURFACE
Page2of2
1201655-4-
B
