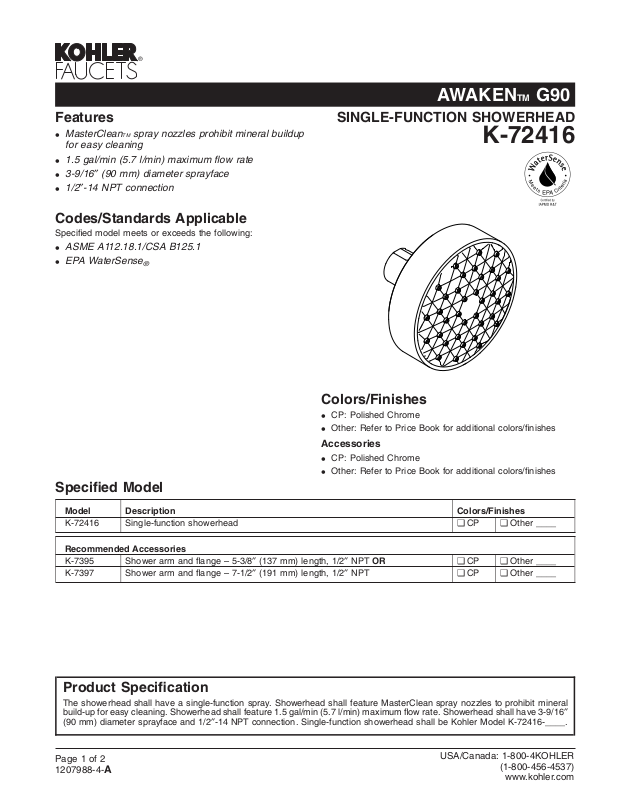

AWAKENTM G90
Features
MasterClean
•
for easy cleaning
1.5 gal/min (5.7 l/min) maximum flow rate
•
3-9/16″ (90 mm) diameter sprayface
•
1/2″-14 NPT connection
•
TM spray nozzles prohibit mineral buildup
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
EPA WaterSense
•
®
Specified Model
SINGLE-FUNCTION SHOWERHEAD
K-72416
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-72416 Single-function showerhead ❑ CP ❑ Other ____
Recommended Accessories
K-7395 Shower arm and flange – 5-3/8″ (137 mm) length, 1/2″ NPT OR ❑ CP ❑ Other ____
K-7397 Shower arm and flange – 7-1/2″ (191 mm) length, 1/2″ NPT ❑ CP ❑ Other ____
Product Specification
The showerhead shall have a single-function spray. Showerhead shall feature MasterClean spray nozzles to prohibit mineral
build-up for easy cleaning. Showerhead shall feature 1.5 gal/min (5.7 l/min) maximum flow rate. Showerhead shall have 3-9/16″
(90 mm) diameter sprayface and 1/2″-14 NPT connection. Single-function showerhead shall be Kohler Model K-72416-____.
Page 1 of 2
1207988-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
AWAKENTM G90
Installation Notes
Install this product according to the installation guide.
1/2" -14 NPT
2-5/8" (67 mm)
Ø 3-9/16" (90 mm)
Product Diagram
AWAKENTM G90 SINGLE-FUNCTION SHOWERHEAD
Page2of2
1207988-4-
A
