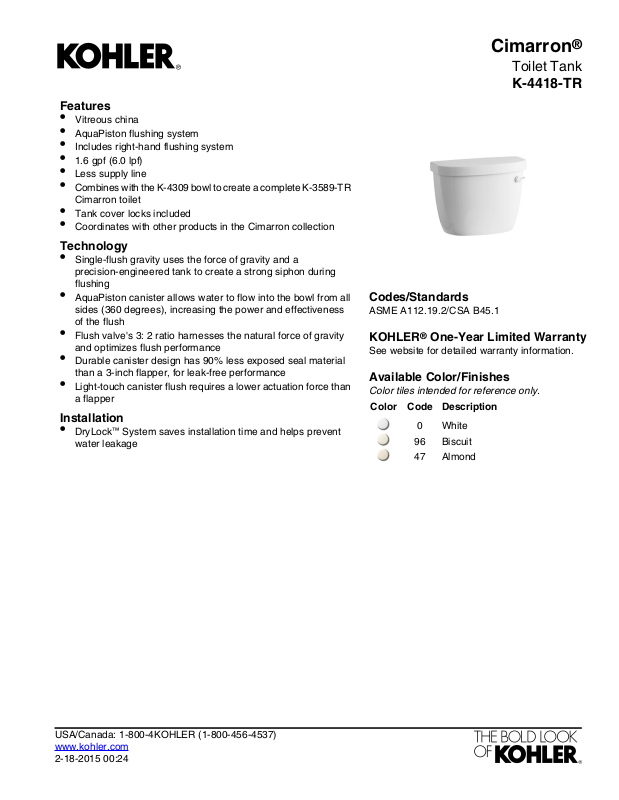

Page 1
Features
•
Vitreous china
•
AquaPiston flushing system
•
Includes right-hand flushing system
•
1.6 gpf (6.0 lpf)
•
Less supply line
•
Combines with the K-4309 bowl to create a complete K-3589-TR
Cimarron toilet
•
Tank cover locks included
•
Coordinates with other products in the Cimarron collection
Technology
•
Single-flush gravity uses the force of gravity and a
precision-engineered tank to create a strong siphon during
flushing
•
AquaPiston canister allows water to flow into the bowl from all
sides (360 degrees), increasing the power and effectiveness
of the flush
•
Flush valve's 3: 2 ratio harnesses the natural force of gravity
and optimizes flush performance
•
Durable canister design has 90% less exposed seal material
than a 3-inch flapper, for leak-free performance
•
Light-touch canister flush requires a lower actuation force than
a flapper
Installation
•
DryLock™ System saves installation time and helps prevent
water leakage
Cimarron
®
Toilet Tank
K-4418-TR
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:24
Page 2
No image available.
Cimarron
Toilet Tank
K-4418-TR
®
Technical Information
All product dimensions are nominal.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:24
