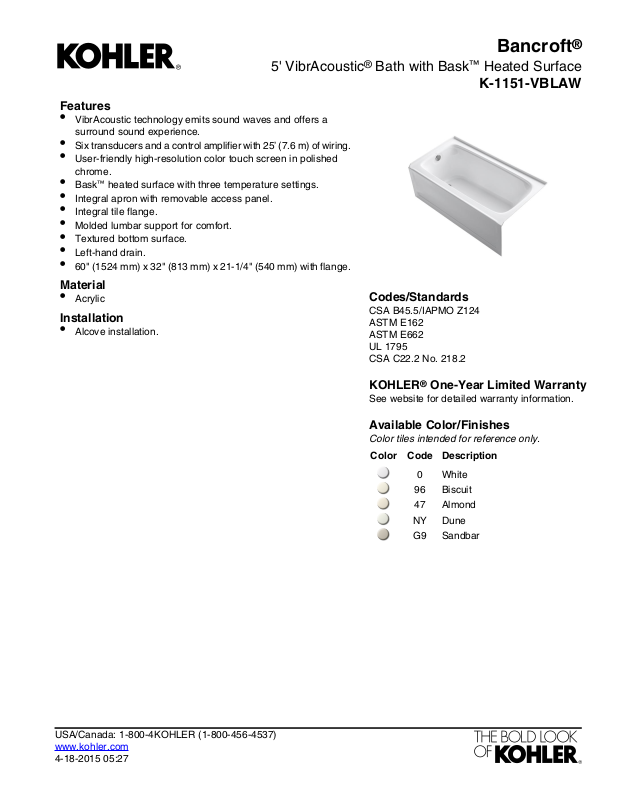

Page 1
5' VibrAcoustic® Bath with Bask™ Heated Surface
Features
•
VibrAcoustic technology emits sound waves and offers a
surround sound experience.
•
Six transducers and a control amplifier with 25’ (7.6 m) of wiring.
•
User-friendly high-resolution color touch screen in polished
chrome.
•
Bask™ heated surface with three temperature settings.
•
Integral apron with removable access panel.
•
Integral tile flange.
•
Molded lumbar support for comfort.
•
Textured bottom surface.
•
Left-hand drain.
•
60" (1524 mm) x 32" (813 mm) x 21-1/4" (540 mm) with flange.
Material
•
Acrylic
Installation
•
Alcove installation.
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
Bancroft
®
K-1151-VBLAW
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 05:27

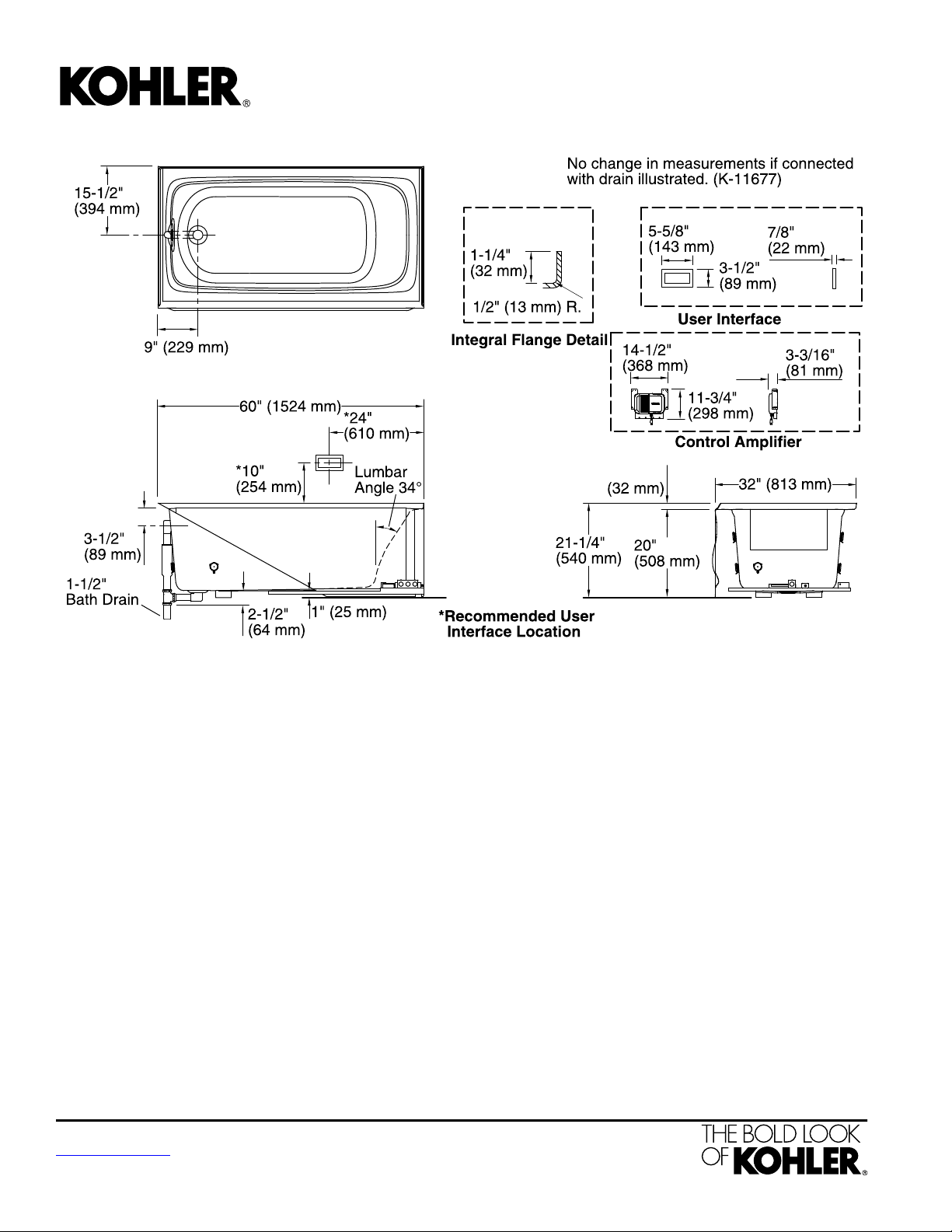

Page 2
1-1/4"
Bancroft
®
5' VibrAcoustic® Bath with Bask™ Heated Surface
K-1151-VBLAW
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 50/60 HzAmplifier, Heater:
Technical Information
All product dimensions are nominal.
Alcove with FlangeInstallation:
LeftDrain location:
45" x 22" (1143 mm x 559 mm)Basin area, bottom:
54" x 25" (1372 mm x 635 mm)Basin area, top:
96 lbs (43.5 kg)Weight:
45 lbs/ft² (219.7 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
60 gal (227.1 L)Water capacity:
Electrical rating:
Amplifier: 120 V, 50/60 Hz, 15 W
Heater: 120 V, 1.1 A, 60 Hz, 65 W
Notes
Measure your actual product for roughing-in
details.
Install this product according to the installation
guide.
Ensure that the interface, amplifier, and
transducers are functional before completing the
installation.
Control amplifier fits 16" (406 mm) center studs.
25’ (7.6 m) cables are included.
Locate the bath within 24" (610 mm) of a
GFCI-protected 120 V, 15 A grounded electrical
outlet. A second grounded outlet within the wall
framing must be within 24" (610 mm) of the
planned control amplifier. One electrical service
may be used for the entire bath and related
electrical components.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 05:27
