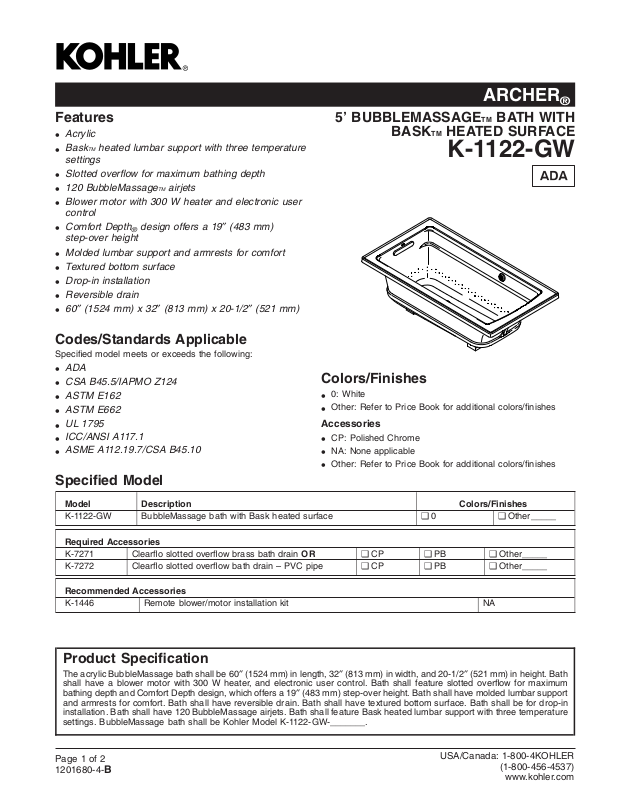

ARCHER
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
Slotted overflow for maximum bathing depth
•
120 BubbleMassage
•
Blower motor with 300 W heater and electronic user
•
control
Comfort Depth
•
step-over height
Molded lumbar support and armrests for comfort
•
Textured bottom surface
•
Drop-in installation
•
Reversible drain
•
60″ (1524 mm) x 32″ (813 mm) x 20-1/2″ (521 mm)
•
TM airjets
design offers a 19″ (483 mm)
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
UL 1795
•
ICC/ANSI A117.1
•
ASME A112.19.7/CSA B45.10
•
Specified Model
5’ BUBBLEMASSAGETM BATH WITH
BASKTM HEATED SURFACE
K-1122-GW
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1122-GW BubbleMassage bath with Bask heated surface ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ PB ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ PB ❑ Other_____
Recommended Accessories
K-1446 Remote blower/motor installation kit NA
Product Specification
The acrylic BubbleMassage bath shall be 60″ (1524 mm) in length, 32″ (813 mm) in width, and 20-1/2″ (521 mm) in height. Bath
shall have a blower motor with 300 W heater, and electronic user control. Bath shall feature slotted overflow for maximum
bathing depth and Comfort Depth design, which offers a 19″ (483 mm) step-over height. Bath shall have molded lumbar support
and armrests for comfort. Bath shall have reversible drain. Bath shall have textured bottom surface. Bath shall be for drop-in
installation. Bath shall have 120 BubbleMassage airjets. Bath shall feature Bask heated lumbar support with three temperature
settings. BubbleMassage bath shall be Kohler Model K-1122-GW-_______.
Page 1 of 2
1201680-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
ARCHER
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 52-3/4″ (1340 mm) x 25-5/16″
Weight 90 lbs (40.8 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 58 gal (219.5 L)
* Approximate measurements for comparison only.
Drop-in cutout 58-1/2″ (1486 mm) x 30-1/2″ (775 mm)
Blower motor 300 120 60 10
Heated
surface
45-1/8″ (1146 mm) x 19-11/16″
(500 mm)
(643 mm)
WV HzA
65 120 60 .5
16"
(406 mm)
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI).
Blower/Heated surface 120 V, 15 A, 60 Hz
Blower motor and heated surface are supplied with
separate 24″ (610 mm) grounding-type plug-in cords.
Installation Notes
Install this product according to the installation guide.
Floor support under this product must provide for a minimum
of 45 lbs/square foot (218 kg/square meter) loading.
This product is designed for a drop-in installation only. It is not
suited for use in a three-wall alcove with an overhead shower.
NOTICE: Relocation of the blower motor and check valve is
optional. Mount the blower motor and check valve together;
do not move one without the other. Two access panels are
required for blower motor and check valve relocation. Provide
one access panel at the blower motor/control location and
another at the heated surface location.
Will comply with ADA when installed per Section 607
Bathtubs of the ADA 2010 Standards for Accessible Design.
No change in measurements if connected
with drain illustrated. (K-7271 or K-7272)
11-1/4"
(286 mm)
Lumbar
Angle
2-1/2"
(64 mm)
60" (1524 mm)
25˚
20-1/2"
(521 mm)
1-1/2"
Bath Drain
4-1/8"
(105 mm)
3/4" (19 mm)

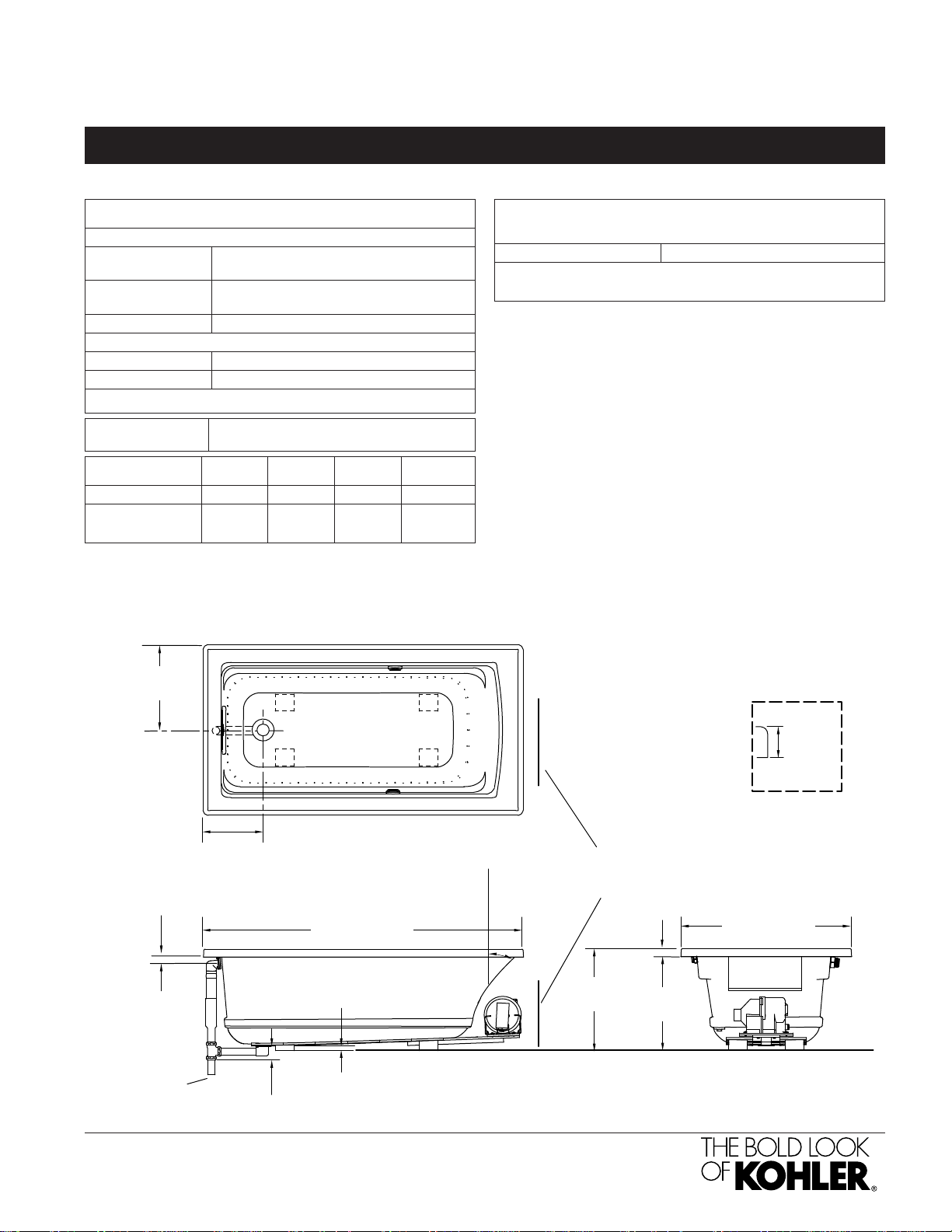

Product Diagram
ARCHER®5’ BUBBLEMASSAGETM BATH WITH BASKTM HEATED SURFACE
Page2of2
1201680-4-
B
Blower Motor Access
30" (762 mm) W x
15" (381 mm) H Min
1-1/2"
(38 mm)
32" (813 mm)
19"
(483 mm)
1-1/2"
(38 mm)
Drop-In Rim
Detail
