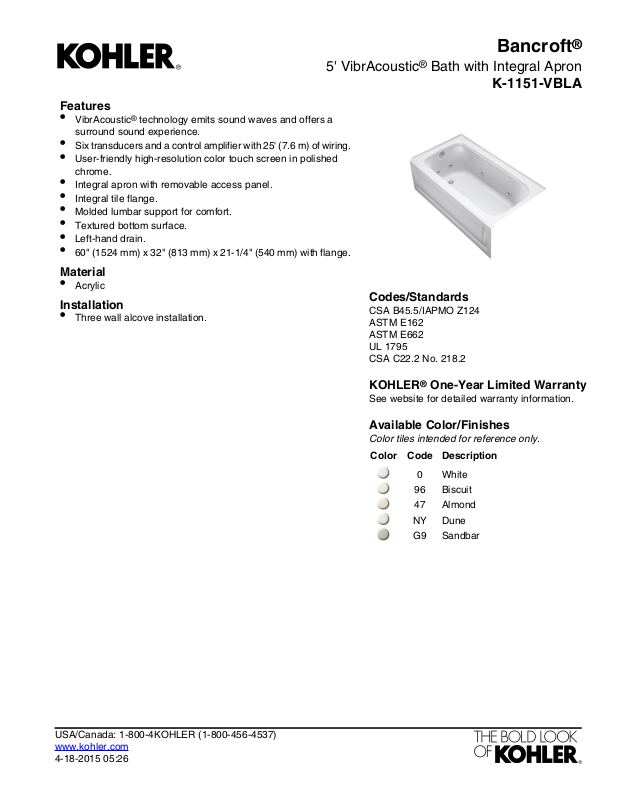

Page 1
Features
•
VibrAcoustic® technology emits sound waves and offers a
surround sound experience.
•
Six transducers and a control amplifier with 25' (7.6 m) of wiring.
•
User-friendly high-resolution color touch screen in polished
chrome.
•
Integral apron with removable access panel.
•
Integral tile flange.
•
Molded lumbar support for comfort.
•
Textured bottom surface.
•
Left-hand drain.
•
60" (1524 mm) x 32" (813 mm) x 21-1/4" (540 mm) with flange.
Material
•
Acrylic
Installation
•
Three wall alcove installation.
Bancroft
®
5' VibrAcoustic® Bath with Integral Apron
K-1151-VBLA
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 05:26
Page 2
1-1/4"
Bancroft
®
5' VibrAcoustic® Bath with Integral Apron
K-1151-VBLA
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 50/60 HzAmplifier:
Technical Information
All product dimensions are nominal.
3-Wall AlcoveInstallation:
LeftDrain location:
45" x 22" (1143 mm x 559 mm)Basin area, bottom:
54" x 25" (1372 mm x 635 mm)Basin area, top:
91 lbs (41.3 kg)Weight:
45 lbs/ft² (219.7 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
60 gal (227.1 L)Water capacity:
Amplifier: 120 V, 50/60 Hz, 15 WElectrical rating:
Notes
Measure your actual product for roughing-in
details.
Install this product according to the installation
guide.
Control amplifier fits 16" (406 mm) center studs.
A grounded outlet within the wall framing must
be within 24" (610 mm) of the planned control
amplifier.
Cables are included, 25’ (7.6 m) each.
Ensure that the bath, user interface, amplifier,
and transducers are functional before completing
the installation.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 05:26
