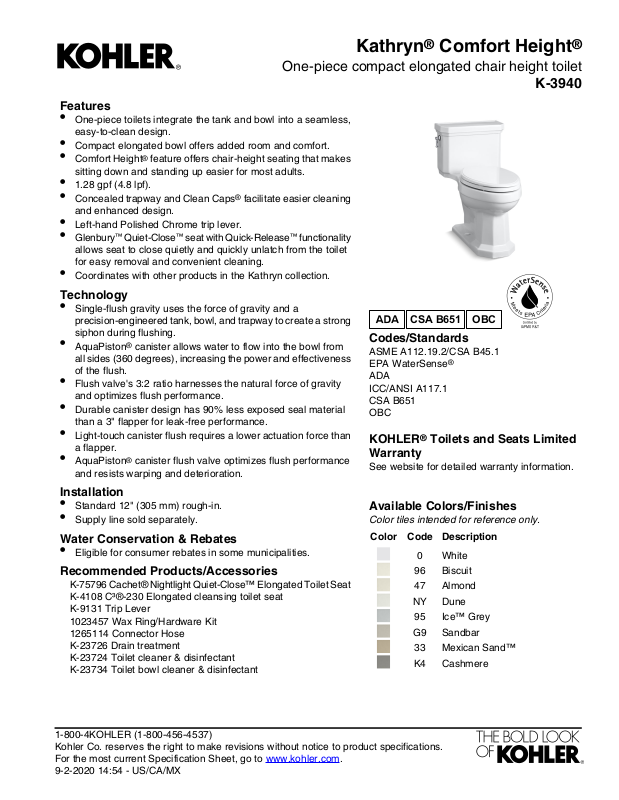

Page 1
CSA B651
OBC
One-piece compact elongated chair height toilet
Features
•
One-piece toilets integrate the tank and bowl into a seamless,
easy-to-clean design.
•
Compact elongated bowl offers added room and comfort.
•
Comfort Height® feature offers chair-height seating that makes
sitting down and standing up easier for most adults.
•
1.28 gpf (4.8 lpf).
•
Concealed trapway and Clean Caps® facilitate easier cleaning
and enhanced design.
•
Left-hand Polished Chrome trip lever.
•
Glenbury™ Quiet-Close™ seat with Quick-Release™ functionality
allows seat to close quietly and quickly unlatch from the toilet
for easy removal and convenient cleaning.
•
Coordinates with other products in the Kathryn collection.
Technology
•
Single-flush gravity uses the force of gravity and a
precision-engineered tank, bowl, and trapway to create a strong
siphon during flushing.
•
AquaPiston® canister allows water to flow into the bowl from
all sides (360 degrees), increasing the power and effectiveness
of the flush.
•
Flush valve's 3:2 ratio harnesses the natural force of gravity
and optimizes flush performance.
•
Durable canister design has 90% less exposed seal material
than a 3" flapper for leak-free performance.
•
Light-touch canister flush requires a lower actuation force than
a flapper.
•
AquaPiston® canister flush valve optimizes flush performance
and resists warping and deterioration.
Kathryn® Comfort Height
K-3940
Codes/Standards
ASME A112.19.2/CSA B45.1
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Toilets and Seats Limited
Warranty
See website for detailed warranty information.
®
®
Installation
•
Standard 12" (305 mm) rough-in.
•
Supply line sold separately.
Available Colors/Finishes
Color tiles intended for reference only.
Water Conservation & Rebates
•
Eligible for consumer rebates in some municipalities.
Recommended Products/Accessories
K-75796 Cachet® Nightlight Quiet-Close™ Elongated Toilet Seat
K-4108 C³®-230 Elongated cleansing toilet seat
K-9131 Trip Lever
1023457 Wax Ring/Hardware Kit
1265114 Connector Hose
K-23726 Drain treatment
K-23724 Toilet cleaner & disinfectant
K-23734 Toilet bowl cleaner & disinfectant
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 14:54 - US/CA/MX
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Page 2

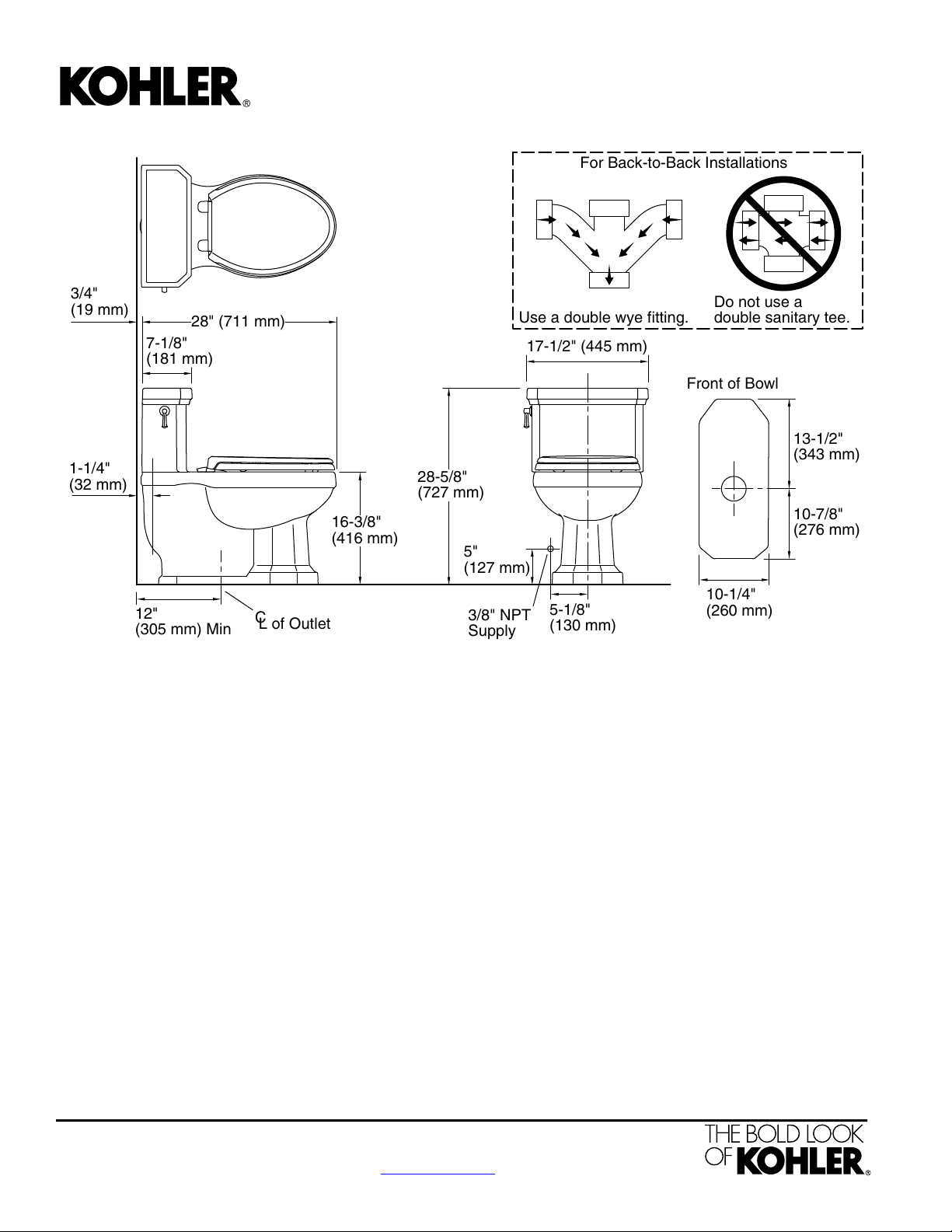

28" (711 mm)
Front of Bowl
17-1/2" (445 mm)
13-1/2"
(343 mm)
10-7/8"
(276 mm)
10-1/4"
(260 mm)
5-1/8"
(130 mm)
3/8" NPT
Supply
5"
(127 mm)
16-3/8"
(416 mm)
28-5/8"
(727 mm)
12"
(305 mm) Min
1-1/4"
(32 mm)
7-1/8"
(181 mm)
3/4"
(19 mm)
C
L of Outlet
Use a double wye fitting.
double sanitary tee.
Do not use a
For Back-to-Back Installations
Kathryn® Comfort Height
®
One-piece compact elongated chair height toilet
K-3940
Notes
Install this product according to the installation
instructions.
For back-to-back toilet installations: Use only a
45° double wye fitting.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
Plumbing codes may require elongated toilets
and elongated, open-front seats in public
bathrooms.
Accessibility standards may require controls to
be located on the open side of the toilet.
Technical Information
All product dimensions are nominal.
One-pieceToilet type:
FloorWaste Outlet:
ElongatedBowl shape:
Flush type:
Water Consumption
AquaPiston
2-1/8" (54 mm)Trap passageway:
1.28 gpf (4.8 lpf)Full:
10-1/2" x 7-1/2" (267 mm x 191 mm)Water surface size:
5-5/8" (143 mm)Rim to water surface:
12" (305 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
®
Fixture Supply Requirements
20 psi (137.9 kPa)Min static pressure:
80 psi (551.6 kPa)Max static pressure:
15 psi (103.4 kPa)Min flowing pressure:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 14:54 - US/CA/MX
1 gpm (3.8 lpm)Min flow rate:
