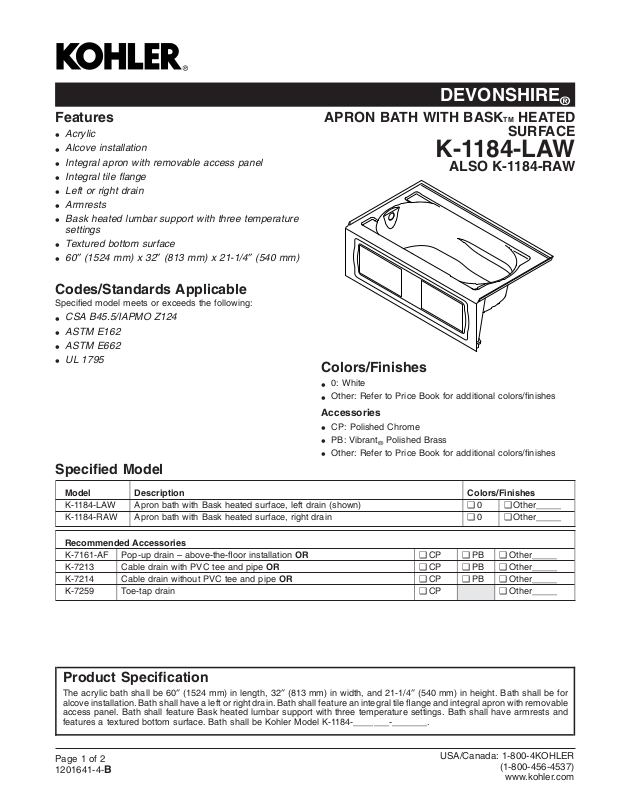

DEVONSHIRE
®
Features
Acrylic
•
Alcove installation
•
Integral apron with removable access panel
•
Integral tile flange
•
Left or right drain
•
Armrests
•
Bask heated lumbar support with three temperature
•
settings
Textured bottom surface
•
60″ (1524 mm) x 32″ (813 mm) x 21-1/4″ (540 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
UL 1795
•
Specified Model
APRON BATH WITH BASKTM HEATED
SURFACE
K-1184-LAW
ALSO K-1184-RAW
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1184-LAW Apron bath with Bask heated surface, left drain (shown) ❑ 0 ❑ Other_____
K-1184-RAW Apron bath with Bask heated surface, right drain ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Pop-up drain – above-the-floor installation OR ❑ CP ❑ PB ❑ Other_____
K-7213 Cable drain with PVC tee and pipe OR ❑ CP ❑ PB ❑ Other_____
K-7214 Cable drain without PVC tee and pipe OR ❑ CP ❑ PB ❑ Other_____
K-7259 Toe-tap drain ❑ CP ❑ Other_____
Product Specification
The acrylic bath shall be 60″ (1524 mm) in length, 32″ (813 mm) in width, and 21-1/4″ (540 mm) in height. Bath shall be for
alcove installation. Bath shall have a left or right drain. Bath shall feature an integral tile flange and integral apron with removable
access panel. Bath shall feature Bask heated lumbar support with three temperature settings. Bath shall have armrests and
features a textured bottom surface. Bath shall be Kohler Model K-1184-_______-_______.
Page 1 of 2
1201641-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
DEVONSHIRE
Optional Accessories
K-1491 Bath pillow ❑ 0 ❑ Other_____
K-1601 Bath footstop ❑ 0 ❑ Other_____
®
Technical Information
Fixture*:
Bathing well:
Basin area, bottom 42″ (1067 mm) x 20″ (508 mm)
Basin area, top 51″ (1295 mm) x 24″ (610 mm)
Weight 80 lbs (36.3 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 60 gal (277.1 L)
* Approximate measurements for comparison only.
Heater: W V HZ A
65 120 60 .5
16"
(406 mm)
Installation Notes
Install this product according to the installation guide.
Locate a GFCI-protected 120 V, 15 A, grounded electrical
outlet within 24″ (610 mm) of the bath junction box.
40″ (1016 mm) cable is included.
Floor support under the bath must provide for a minimum of
41 lbs/square foot (202 kg/square meter) loading.
No change in measurements if connected with drain
illustrated. (K-7161-AF)
1-1/4"
(32 mm)
9"
(229 mm)
60" (1524 mm)
1-1/4"
(32 mm)
3"
(76 mm)
1-1/2"
2-1/2"
(64 mm)
1" (25 mm)
Lumbar
Angle
25˚
Bath Drain
Product Diagram
DEVONSHIRE®APRON BATH WITH BASKTM HEATED SURFACE
Page2of2
1201641-4-
B
21-1/4"
(540 mm)
1/2" (13 mm)
R. Max
Integral Flange Detail
32" (813 mm)
20"
(508 mm)
