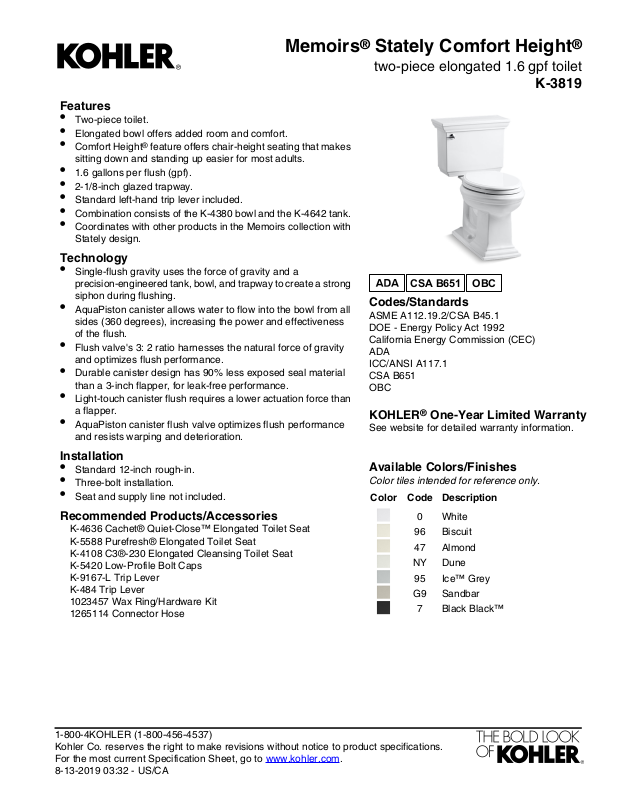

Page 1
CSA B651
OBC
Memoirs® Stately Comfort Height
Features
•
Two-piece toilet.
•
Elongated bowl offers added room and comfort.
•
Comfort Height® feature offers chair-height seating that makes
sitting down and standing up easier for most adults.
•
1.6 gallons per flush (gpf).
•
2-1/8-inch glazed trapway.
•
Standard left-hand trip lever included.
•
Combination consists of the K-4380 bowl and the K-4642 tank.
•
Coordinates with other products in the Memoirs collection with
Stately design.
Technology
•
Single-flush gravity uses the force of gravity and a
precision-engineered tank, bowl, and trapway to create a strong
siphon during flushing.
•
AquaPiston canister allows water to flow into the bowl from all
sides (360 degrees), increasing the power and effectiveness
of the flush.
•
Flush valve's 3: 2 ratio harnesses the natural force of gravity
and optimizes flush performance.
•
Durable canister design has 90% less exposed seal material
than a 3-inch flapper, for leak-free performance.
•
Light-touch canister flush requires a lower actuation force than
a flapper.
•
AquaPiston canister flush valve optimizes flush performance
and resists warping and deterioration.
®
two-piece elongated 1.6 gpf toilet
K-3819
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Installation
•
Standard 12-inch rough-in.
•
Three-bolt installation.
•
Seat and supply line not included.
Available Colors/Finishes
Color tiles intended for reference only.
Recommended Products/Accessories
K-4636 Cachet® Quiet-Close™ Elongated Toilet Seat
K-5588 Purefresh® Elongated Toilet Seat
K-4108 C3®-230 Elongated Cleansing Toilet Seat
K-5420 Low-Profile Bolt Caps
K-9167-L Trip Lever
K-484 Trip Lever
1023457 Wax Ring/Hardware Kit
1265114 Connector Hose
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-13-2019 03:32 - US/CA
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Black Black™7
Page 2
16-1/2"
Memoirs® Stately Comfort Height
two-piece elongated 1.6 gpf toilet
K-3819
®
Technical Information
All product dimensions are nominal.
Two-piece, Floor-mountToilet type:
FloorWaste Outlet:
ElongatedBowl shape:
Flush type:
Water Consumption
AquaPiston
2-1/8" (54 mm)Trap passageway:
1.6 gpf (6 lpf)Full:
11-3/4" x 9-1/2" (298 mm x 241 mm)Water surface size:
5-3/8" (137 mm)Rim to water surface:
12" (305 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
instructions.
For back-to-back toilet installations: Use only a
45° double wye fitting.
®
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
Plumbing codes may require elongated toilets
and elongated, open-front seats in public
bathrooms.
Accessibility standards may require controls to
be located on the open side of the toilet.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-13-2019 03:32 - US/CA
