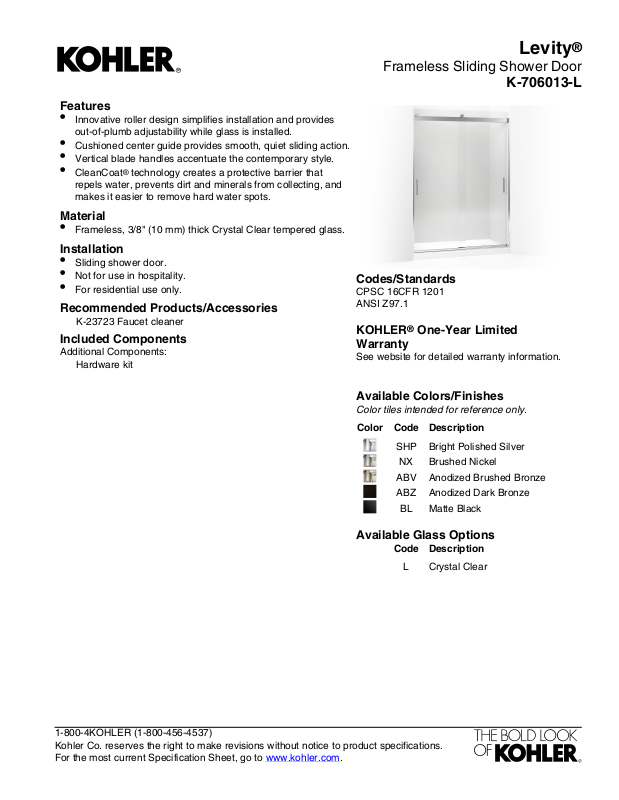

Page 1
Levity
Features
•
Innovative roller design simplifies installation and provides
out-of-plumb adjustability while glass is installed.
•
Cushioned center guide provides smooth, quiet sliding action.
•
Vertical blade handles accentuate the contemporary style.
•
CleanCoat® technology creates a protective barrier that
repels water, prevents dirt and minerals from collecting, and
makes it easier to remove hard water spots.
Material
•
Frameless, 3/8" (10 mm) thick Crystal Clear tempered glass.
Installation
•
Sliding shower door.
•
Not for use in hospitality.
•
For residential use only.
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components:
Hardware kit
Codes/Standards
CPSC 16CFR 1201
ANSI Z97.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SHP Bright Polished Silver
NX Brushed Nickel
ABV Anodized Brushed Bronze
ABZ Anodized Dark Bronze
BL Matte Black
Available Glass Options
Code Description
L Crystal Clear
®
Frameless Sliding Shower Door
K-706013-L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
Page 2
Levity
*24-9/16" (624 mm) Min
*27-9/16" (700 mm) Max
56-5/8" (1438 mm) Min
59-5/8" (1514 mm) Max
3-3/8"
(86 mm)
3-1/16"
(78 mm)
3-3/16"
(81 mm)
2-11/16"
(68 mm)
4"
(102 mm)
3"
(76 mm)
3" (76 mm)
*Walk-through
82"
(2083 mm)
*74-15/16"
(1903 mm)
Technical Information
All product dimensions are nominal.
Installation type: For shower base installation
Opening style: Sliding/Bypass
Opening Width -
Min:
56-5/8" (1438 mm)
Opening Width -
Max:
59-5/8" (1514 mm)
Walk-through - Min: 24-9/16" (624 mm)
Walk-through - Max: 27-9/16" (700 mm)
Base-To-Wall
Radius – Max:
1/2" (13 mm)
Glass thickness: 3/8" (10 mm)
Glass coating: CleanCoat
®
Notes
Install this product according to the installation
guide.
If replacing a shower door, the narrow wall
jamb design of this door may not cover the
existing shower door holes.
The vertical opening should be a minimum
of 84-1/2" (2146 mm) to allow for installation
clearance.
®
Frameless Sliding Shower Door
K-706013-L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
