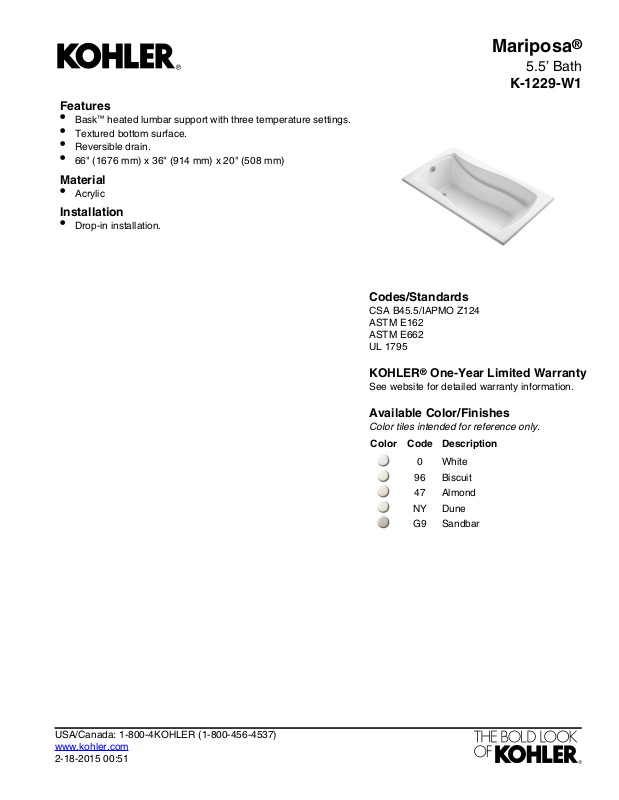

Page 1
Features
•
Bask™ heated lumbar support with three temperature settings.
•
Textured bottom surface.
•
Reversible drain.
•
66" (1676 mm) x 36" (914 mm) x 20" (508 mm)
Material
•
Acrylic
Installation
•
Drop-in installation.
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
Mariposa
5.5’ Bath
K-1229-W1
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:51
Page 2

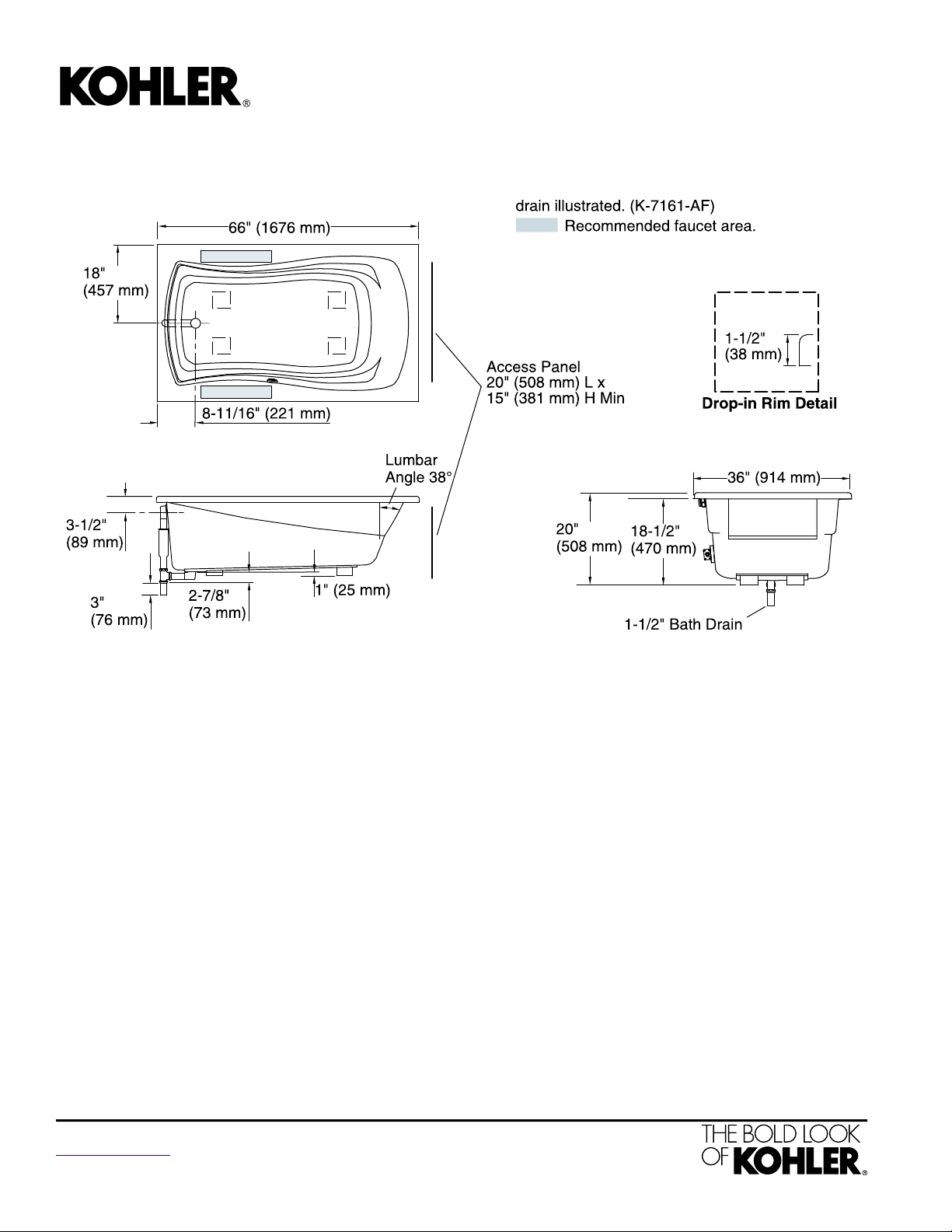

No change in measurements if connected with
Mariposa
5.5’ Bath
K-1229-W1
®
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD).
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
ReversibleDrain location:
48" x 24" (1219 mm x 610 mm)Basin area, bottom:
59" x 30" (1499 mm x 762 mm)Basin area, top:
65 lbs (29.5 kg)Weight:
39 lbs/ft² (190.4 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
67 gal (253.6 L)Water capacity:
Drop-in, 64" x 34" (1626 mm x 864 mm)Cutout:
Heated Surface: 120 V, .5 A, 60 Hz, 65 WElectrical rating:
Notes
Measure your actual product for roughing-in
details.
Install this product according to the installation
guide.
Locate a GFCI-protected 120 V, 15 A, grounded
electical outlet within 24" (610 mm) of the bath
junction box.
40" (1016 mm) cable is included.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:51
