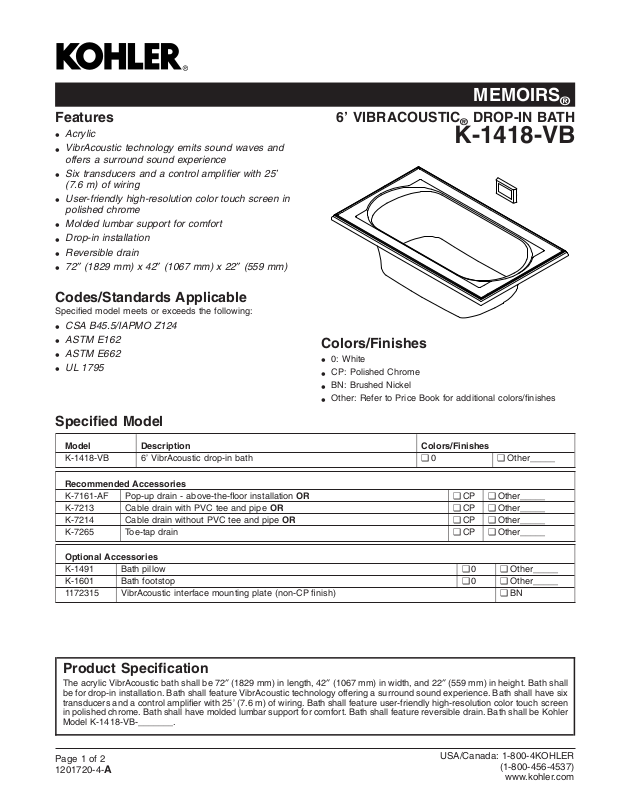

Page 1
MEMOIRS
®
Features
Acrylic
•
VibrAcoustic technology emits sound waves and
•
offers a surround sound experience
Six transducers and a control amplifier with 25’
•
(7.6 m) of wiring
User-friendly high-resolution color touch screen in
•
polished chrome
Molded lumbar support for comfort
•
Drop-in installation
•
Reversible drain
•
72″ (1829 mm) x 42″ (1067 mm) x 22″ (559 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
UL 1795
•
6’ VIBRACOUSTIC®DROP-IN BATH
K-1418-VB
Colors/Finishes
0: White
•
CP: Polished Chrome
•
BN: Brushed Nickel
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1418-VB 6’ VibrAcoustic drop-in bath ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Pop-up drain - above-the-floor installation OR ❑ CP ❑ Other_____
K-7213 Cable drain with PVC tee and pipe OR ❑ CP ❑ Other_____
K-7214 Cable drain without PVC tee and pipe OR ❑ CP ❑ Other_____
K-7265 Toe-tap drain ❑ CP ❑ Other_____
Optional Accessories
K-1491 Bath pillow ❑ 0 ❑ Other_____
K-1601 Bath footstop ❑ 0 ❑ Other_____
1172315 VibrAcoustic interface mounting plate (non-CP finish) ❑ BN
Product Specification
The acrylic VibrAcoustic bath shall be 72″ (1829 mm) in length, 42″ (1067 mm) in width, and 22″ (559 mm) in height. Bath shall
be for drop-in installation. Bath shall feature VibrAcoustic technology offering a surround sound experience. Bath shall have six
transducers and a control amplifier with 25’ (7.6 m) of wiring. Bath shall feature user-friendly high-resolution color touch screen
in polished chrome. Bath shall have molded lumbar support for comfort. Bath shall feature reversible drain. Bath shall be Kohler
Model K-1418-VB-_______.
Page 1 of 2
1201720-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Page 2
MEMOIRS
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well:
Basin area, bottom 48″ (1219 mm) x 27″ (686 mm)
Basin area, top 60″ (1524 mm) x 30″ (762 mm)
Weight 97 lbs (44 kg)
To overflow:
Water depth 16″ (406 mm)
Capacity 94 gal (355.8 L)
*Approximate measurements for comparison only.
Drop-in cutout: 70-1/2″ (1791 mm) x 40-1/2″ (1029 mm)
Amplifier/control: Power per channel
(rms) W
15 120 50/60z
VHz
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Amplifier/control: 120 V, 15 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Control amplifier fits 16″ (406 mm) center studs. A grounded
outlet within the wall framing must be within 24″ (610 mm) of
the planned control amplifier.
Cables are included, 25’ (7.6 m) each.
If installing a rim-mount faucet, make sure that there is no
interference with drain overflow before drilling any holes.
Consult local and national codes for minimum air gap
requirements if installing a spout on the faucet deck.
Floor support under this product must provide for a minimum
of 43 lbs/square foot (209.9 kg/square meter) loading.
Ensure that the bath, user interface, amplifier, and
transducers are functional before completing the installation.
No change in measurements if connected with
drain illustrated. (K-7161-AF)
42"
(1067 mm)
11-3/4"
(298 mm)
1-7/8"
(48 mm)
22"
(559 mm)
36" (914 mm)
3"
(76 mm)
20-1/8"
(511 mm)
1-1/16" (27 mm)
72" (1829 mm)
*10"
(254 mm)
1-1/2"
Bath Drain
1-7/8"
(48 mm)
Drop-in Rim
Detail
*24"
(610 mm)
Lumbar
Angle 25˚
*Recommended User
Interface Location
Product Diagram
5-5/8"
(143 mm)
14-1/2"
(368 mm)
Control Amplifier
7/8"
(22 mm)
3-1/2"
(89 mm)
User Interface
11-3/4"
(298 mm)
3"
(76 mm)
3-3/16"
(81 mm)
2-7/8"
(73 mm)
MEMOIRS®6’ VIBRACOUSTIC®DROP-IN BATH
Page2of2
