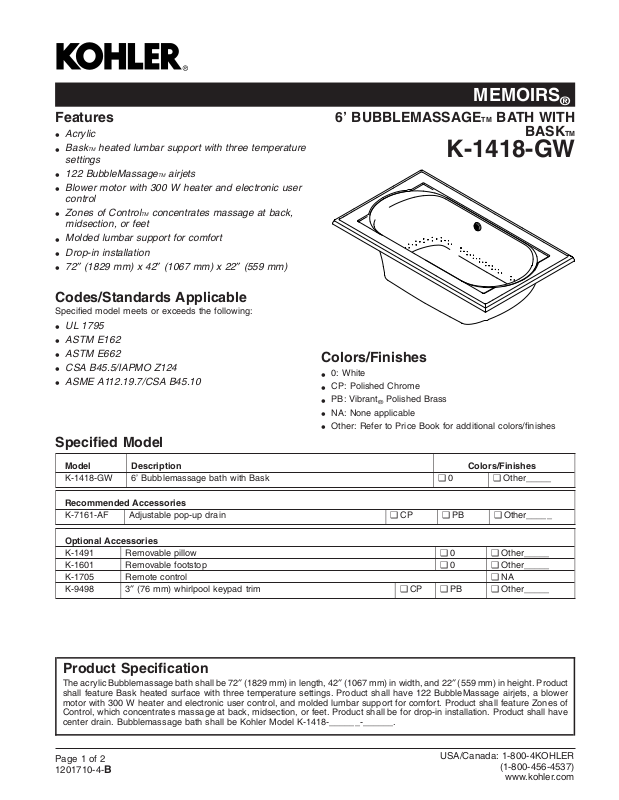

Page 1
MEMOIRS
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
122 BubbleMassage
•
Blower motor with 300 W heater and electronic user
•
control
Zones of Control
•
midsection, or feet
Molded lumbar support for comfort
•
Drop-in installation
•
72″ (1829 mm) x 42″ (1067 mm) x 22″ (559 mm)
•
TM airjets
TM concentrates massage at back,
Codes/Standards Applicable
Specified model meets or exceeds the following:
UL 1795
•
ASTM E162
•
ASTM E662
•
CSA B45.5/IAPMO Z124
•
ASME A112.19.7/CSA B45.10
•
Specified Model
6’ BUBBLEMASSAGETM BATH WITH
BASKTM
K-1418-GW
Colors/Finishes
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1418-GW 6’ Bubblemassage bath with Bask ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Adjustable pop-up drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1491 Removable pillow ❑ 0 ❑ Other_____
K-1601 Removable footstop ❑ 0 ❑ Other_____
K-1705 Remote control ❑ NA
K-9498 3″ (76 mm) whirlpool keypad trim ❑ CP ❑ PB ❑ Other_____
Product Specification
The acrylic Bubblemassage bath shall be 72″ (1829 mm) in length, 42″ (1067 mm) in width, and 22″ (559 mm) in height. Product
shall feature Bask heated surface with three temperature settings. Product shall have 122 BubbleMassage airjets, a blower
motor with 300 W heater and electronic user control, and molded lumbar support for comfort. Product shall feature Zones of
Control, which concentrates massage at back, midsection, or feet. Product shall be for drop-in installation. Product shall have
center drain. Bubblemassage bath shall be Kohler Model K-1418-______-______.
Page 1 of 2
1201710-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
MEMOIRS
®
Technical Information
Required Electrical Service
Fixture*:
Basin area:
Bathing well 48″ (1219 mm) x 27″ (686 mm)
Top area 60″ (1524 mm) x 30″ (762 mm)
Weight 156 lbs (70.8 kg)
To overflow:
Water depth 16″ (406 mm)
Capacity 94 gal (355.8 L)
* Approximate measurements for comparison only.
VHzA
Blower motor/Heated surface 220-240 50/60 5
Drop-in
cutout
70-1/2″ (1791 mm) x 40-1/2″ (1029 mm)
No change in measurements with drain
shown. (K-7161-AF)
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Blower motor/Heated
surface
220-240 V, 15 A, 50/60 Hz
Installation Notes
NOTICE: Relocation of the blower motor and check valve is
optional. Mount the blower motor and check valve together;
do not move one without the other. Two access panels are
required for blower motor and check valve relocation. Provide
one access panel at the blower motor/control location and
another at the heated surface location.
Install this product according to the installation guide.
Floor support under the bath must provide for a minimum of
54 lbs/square foot (261 kg/square meter) loading.
Locate a GFCI-protected 120 V, 15A, grounded duplex
electrical outlet within 24″ (610 mm) of the blower motor.
Blower Motor/Control Access
34" (864 mm) W x
15" (381 mm) H
11-3/4"
(298 mm)
42" (1067 mm)
22"
(559 mm)
2-7/8"
(73 mm)
3" (76 mm)
Product Diagram
MEMOIRS®6’ BUBBLEMASSAGETM BATH WITH BASKTM
Page2of2
1201710-4-
B
36" (914 mm)
1-1/16"
(27 mm)
72" (1829 mm)
3" (76 mm)
1-1/2" Bath Drain
1-7/8"
(48 mm)
20-1/8"
(511 mm)
