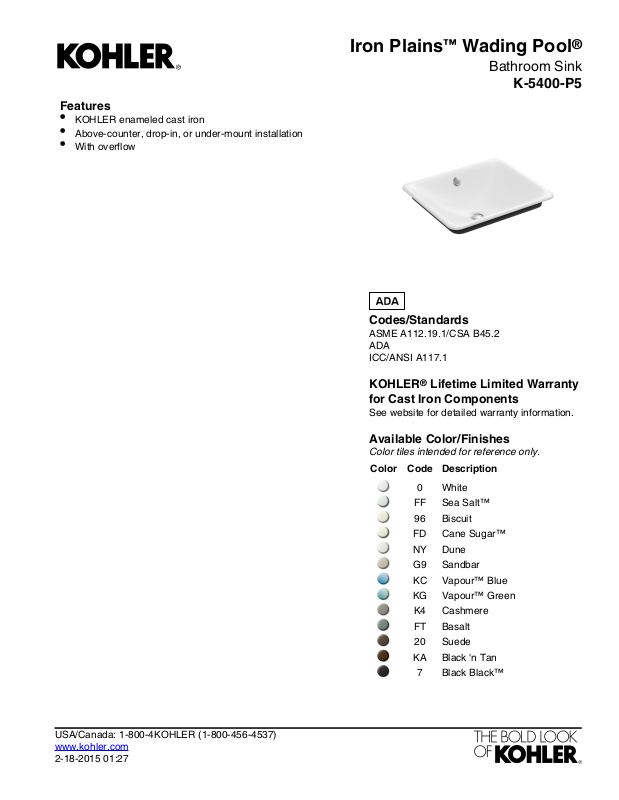

Page 1
Features
•
KOHLER enameled cast iron
•
Above-counter, drop-in, or under-mount installation
•
With overflow
Iron Plains™ Wading Pool
Bathroom Sink
K-5400-P5
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
®
KOHLER® Lifetime Limited Warranty
for Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Cane Sugar™FD
DuneNY
SandbarG9
Vapour™ BlueKC
Vapour™ GreenKG
CashmereK4
BasaltFT
Suede20
Black 'n TanKA
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:27
Page 2
14"
Iron Plains™ Wading Pool
Bathroom Sink
K-5400-P5
®
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Drop-In, Under-mount, Above-counterInstallation:
Bowl area (Only)
Template:
Length: 17-1/2" (445 mm)
Width: 14-3/4" (375 mm)
Bowl depth: 4-9/16" (116 mm)
Water depth: 2-15/16" (74 mm)
Drop-in, 1222632-7, required, included
Under-mount, 1222632-7, required,
included
Top-mount, 1222632-7, required, included
Clamp Accessory Pack 52047Under-mount kit:
Notes
Install this product according to the installation
guide.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:27
