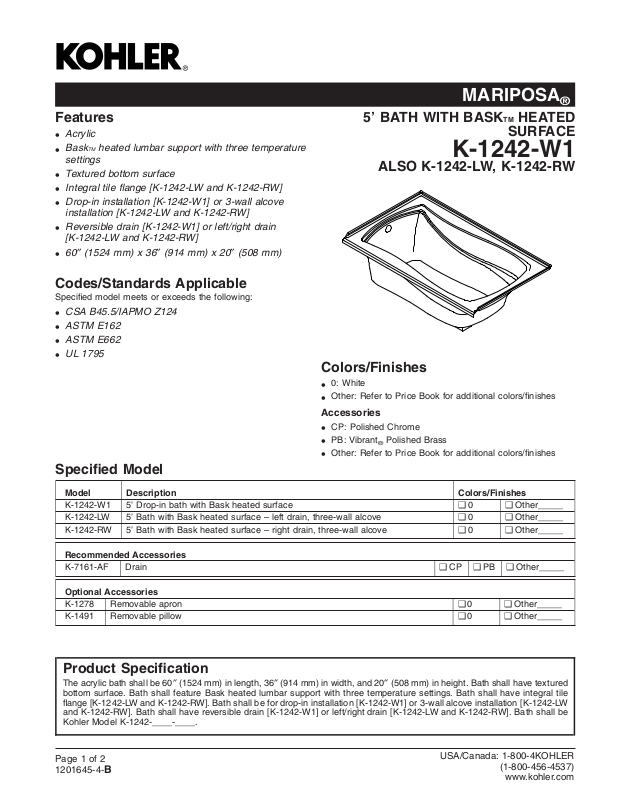

Page 1
MARIPOSA
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
Textured bottom surface
•
Integral tile flange [K-1242-LW and K-1242-RW]
•
Drop-in installation [K-1242-W1] or 3-wall alcove
•
installation [K-1242-LW and K-1242-RW]
Reversible drain [K-1242-W1] or left/right drain
•
[K-1242-LW and K-1242-RW]
60″ (1524 mm) x 36″ (914 mm) x 20″ (508 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
UL 1795
•
Specified Model
5’ BATH WITH BASKTM HEATED
SURFACE
K-1242-W1
ALSO K-1242-LW, K-1242-RW
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1242-W1 5’ Drop-in bath with Bask heated surface ❑ 0 ❑ Other_____
K-1242-LW 5’ Bath with Bask heated surface – left drain, three-wall alcove ❑ 0 ❑ Other_____
K-1242-RW 5’ Bath with Bask heated surface – right drain, three-wall alcove ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1278 Removable apron ❑ 0 ❑ Other_____
K-1491 Removable pillow ❑ 0 ❑ Other_____
Product Specification
The acrylic bath shall be 60″ (1524 mm) in length, 36″ (914 mm) in width, and 20″ (508 mm) in height. Bath shall have textured
bottom surface. Bath shall feature Bask heated lumbar support with three temperature settings. Bath shall have integral tile
flange [K-1242-LW and K-1242-RW]. Bath shall be for drop-in installation [K-1242-W1] or 3-wall alcove installation [K-1242-LW
and K-1242-RW]. Bath shall have reversible drain [K-1242-W1] or left/right drain [K-1242-LW and K-1242-RW]. Bath shall be
Kohler Model K-1242-____-____.
Page 1 of 2
1201645-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
MARIPOSA
®
Technical Information
Fixture*:
Bathing well:
Basin area, top 54″ (1372 mm) x 27″ (686 mm)
Basin area, bottom 46″ (1168 mm) x 24″ (610 mm)
Weight 62 lbs (28.1 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 63 gal (238.5 L)
* Approximate measurements for comparison only.
Drop-in cutout 58″ (1473 mm) x 34″ (864 mm)
Heater: W V HZ A
65 120 60 .5
Installation Notes
Install this product according to the installation guide.
Floor support under the bath must provide for a minimum of
41 lbs/square foot (200 kg/square meter) loading.
The apron must be installed before the finished floor and wall
materials are installed.
Locate a GFCI-protected 120 V, 15 A, grounded electrical
outlet within 24″ (610 mm) of the bath junction box.
40″ (1016 mm) cable is included.
18"
(457 mm)
1-1/4"
(32 mm)
3-1/2"
(89 mm)
8-11/16"
(221 mm)
3"
(76 mm)
60" (1524 mm)
2-7/8"
(73 mm)
1"
(25 mm)
Lumbar
Angle 33˚
No change in measurements if connected
with drain illustrated. (K-7161-AF)
Access Panel
20" (508 mm)
x 15" (381 mm)
Recommended faucet area
1-1/4"
(32 mm)
1/2" (13 mm)
R. Max.
Integral Flange
Detail
1-1/2"
(38 mm)
36" (914 mm)
20"
(508 mm)
1-1/2" Bath Drain
1-1/2"
(38 mm)
Drop-In
Rim Detail
Product Diagram
MARIPOSA®5’ BATH WITH BASKTM HEATED SURFACE
Page2of2
1201645-4-
B
