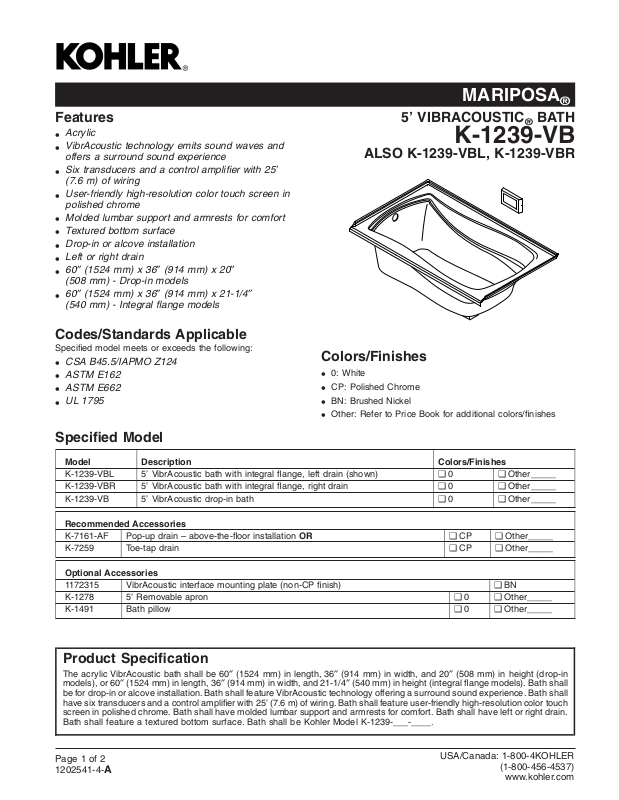

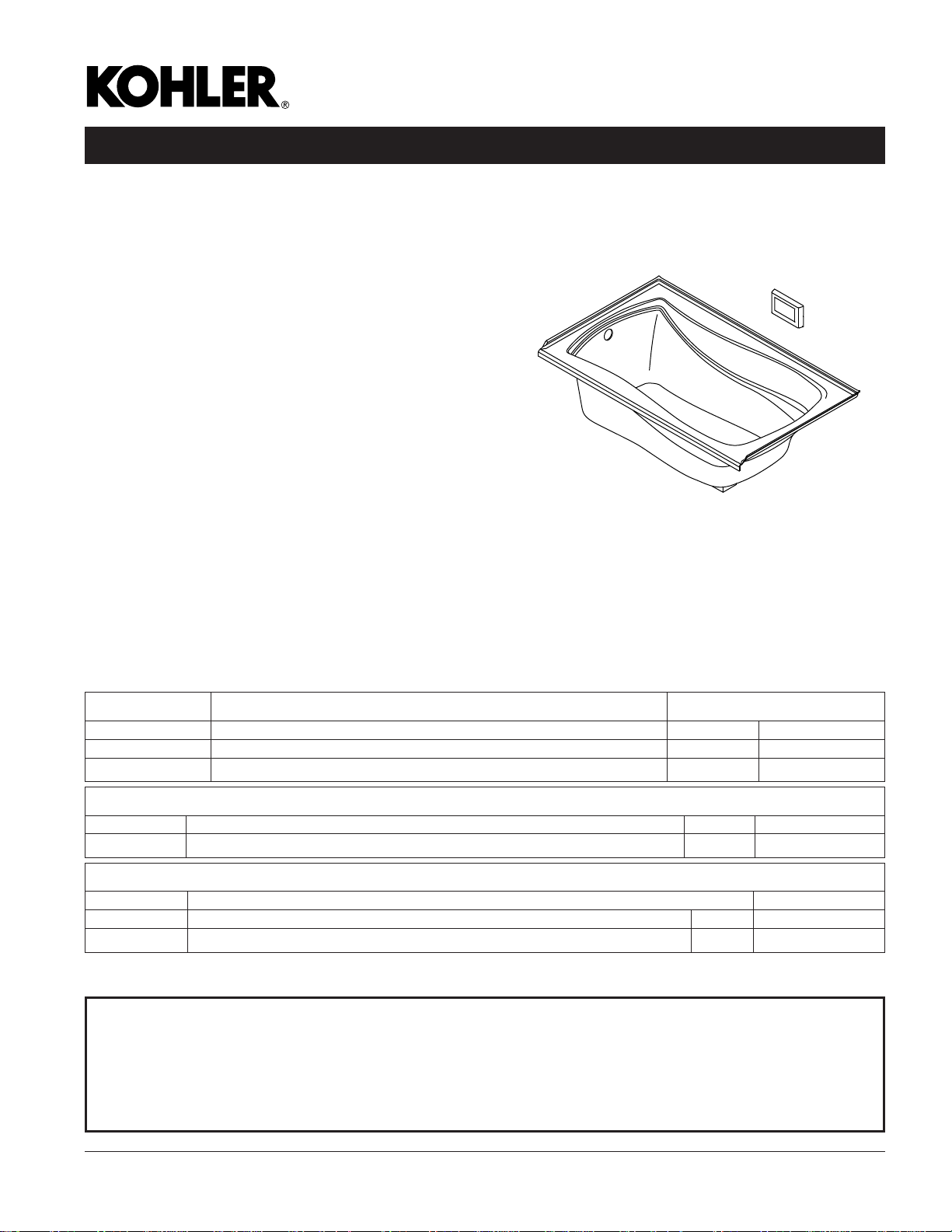

MARIPOSA
®
Features
Acrylic
•
VibrAcoustic technology emits sound waves and
•
offers a surround sound experience
Six transducers and a control amplifier with 25’
•
(7.6 m) of wiring
User-friendly high-resolution color touch screen in
•
polished chrome
Molded lumbar support and armrests for comfort
•
Textured bottom surface
•
Drop-in or alcove installation
•
Left or right drain
•
60″ (1524 mm) x 36″ (914 mm) x 20″
•
(508 mm) - Drop-in models
60″ (1524 mm) x 36″ (914 mm) x 21-1/4″
•
(540 mm) - Integral flange models
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
UL 1795
•
5’ VIBRACOUSTIC®BATH
K-1239-VB
ALSO K-1239-VBL, K-1239-VBR
Colors/Finishes
0: White
•
CP: Polished Chrome
•
BN: Brushed Nickel
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1239-VBL 5’ VibrAcoustic bath with integral flange, left drain (shown) ❑ 0 ❑ Other_____
K-1239-VBR 5’ VibrAcoustic bath with integral flange, right drain ❑ 0 ❑ Other_____
K-1239-VB 5’ VibrAcoustic drop-in bath ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Pop-up drain – above-the-floor installation OR ❑ CP ❑ Other_____
K-7259 Toe-tap drain ❑ CP ❑ Other_____
Optional Accessories
1172315 VibrAcoustic interface mounting plate (non-CP finish) ❑ BN
K-1278 5’ Removable apron ❑ 0 ❑ Other_____
K-1491 Bath pillow ❑ 0 ❑ Other_____
Product Specification
The acrylic VibrAcoustic bath shall be 60″ (1524 mm) in length, 36″ (914 mm) in width, and 20″ (508 mm) in height (drop-in
models), or 60″ (1524 mm) in length, 36″ (914 mm) in width, and 21-1/4″ (540 mm) in height (integral flange models). Bath shall
be for drop-in or alcove installation. Bath shall feature VibrAcoustic technology offering a surround sound experience. Bath shall
have six transducers and a control amplifier with 25’ (7.6 m) of wiring. Bath shall feature user-friendly high-resolution color touch
screen in polished chrome. Bath shall have molded lumbar support and armrests for comfort. Bath shall have left or right drain.
Bath shall feature a textured bottom surface. Bath shall be Kohler Model K-1239-___-____.
Page 1 of 2
1202541-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Page 2
MARIPOSA
Optional Accessories (Continued)
K-1601 Bath footstop ❑ 0 ❑ Other_____
®
Technical Information
Fixture*: *Approx. measurements for comparison only.
Basin area, bottom 46″ (1168 mm) x 24″ (610 mm)
Basin area, top 54″ (1372 mm) x 27″ (686 mm)
Weight 73 lbs (33.1 kg)
Water depth 14″ (356 mm) to overflow
Capacity 63 gal (238.5 L) to overflow
Amplifier/control: Power per channel V Hz
15 (rms) W 120 50/60z
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD): Amplifier/control, 120 V, 15 A,
50/60 Hz
18"
(457 mm)
8-11/16"
(221 mm)
60" (1524 mm)
*24"
(610 mm)
3-1/2"
(89 mm)
*10"
(254 mm)
Installation Notes
Install this product according to the installation guide.
Drop-in cutout: 58″ (1473 mm) x 34″ (864 mm)
Control amplifier fits 16″ (406 mm) center studs. A grounded
outlet within the wall framing must be within 24″ (610 mm) of
the planned control amplifier.
Cables are included, 25’ (7.6 m) each.
Floor support under bath must provide for a minimum of
41.6 lbs/square foot (203.1 kg/square meter) loading.
If installing a rim mount faucet, make sure any plumbing does
not interfere with the drain overflow and circulating system
before drilling any holes. Consult local and national codes for
minimum air gap requirements if installing a spout on the
faucet deck.
Ensure that the bath, user interface, amplifier, and
transducers are functional before completing the installation.
The apron must be installed before the finished floor and wall
materials are installed.
No changes in measurements if connected with
drain illustrated. (K-7161-AF)
Recommended Faucet Area
1-1/4"
(32 mm)
1/2"
(13 mm) R.
Integral Flange Detail
1-1/2"
(38 mm)
Drop-in Rim Detail
1-1/4"
(32 mm)
5-5/8"
(143 mm)
3-1/2"
(89 mm)
User Interface
14-1/2"
(368 mm)
11-3/4"
(298 mm)
Control Amplifier
1-1/2"
(38 mm)
7/8"
(22 mm)
36" (914 mm)
3-3/16"
(81 mm)
2-7/8"
3" (76 mm)
MARIPOSA®5’ VIBRACOUSTIC®BATH
Page2of2
1202541-4-
A
(73 mm)
1" (25 mm)
Lumbar
Angle 33˚
21-1/4"
(540 mm)
*Recommended User
Interface Location
Product Diagram
20"
(508 mm)
18-1/2"
(470 mm)
1-1/2"
Bath Drain
