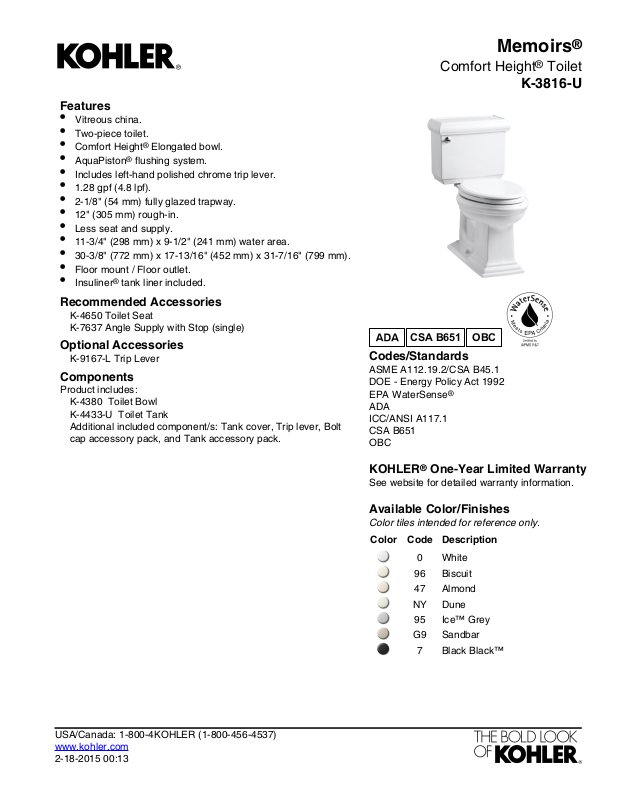

Page 1
Features
CSA B651
OBC
•
Vitreous china.
•
Two-piece toilet.
•
Comfort Height® Elongated bowl.
•
AquaPiston® flushing system.
•
Includes left-hand polished chrome trip lever.
•
1.28 gpf (4.8 lpf).
•
2-1/8" (54 mm) fully glazed trapway.
•
12" (305 mm) rough-in.
•
Less seat and supply.
•
11-3/4" (298 mm) x 9-1/2" (241 mm) water area.
•
30-3/8" (772 mm) x 17-13/16" (452 mm) x 31-7/16" (799 mm).
•
Floor mount / Floor outlet.
•
Insuliner® tank liner included.
Recommended Accessories
K-4650 Toilet Seat
K-7637 Angle Supply with Stop (single)
Memoirs
®
Comfort Height® Toilet
K-3816-U
Optional Accessories
K-9167-L Trip Lever
Components
Product includes:
K-4380 Toilet Bowl
K-4433-U Toilet Tank
Additional included component/s: Tank cover, Trip lever, Bolt
cap accessory pack, and Tank accessory pack.
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:13
Page 2
16-1/2"
Memoirs
®
Comfort Height® Toilet
K-3816-U
Technical Information
All product dimensions are nominal.
Two-pieceToilet type:
Elongated frontBowl shape:
AquaPistonFlush type:
2-1/8" (54 mm)Trap passageway:
Water Consumption
1.28 gpf (4.8 lpf)Full:
11-3/4" x 9-1/2" (298 mm x 241 mm)Water surface size:
6-1/8" (156 mm)Rim to water surface:
12" (305 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
guide.
For back-to-back toilet installations: Use only a
45° double wye fitting.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
The Model Plumbing Codes require the
installation of elongated open-front toilet seats
on public bathrooms.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:13
