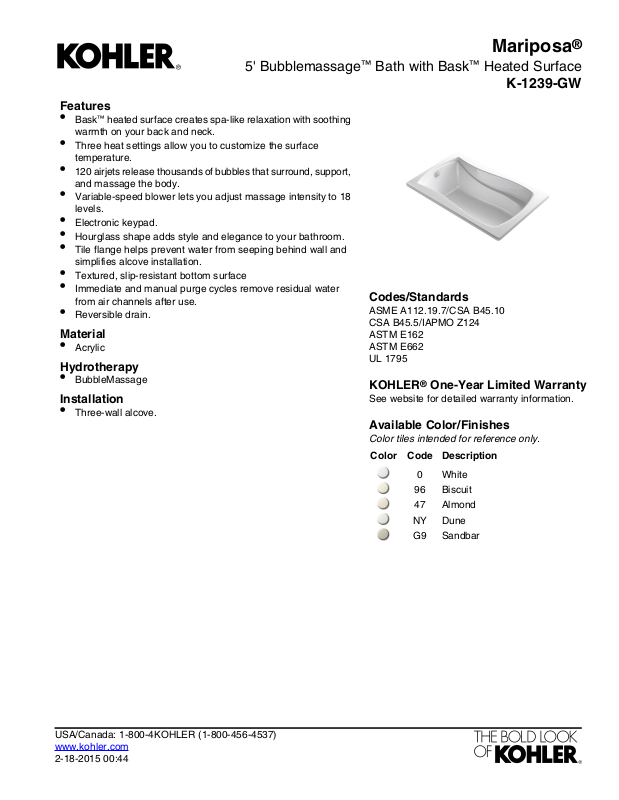

5' Bubblemassage™ Bath with Bask™ Heated Surface
Features
•
Bask™ heated surface creates spa-like relaxation with soothing
warmth on your back and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
120 airjets release thousands of bubbles that surround, support,
and massage the body.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Electronic keypad.
•
Hourglass shape adds style and elegance to your bathroom.
•
Tile flange helps prevent water from seeping behind wall and
simplifies alcove installation.
•
Textured, slip-resistant bottom surface
•
Immediate and manual purge cycles remove residual water
from air channels after use.
•
Reversible drain.
Material
•
Acrylic
Hydrotherapy
•
BubbleMassage
Installation
•
Three-wall alcove.
Mariposa
®
K-1239-GW
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:44
White0
Biscuit96
Almond47
DuneNY
SandbarG9
Page 2
Mariposa
®
5' Bubblemassage™ Bath with Bask™ Heated Surface
K-1239-GW
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzBlower, Heated
Surface:
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
ReversibleDrain location:
46" x 24" (1168 mm x 610 mm)Basin area, bottom:
54" x 27" (1372 mm x 686 mm)Basin area, top:
106 lbs (48.1 kg)Weight:
44 lbs/ft² (214.8 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
63 gal (238.5 L)Water capacity:
Drop-in, 58" x 34" (1473 mm x 864 mm)Cutout:
Electrical rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
Notes
Install this product according to the installation
guide. Locate a GFCI-protected 120 V, 15 A,
grounded duplex electrical outlet within 24" (610
mm) of the blower motor.
NOTICE: Relocation of the blower motor and
check valve is optional. Relocate the blower motor
and check valve together; do not move one
without the other. For drop-in models, two access
panels are required; one for blower motor and
check valve, and one for Bask heated surface.
For apron models, one additional access panel
is required at the heated surface location.
If used, the bath with optional apron must be
installed before the finished floor and wall
materials are installed.
If installing a rim-mount faucet, make sure there
is no interference with drain overflow and
circulating system before drilling any holes.
Consult local and national codes for minimum air
gap requirements if installing a spout on the
faucet deck.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:44
