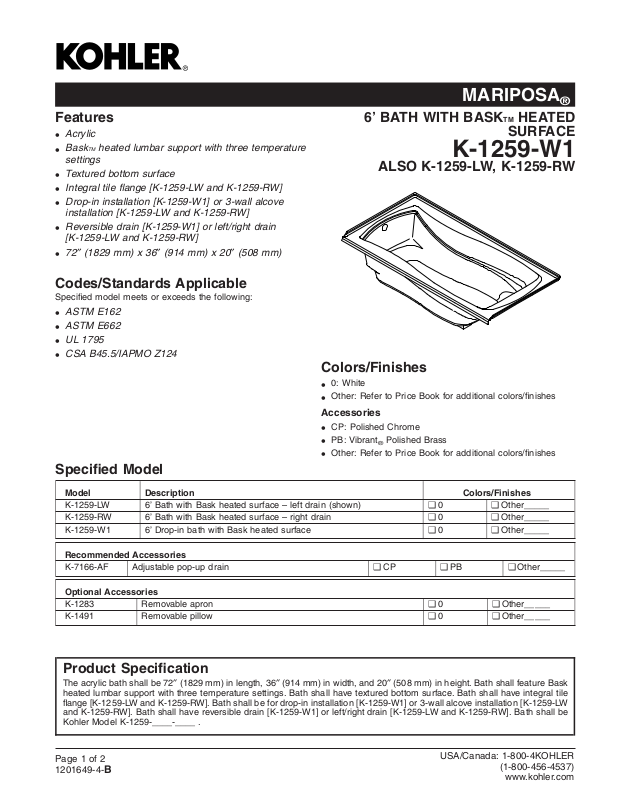

MARIPOSA
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
Textured bottom surface
•
Integral tile flange [K-1259-LW and K-1259-RW]
•
Drop-in installation [K-1259-W1] or 3-wall alcove
•
installation [K-1259-LW and K-1259-RW]
Reversible drain [K-1259-W1] or left/right drain
•
[K-1259-LW and K-1259-RW]
72″ (1829 mm) x 36″ (914 mm) x 20″ (508 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASTM E162
•
ASTM E662
•
UL 1795
•
CSA B45.5/IAPMO Z124
•
Specified Model
6’ BATH WITH BASKTM HEATED
SURFACE
K-1259-W1
ALSO K-1259-LW, K-1259-RW
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1259-LW 6’ Bath with Bask heated surface – left drain (shown) ❑ 0 ❑ Other_____
K-1259-RW 6’ Bath with Bask heated surface – right drain ❑ 0 ❑ Other_____
K-1259-W1 6’ Drop-in bath with Bask heated surface ❑ 0 ❑ Other_____
Recommended Accessories
K-7166-AF Adjustable pop-up drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1283 Removable apron ❑ 0 ❑ Other_____
K-1491 Removable pillow ❑ 0 ❑ Other_____
Product Specification
The acrylic bath shall be 72″ (1829 mm) in length, 36″ (914 mm) in width, and 20″ (508 mm) in height. Bath shall feature Bask
heated lumbar support with three temperature settings. Bath shall have textured bottom surface. Bath shall have integral tile
flange [K-1259-LW and K-1259-RW]. Bath shall be for drop-in installation [K-1259-W1] or 3-wall alcove installation [K-1259-LW
and K-1259-RW]. Bath shall have reversible drain [K-1259-W1] or left/right drain [K-1259-LW and K-1259-RW]. Bath shall be
Kohler Model K-1259-____-____ .
Page 1 of 2
1201649-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
MARIPOSA
®
Technical Information
Fixture*:
Bathing well:
Basin area, bottom 50″ (1270 mm) x 24″ (610 mm)
Basin area, top 65″ (1651 mm) x 27″ (686 mm)
Weight 77 lbs (35 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 72 gal (272.5 L)
* Approximate measurements for comparison only.
Heater: W V HZ A
65 120 60 .5
Installation Notes
Install this product according to the installation guide.
Floor support under the bath must provide for a minimum of
39.1 lbs/square foot (190.7 kg/square meter) loading.
If used, the optional apron must be installed before the
finished floor and wall materials are installed.
Locate a GFCI-protected 120 V, 15 A, grounded electrical
outlet within 24″ (610 mm) of the bath junction box.
40″ (1016 mm) cable is included.
18"
(457 mm)
1-1/2"
(38 mm)
3-1/2"
(89 mm)
10-1/4"
(260 mm)
66" (1676 mm)
Lumbar
Angle 42˚
18-1/2"
(470 mm)
Access Panel
20" (508 mm) W x
15" (381 mm) H Min
20"
(508 mm)
21-1/4"
(540 mm)
No change in measurements with drain
shown. (K-7166-AF)
Recommended faucet area
1-1/4"
(32 mm)
1/2" (13 mm) R.
Integral
35-7/8"
(911 mm)
2-7/8"
(73 mm)
1" (25 mm)
3" (76 mm)
1-1/2" Bath Drain
Product Diagram
MARIPOSA®6’ BATH WITH BASKTM HEATED SURFACE
Page2of2
1201649-4-
