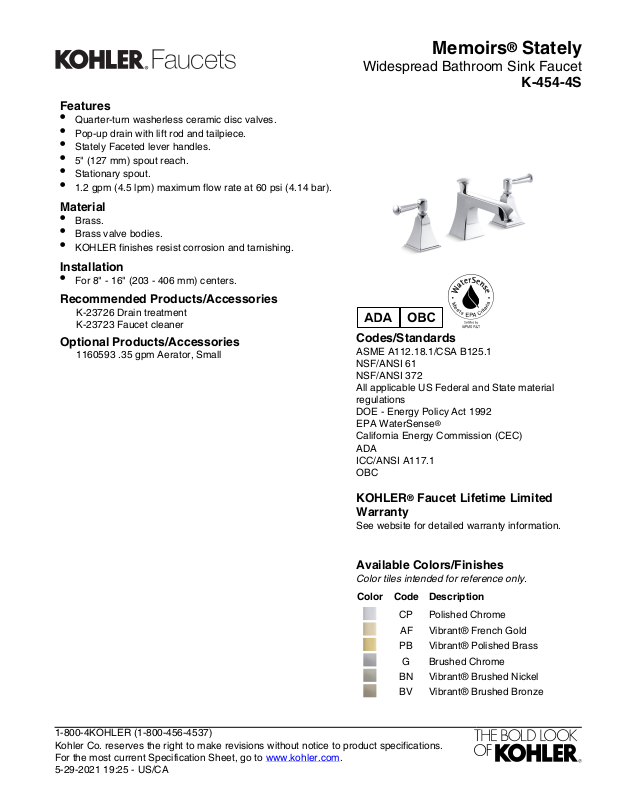

Page 1
Memoirs® Stately
Features
•
Quarter-turn washerless ceramic disc valves.
•
Pop-up drain with lift rod and tailpiece.
•
Stately Faceted lever handles.
•
5" (127 mm) spout reach.
•
Stationary spout.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
Brass.
•
Brass valve bodies.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For 8" - 16" (203 - 406 mm) centers.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Optional Products/Accessories
1160593 .35 gpm Aerator, Small
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
AF Vibrant® French Gold
PB Vibrant® Polished Brass
G Brushed Chrome
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
Widespread Bathroom Sink Faucet
K-454-4S
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 19:25 - US/CA
Page 2
Memoirs® Stately
Ø 2-1/4"
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: Yes
Spout:
Spout reach: 5" (127 mm)
Notes
Install this product according to the installation
guide.
ADA compliant for handles only.
ADA, OBC compliant when installed to the
specific requirements of these regulations.
Widespread Bathroom Sink Faucet
K-454-4S
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 19:25 - US/CA
