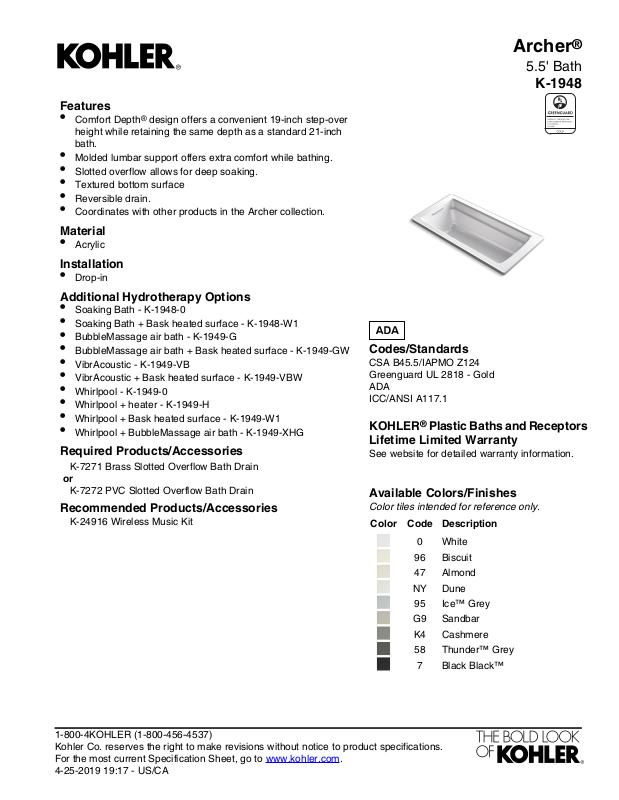

Page 1
Features
•
Comfort Depth® design offers a convenient 19-inch step-over
height while retaining the same depth as a standard 21-inch
bath.
•
Molded lumbar support offers extra comfort while bathing.
•
Slotted overflow allows for deep soaking.
•
Textured bottom surface
•
Reversible drain.
•
Coordinates with other products in the Archer collection.
Material
•
Acrylic
Installation
•
Drop-in
Additional Hydrotherapy Options
•
Soaking Bath - K-1948-0
•
Soaking Bath + Bask heated surface - K-1948-W1
•
BubbleMassage air bath - K-1949-G
•
BubbleMassage air bath + Bask heated surface - K-1949-GW
•
VibrAcoustic - K-1949-VB
•
VibrAcoustic + Bask heated surface - K-1949-VBW
•
Whirlpool - K-1949-0
•
Whirlpool + heater - K-1949-H
•
Whirlpool + Bask heated surface - K-1949-W1
•
Whirlpool + BubbleMassage air bath - K-1949-XHG
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-24916 Wireless Music Kit
Archer
®
5.5' Bath
K-1948
Codes/Standards
CSA B45.5/IAPMO Z124
Greenguard UL 2818 - Gold
ADA
ICC/ANSI A117.1
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 19:17 - US/CA
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
CashmereK4
Thunder™ Grey58
Black Black™7
Page 2
1-1/2"
Archer
5.5' Bath
K-1948
®
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
EndDrain location:
50-3/8" x 19-5/8" (1280 mm x 498 mm)Basin area, bottom:
57-5/16" x 24-1/16" (1456 mm x 611 mm)Basin area, top:
66 lbs (29.9 kg)Weight:
44 lbs/ft² (214.8 kg/m²)Minimum floor load:
15-5/16" (389 mm)Water depth:
66 gal (249.8 L)Water capacity:
Cutout:
Drop-in, 64-1/2" x 30-1/2" (1638 mm x
775 mm)
2-3/16" (55 mm)Minimum flat for door:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
This product is designed for drop-in installation
only. It is not suited for use in a three-wall alcove
with an overhead shower.
ADA compliant when installed to the specific
requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 19:17 - US/CA
