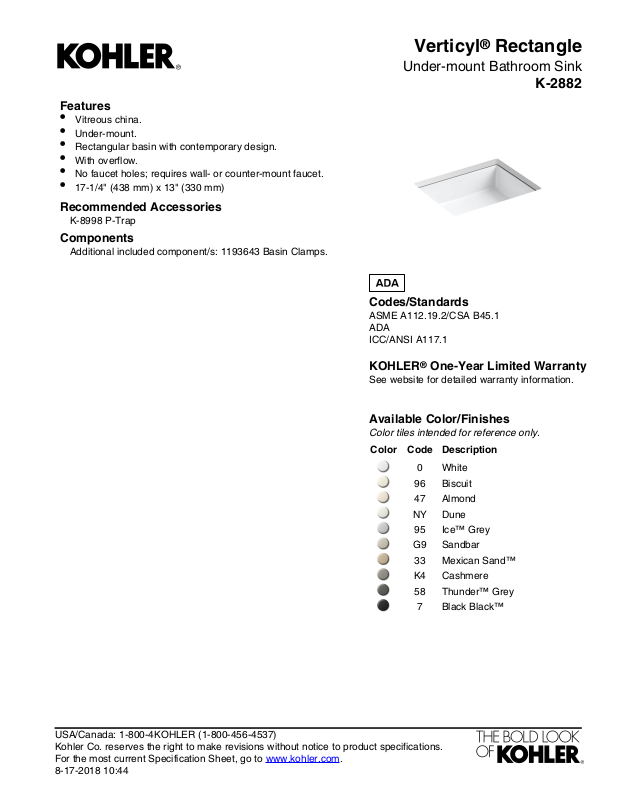

Page 1
Features
•
Vitreous china.
•
Under-mount.
•
Rectangular basin with contemporary design.
•
With overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
17-1/4" (438 mm) x 13" (330 mm)
Recommended Accessories
K-8998 P-Trap
Components
Additional included component/s: 1193643 Basin Clamps.
Verticyl® Rectangle
Under-mount Bathroom Sink
K-2882
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 10:44
Page 2
Verticyl® Rectangle
Under-mount Bathroom Sink
K-2882
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only):
Length: 17-1/4" (438 mm)
Width: 13" (330 mm)
Water depth: 3-1/8" (79 mm)
1-3/4" (44 mm)Drain hole:
1109226-7, required, not includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 10:44
