Features
•
Anodized aluminum construction with a durable rust-free and
chip-free finish.
•
Three adjustable glass shelves.
•
Full-overlay mirrored door.
•
Mirrored interior.
•
Two-way adjustable hinges with 108-degree opening capability
for easy cabinet access.
•
Can be installed with left- or right-hand swing.
•
Includes mounting hardware for surface or recessed installation.
•
Requires K-99012 side mirror kit (sold separately) for surface
mount installation.
Material
•
Anodized aluminum.
Recommended Accessories
K-99012 Side Mirror Kit
K-99661-15 Medicine Cabinet Surround
K-99662-15 Medicine Cabinet Surround
K-99663-15 Medicine Cabinet Surround
Verdera
™
Mirrored Cabinet
K-99000
Codes/Standards
None Applicable
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:25
Page 2
30"
Verdera
™
Mirrored Cabinet
K-99000

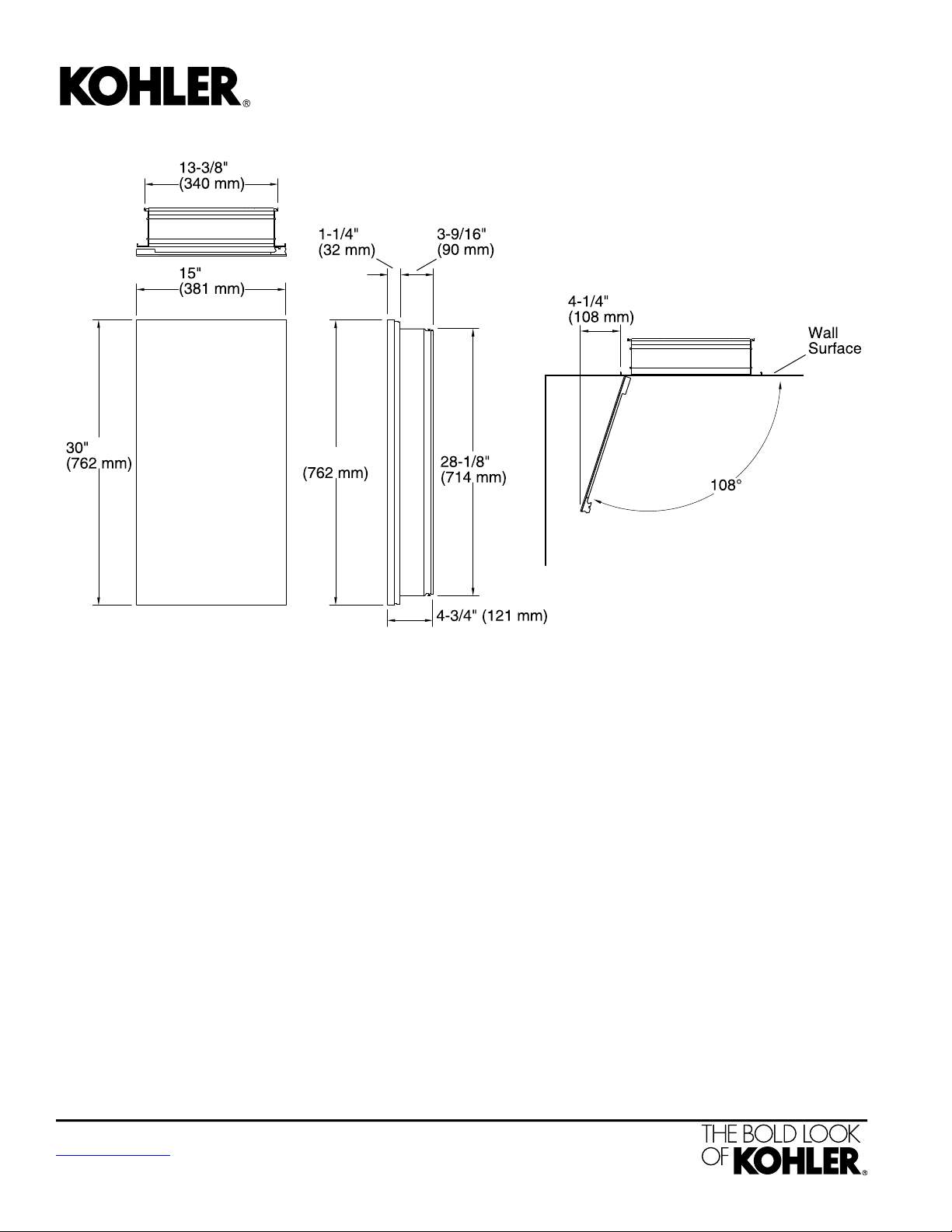

Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
CAUTION: Risk of electric shock. Electrical wiring
may need to be relocated.
For recess mounting, the wall cavity must be
framed and cabinet secured to framing studs.
Reroute any electrical wires or water supply
piping from the wall cavity. If you encounter drain
or vent piping, or if your wall is load-bearing,
consult a professional before proceeding.
CAUTION: Risk of property damage. For surface
mounting, use anchors (not provided) rated for
the loaded weight of this product. Refer to the
anchor manufacturer’s instructions.
When determining the height of the cabinet,
ensure the mirrored door will clear all obstacles
(such as a faucet). A minimum distance of 3" (76
mm) is required.
This cabinet is designed for either right or left
door swing. Check for obstructions.
