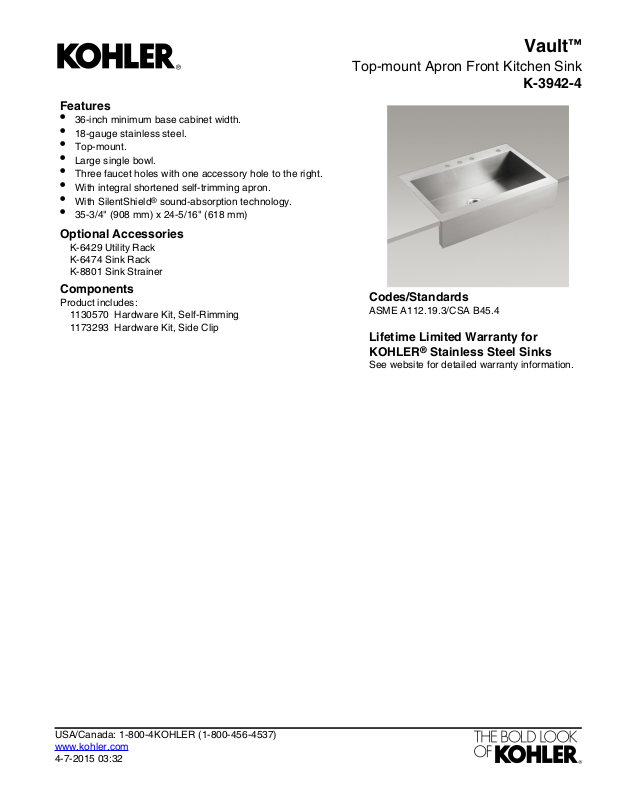

Page 1
Features
•
36-inch minimum base cabinet width.
•
18-gauge stainless steel.
•
Top-mount.
•
Large single bowl.
•
Three faucet holes with one accessory hole to the right.
•
With integral shortened self-trimming apron.
•
With SilentShield® sound-absorption technology.
•
35-3/4" (908 mm) x 24-5/16" (618 mm)
Optional Accessories
K-6429 Utility Rack
K-6474 Sink Rack
K-8801 Sink Strainer
Vault
™
Top-mount Apron Front Kitchen Sink
K-3942-4
Components
Product includes:
1130570 Hardware Kit, Self-Rimming
1173293 Hardware Kit, Side Clip
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:32
Page 2
35-3/4" (908 mm)
Vault
™
Top-mount Apron Front Kitchen Sink
K-3942-4
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mountInstallation:
36" (914 mm)Min. base cabinet
width:
Bowl area (Only)
Template:
Length: 32-1/2" (826 mm)
Width: 17-3/16" (437 mm)
Bowl depth: 9" (229 mm)
4Number of deck holes:
1-7/16" (37 mm)Faucet hole(s):
3-5/8" (92 mm)Drain hole:
Top-mount, 1166717-7, required, included
Apron Front, 1178341, required, included
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:32
