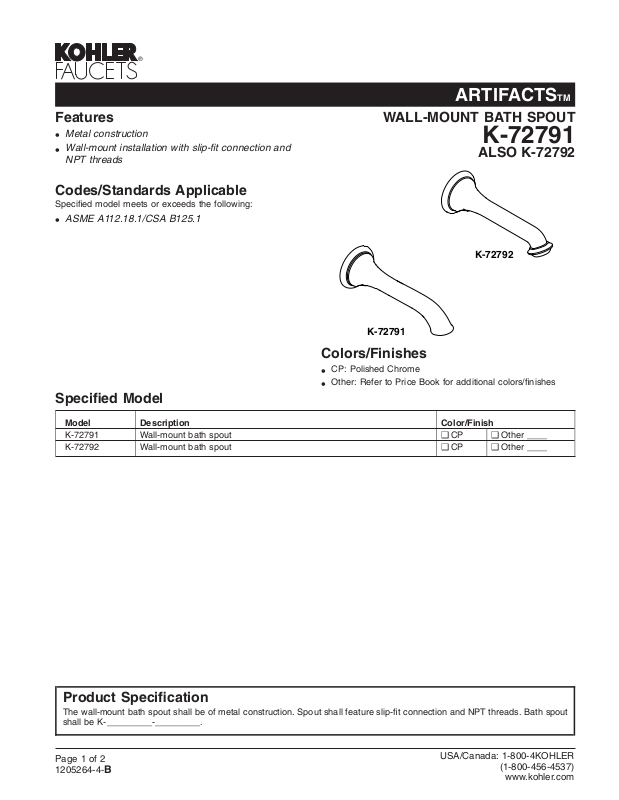

ARTIFACTSTM
Features
Metal construction
•
Wall-mount installation with slip-fit connection and
•
NPT threads
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
WALL-MOUNT BATH SPOUT
K-72791
ALSO K-72792
K-72792
K-72791
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Color/Finish
K-72791 Wall-mount bath spout ❑ CP ❑ Other ____
K-72792 Wall-mount bath spout ❑ CP ❑ Other ____
Product Specification
The wall-mount bath spout shall be of metal construction. Spout shall feature slip-fit connection and NPT threads. Bath spout
shall be K-_________-_________.
Page 1 of 2
1205264-4-
USA/Canada: 1-800-4KOHLER
B
(1-800-456-4537)
www.kohler.com
Page 2
ARTIFACTSTM
Installation Notes
Install this product according to the installation guide.
For slip-fit spout, 5/8" OD tube
must extend 2-1/2" (64 mm)
beyond finished wall.
For threaded spout, 1/2" NPT pipe
must extend 1-3/4" (44 mm)
beyond finished wall.
For slip-fit spout, 5/8" OD tube
must extend 2-1/2" (64 mm)
beyond finished wall.
For threaded spout, 1/2" NPT pipe
must extend 1-3/4" (44 mm)
beyond finished wall.
8" (203 mm)
K-72791
8-7/16" (214 mm)
K-72792
Water supply tube
must be centered
with the hole.
Ø 2" (51 mm)
Max Hole in Wall
Water Supply Tube
ARTIFACTSTM WALL-MOUNT BATH SPOUT
Page2of2
1205264-4-
B
