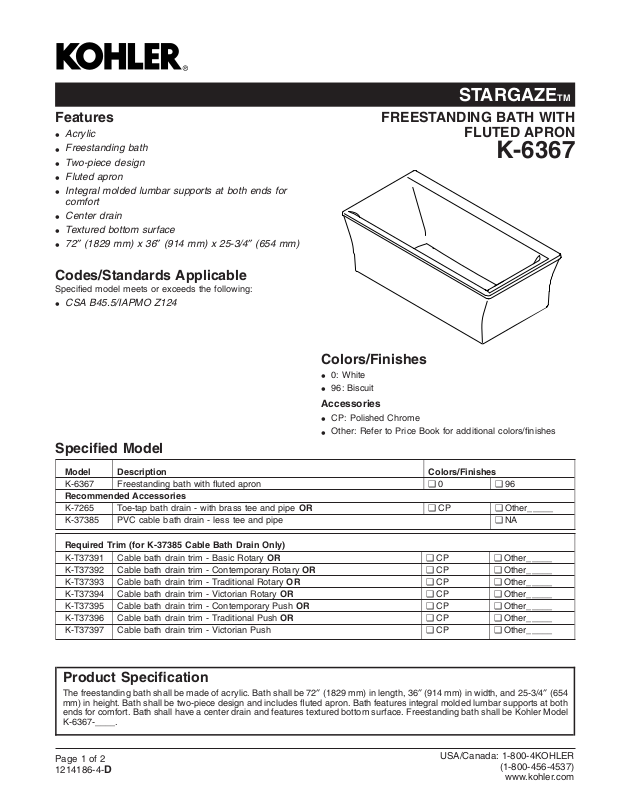

Page 1
STARGAZETM
Features
Acrylic
•
Freestanding bath
•
Two-piece design
•
Fluted apron
•
Integral molded lumbar supports at both ends for
•
comfort
Center drain
•
Textured bottom surface
•
72″ (1829 mm) x 36″ (914 mm) x 25-3/4″ (654 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
Specified Model
FREESTANDING BATH WITH
FLUTED APRON
K-6367
Colors/Finishes
0: White
•
96: Biscuit
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-6367 Freestanding bath with fluted apron ❑ 0 ❑ 96
Recommended Accessories
K-7265 Toe-tap bath drain - with brass tee and pipe OR ❑ CP ❑ Other_____
K-37385 PVC cable bath drain - less tee and pipe ❑ NA
Required Trim (for K-37385 Cable Bath Drain Only)
K-T37391 Cable bath drain trim - Basic Rotary OR ❑ CP ❑ Other_____
K-T37392 Cable bath drain trim - Contemporary Rotary OR ❑ CP ❑ Other_____
K-T37393 Cable bath drain trim - Traditional Rotary OR ❑ CP ❑ Other_____
K-T37394 Cable bath drain trim - Victorian Rotary OR ❑ CP ❑ Other_____
K-T37395 Cable bath drain trim - Contemporary Push OR ❑ CP ❑ Other_____
K-T37396 Cable bath drain trim - Traditional Push OR ❑ CP ❑ Other_____
K-T37397 Cable bath drain trim - Victorian Push ❑ CP ❑ Other_____
Product Specification
The freestanding bath shall be made of acrylic. Bath shall be 72″ (1829 mm) in length, 36″ (914 mm) in width, and 25-3/4″ (654
mm) in height. Bath shall be two-piece design and includes fluted apron. Bath features integral molded lumbar supports at both
ends for comfort. Bath shall have a center drain and features textured bottom surface. Freestanding bath shall be Kohler Model
K-6367-____.
Page 1 of 2
1214186-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
STARGAZETM
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 27-1/2″ (699 mm) x 61″ (1549 mm)
Weight 152 lbs (68.9 kg)
To overflow:
Water depth 17″ (432 mm)
Capacity 90 gal (341 L)
* Approximate measurements for comparison only.
24-1/2″ (622 mm) x 50″ (1270 mm)
Installation Notes
Install this product according to the installation guide.
CAUTION: Risk of personal injury. Obtain
sufficient help to carefully lift or move the bath.
This bath is designed for freestanding installation only.
Do not support the load weight of the bath by the rim.
Floor support under bath must provide for a minimum of 80
lbs/square foot (390.6 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
If installing a rim-mount faucet, make sure there is no
interference with the drain overflow before drilling any holes.
Consult local and national codes for minimum air gap
requirements if installing a spout on the faucet deck.
No change in measurements if connected
with drain illustrated. (K-7265)
5-9/16"
(141 mm)
72" (1829 mm)
25-3/4"
(654 mm)
3"
(76 mm)
36" (914 mm)
1" (25 mm)
Lumbar
Angle 21˚
19-5/16"
(491 mm)
4"
(102 mm)
17"
(432 mm)
Recommended faucet area.
Minimum 1/2" plywood backer
board required.
36" (914 mm)
4-1/2"
(114 mm)
Product Diagram
STARGAZETM FREESTANDING BATH WITH FLUTED APRON
Page2of2
