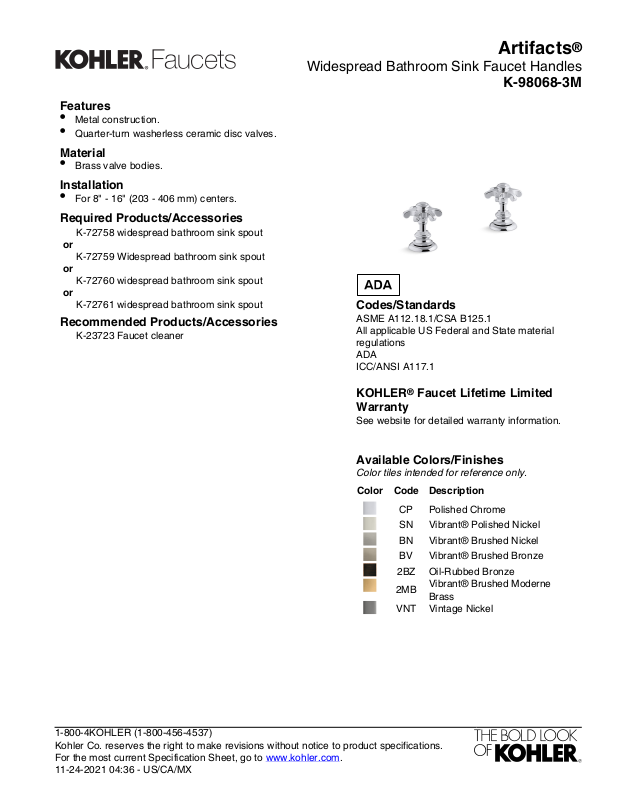

Page 1
Artifacts
Features
•
Metal construction.
•
Quarter-turn washerless ceramic disc valves.
Material
•
Brass valve bodies.
Installation
•
For 8" - 16" (203 - 406 mm) centers.
Required Products/Accessories
K-72758 widespread bathroom sink spout
or
K-72759 Widespread bathroom sink spout
or
K-72760 widespread bathroom sink spout
or
K-72761 widespread bathroom sink spout
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
All applicable US Federal and State material
regulations
ADA
ICC/ANSI A117.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
2BZ Oil-Rubbed Bronze
2MB
Vibrant® Brushed Moderne
Brass
VNT Vintage Nickel
®
Widespread Bathroom Sink Faucet Handles
K-98068-3M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-24-2021 04:36 - US/CA/MX
Page 2
Artifacts
8" (203 mm) Min
16" (406 mm) Max
1/16" (2 mm) Min
3/4" (19 mm) Max
with Dished Washer
8-3/4"
(222 mm)
3/4" (19 mm) Min
1-7/16" (37 mm) Max
Less Dished Washer
1-3/8"
(35 mm)
3-9/16"
(90 mm)
Ø 1-1/8"
(29 mm)
Ø 2-1/4"
(57 mm)
3/8"
Compression Fittings
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
ADA compliant for handles only.
ADA compliant when installed to the specific
requirements of these regulations.
®
Widespread Bathroom Sink Faucet Handles
K-98068-3M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-24-2021 04:36 - US/CA/MX
