Kohler KOH19274 Specifications

Download

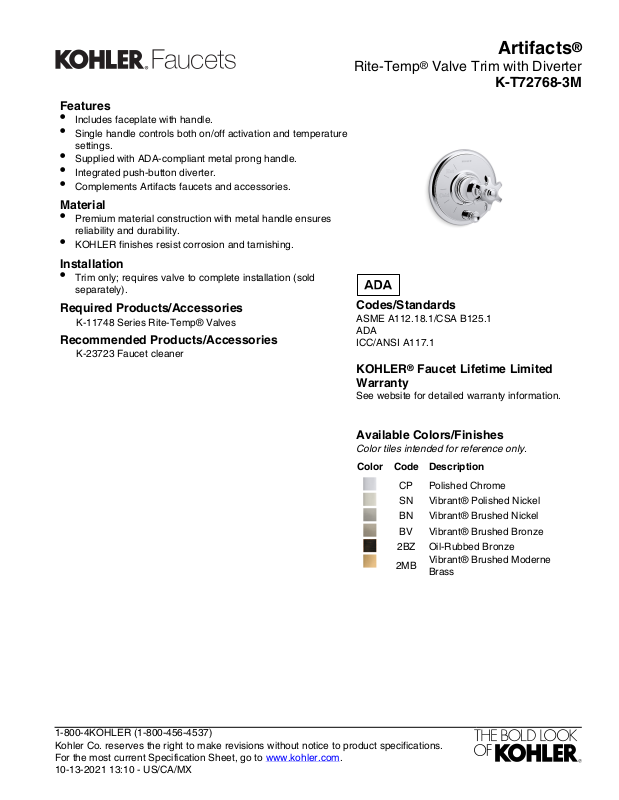

Page 1

Artifacts

Features

•

Includes faceplate with handle.

•

Single handle controls both on/off activation and temperature settings.

•

Supplied with ADA-compliant metal prong handle.

•

Integrated push-button diverter.

•

Complements Artifacts faucets and accessories.

Material

•

Premium material construction with metal handle ensures reliability and durability.

•

KOHLER finishes resist corrosion and tarnishing.

Installation

•

Trim only; requires valve to complete installation (sold separately).

Required Products/Accessories

K-11748 Series Rite-Temp® Valves

Recommended Products/Accessories

K-23723 Faucet cleaner

Codes/Standards

ASME A112.18.1/CSA B125.1 ADA ICC/ANSI A117.1

KOHLER® Faucet Lifetime Limited Warranty

See website for detailed warranty information.

Available Colors/Finishes

Color tiles intended for reference only.

Color Code Description

CP Polished Chrome SN Vibrant® Polished Nickel BN Vibrant® Brushed Nickel BV Vibrant® Brushed Bronze

2BZ Oil-Rubbed Bronze

2MB

Vibrant® Brushed Moderne Brass

Rite-Temp® Valve Trim with Diverter

K-T72768-3M

1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com. 10-13-2021 13:10 - US/CA/MX

Page 2

Artifacts

Ø 6-9/16" (167 mm)

5-1/4" (133 mm)

Ø 3" (76 mm)

L of Valve Inlet

If 3-1/2" (89 mm) to 4-1/2" (114 mm) use

deep roughing-in kit.

Technical Information

All product dimensions are nominal.

Notes

Install this product according to the installation instructions.

Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.

Install straight pipe or tube drop of 7" (178 mm) to 18" (457 mm) with single elbow between the valve and wall-mount spout.

ADA compliant when installed to the specific requirements of these regulations.

Rite-Temp® Valve Trim with Diverter

K-T72768-3M
