Page 1
Features
•
18-inch minimum base cabinet width.
•
19-gauge stainless steel.
•
Top-mount.
•
Single bowl.
•
7-inch depth.
•
Two faucet holes.
•
With SilentShield® sound-absorption technology.
•
15" (381 mm) x 15" (381 mm)
Optional Accessories
K-8801 Sink Strainer
1177161 Installation Clip Kit
Components
Product includes:
1177160 Hardware Kit; Top-mount
Top-mount Bar Sink
Codes/Standards
ASME A112.19.3/CSA B45.4
ADA
ICC/ANSI A117.1
Toccata
K-3349-2
™
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:32

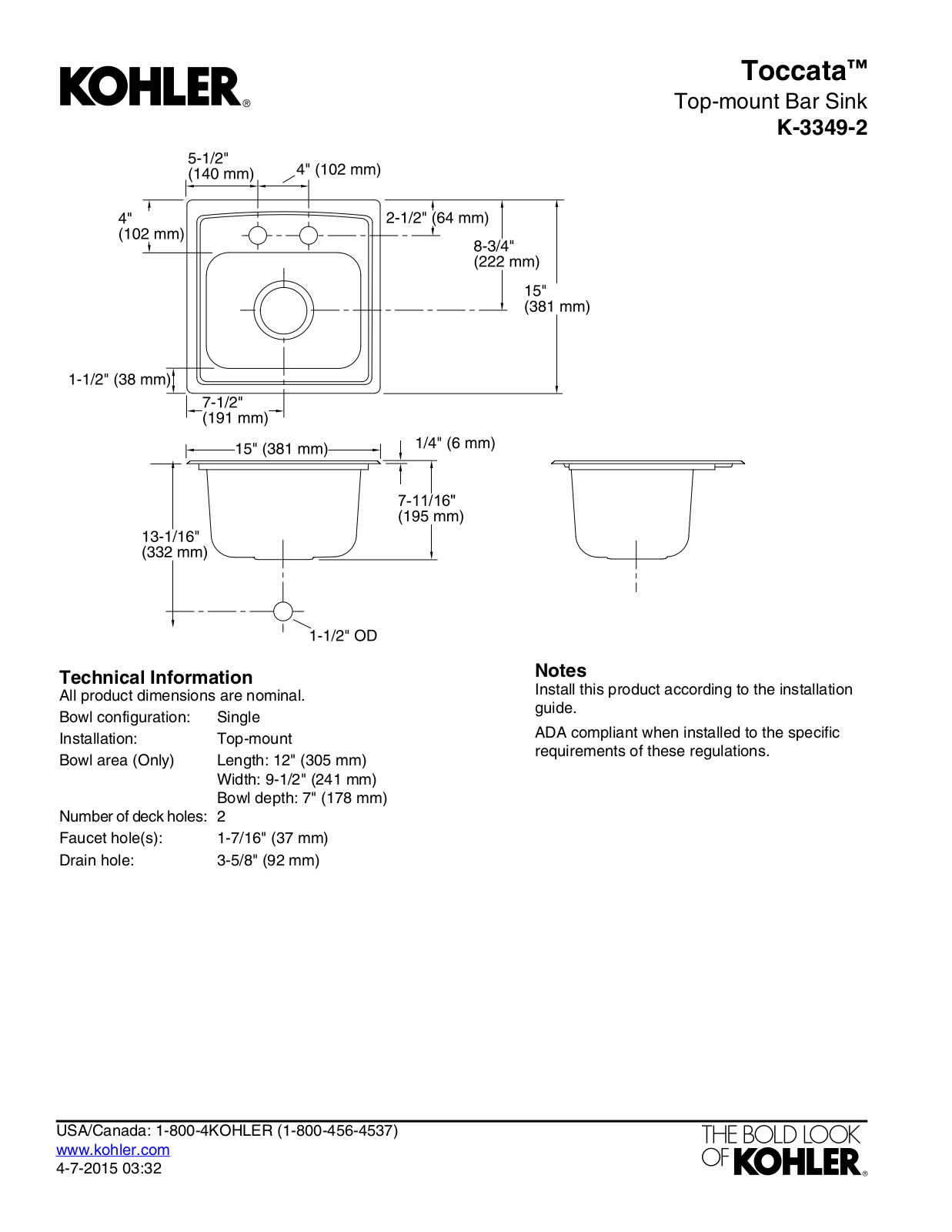

Page 2
7-11/16"
Toccata
™
Top-mount Bar Sink
K-3349-2
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mountInstallation:
Bowl area (Only)
Length: 12" (305 mm)
Width: 9-1/2" (241 mm)
Bowl depth: 7" (178 mm)
2Number of deck holes:
1-7/16" (37 mm)Faucet hole(s):
3-5/8" (92 mm)Drain hole:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:32
