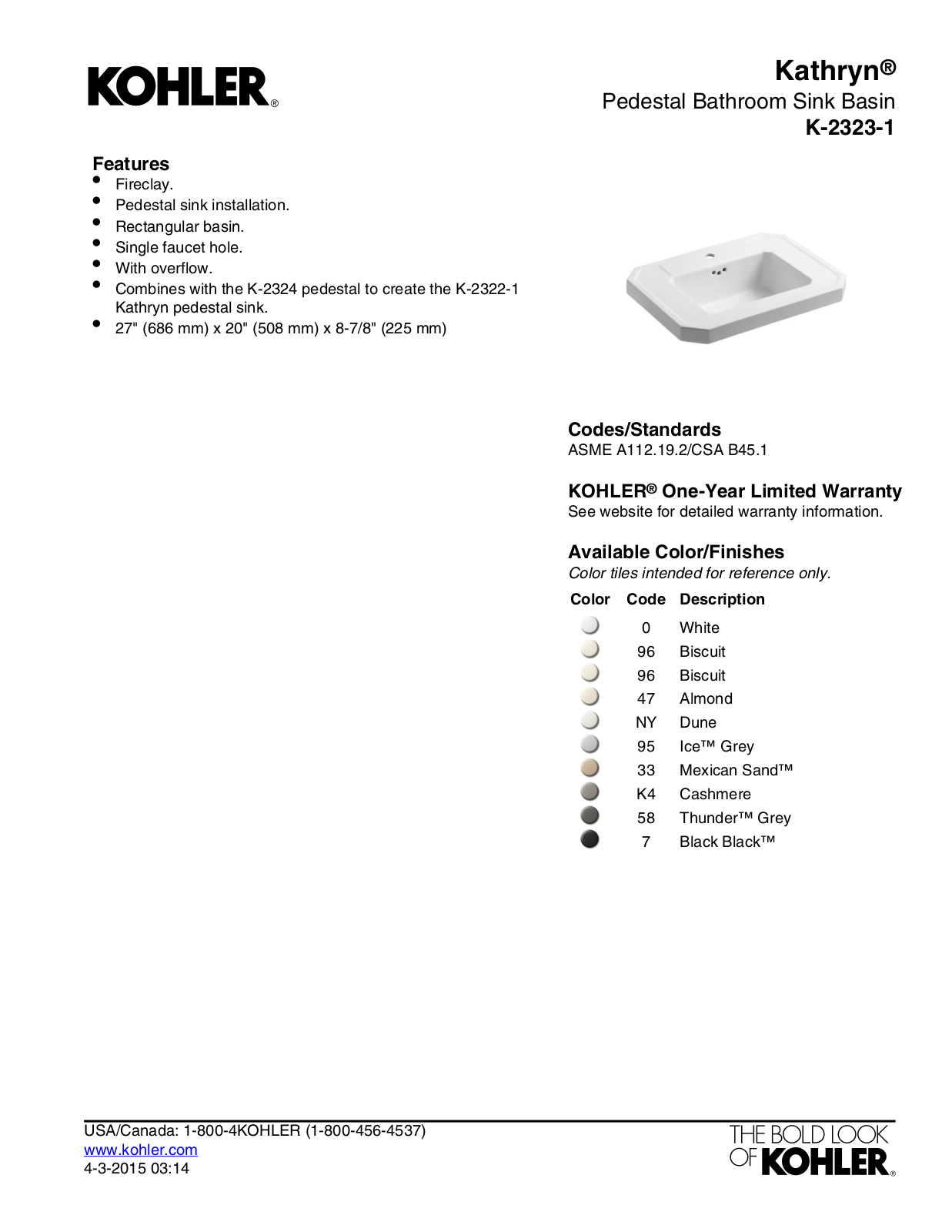

Page 1
Features
•
Fireclay.
•
Pedestal sink installation.
•
Rectangular basin.
•
Single faucet hole.
•
With overflow.
•
Combines with the K-2324 pedestal to create the K-2322-1
Kathryn pedestal sink.
•
27" (686 mm) x 20" (508 mm) x 8-7/8" (225 mm)
Kathryn
®
Pedestal Bathroom Sink Basin
K-2323-1
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Biscuit96
Almond47
DuneNY
Ice™ Grey95
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:14

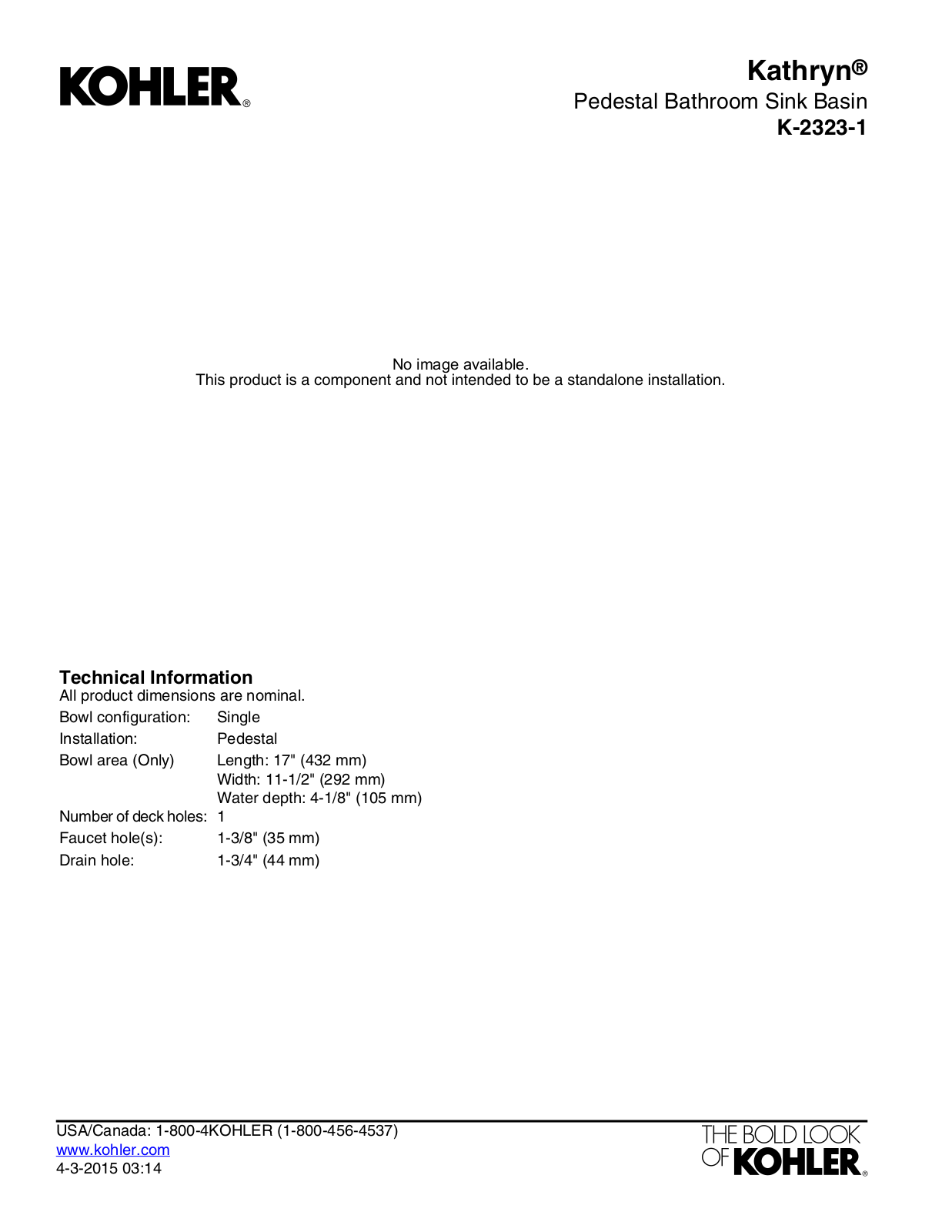

Page 2
No image available.
Kathryn
®
Pedestal Bathroom Sink Basin
K-2323-1
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
PedestalInstallation:
Bowl area (Only)
Length: 17" (432 mm)
Width: 11-1/2" (292 mm)
Water depth: 4-1/8" (105 mm)
1Number of deck holes:
1-3/8" (35 mm)Faucet hole(s):
1-3/4" (44 mm)Drain hole:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:14
