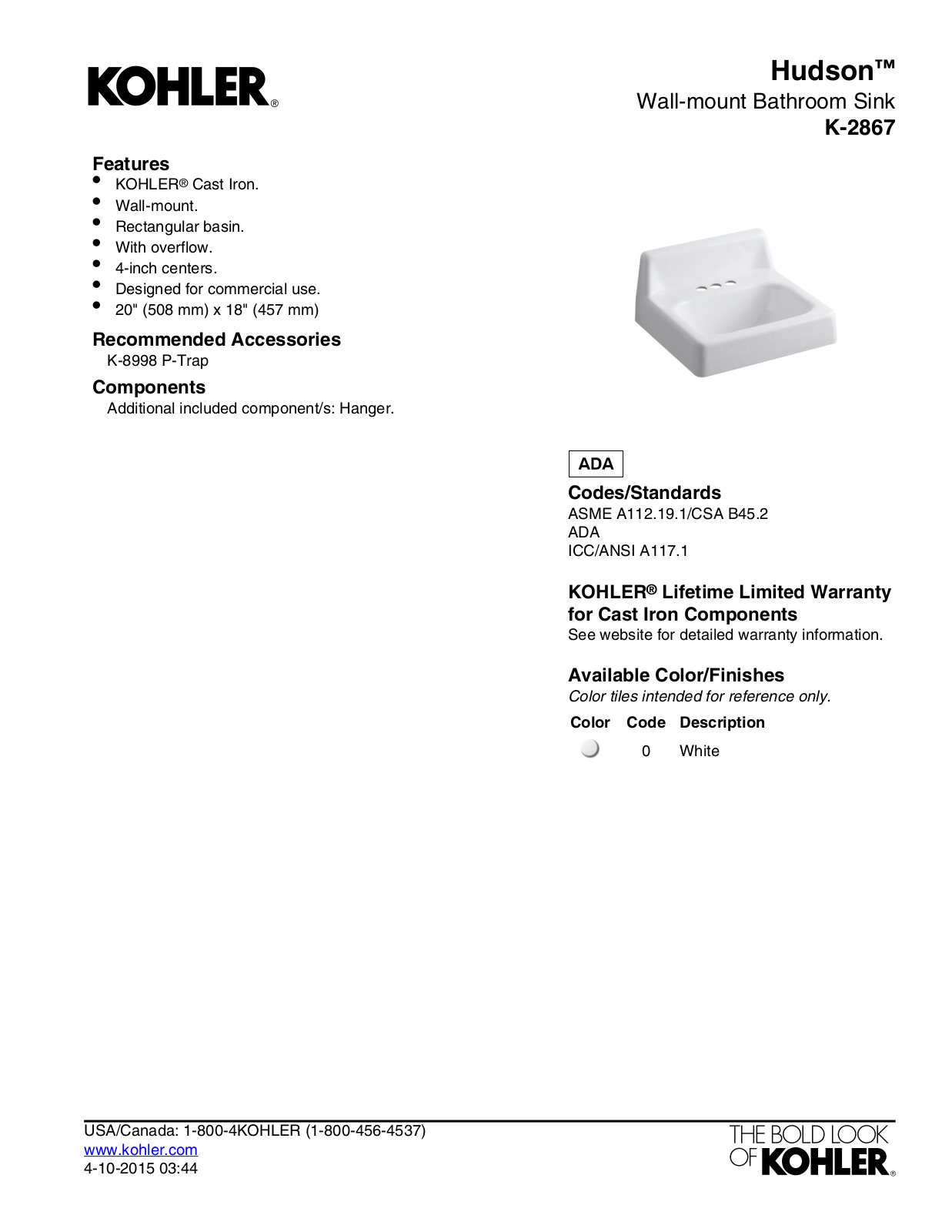

Page 1
Features
•
KOHLER® Cast Iron.
•
Wall-mount.
•
Rectangular basin.
•
With overflow.
•
4-inch centers.
•
Designed for commercial use.
•
20" (508 mm) x 18" (457 mm)
Recommended Accessories
K-8998 P-Trap
Components
Additional included component/s: Hanger.
Wall-mount Bathroom Sink
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
Hudson
K-2867
™
KOHLER® Lifetime Limited Warranty
for Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-10-2015 03:44
Page 2
Hudson
™
Wall-mount Bathroom Sink
K-2867

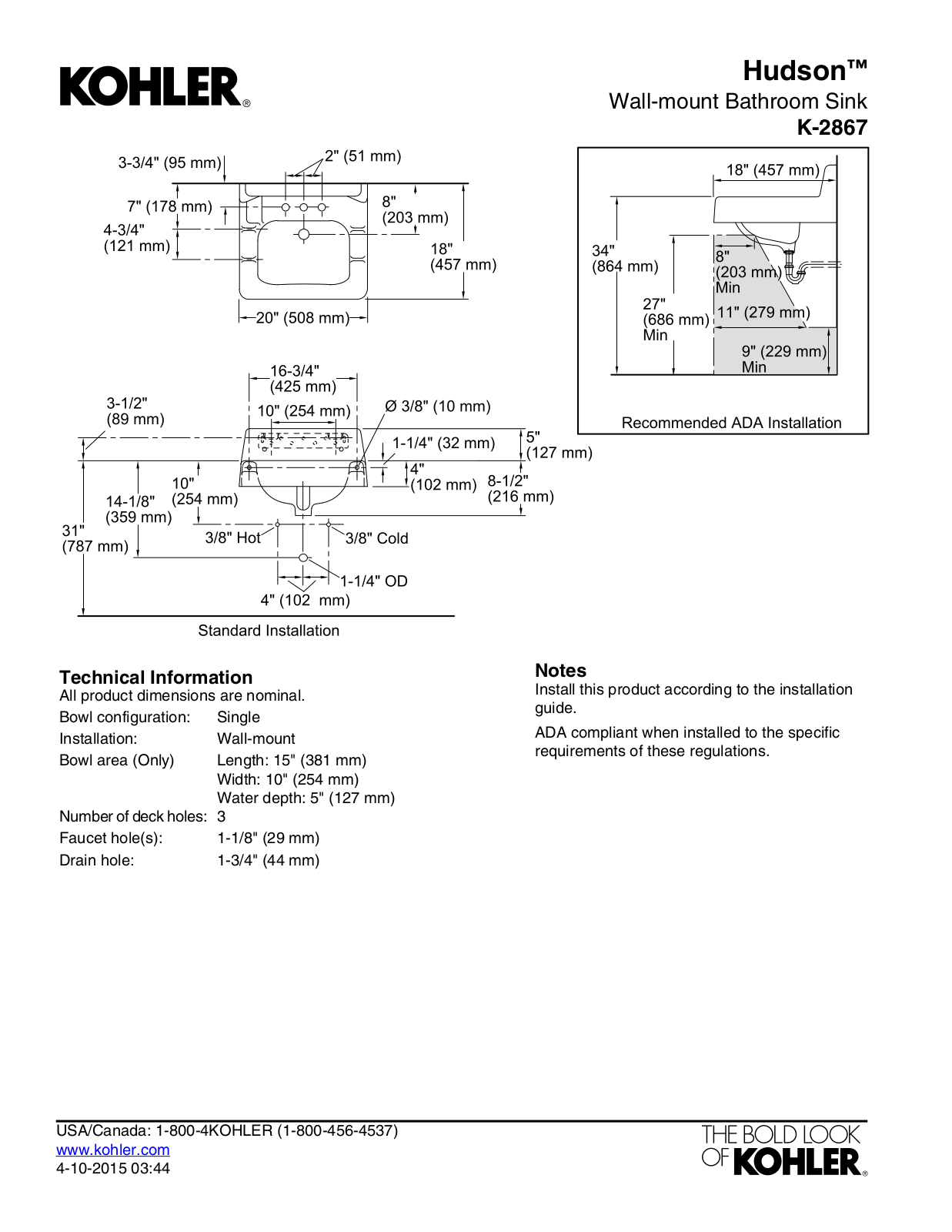

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Wall-mountInstallation:
Bowl area (Only)
Length: 15" (381 mm)
Width: 10" (254 mm)
Water depth: 5" (127 mm)
3Number of deck holes:
1-1/8" (29 mm)Faucet hole(s):
1-3/4" (44 mm)Drain hole:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-10-2015 03:44
