Kohler KOH18240 Specifications

Page 1
Features
Vitreous china.
Pedestal sink installation.
Generous deep basin.
4-inch center faucet holes.
With overflow.
Combines with the K-2019 pedestal to create the K-2293-4 Wellworth pedestal sink.
22-1/4" (565 mm) x 18-1/4" (464 mm) x 9" (229 mm)
Wellworth
®
Pedestal Bathroom Sink Basin
K-2296-4
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:35

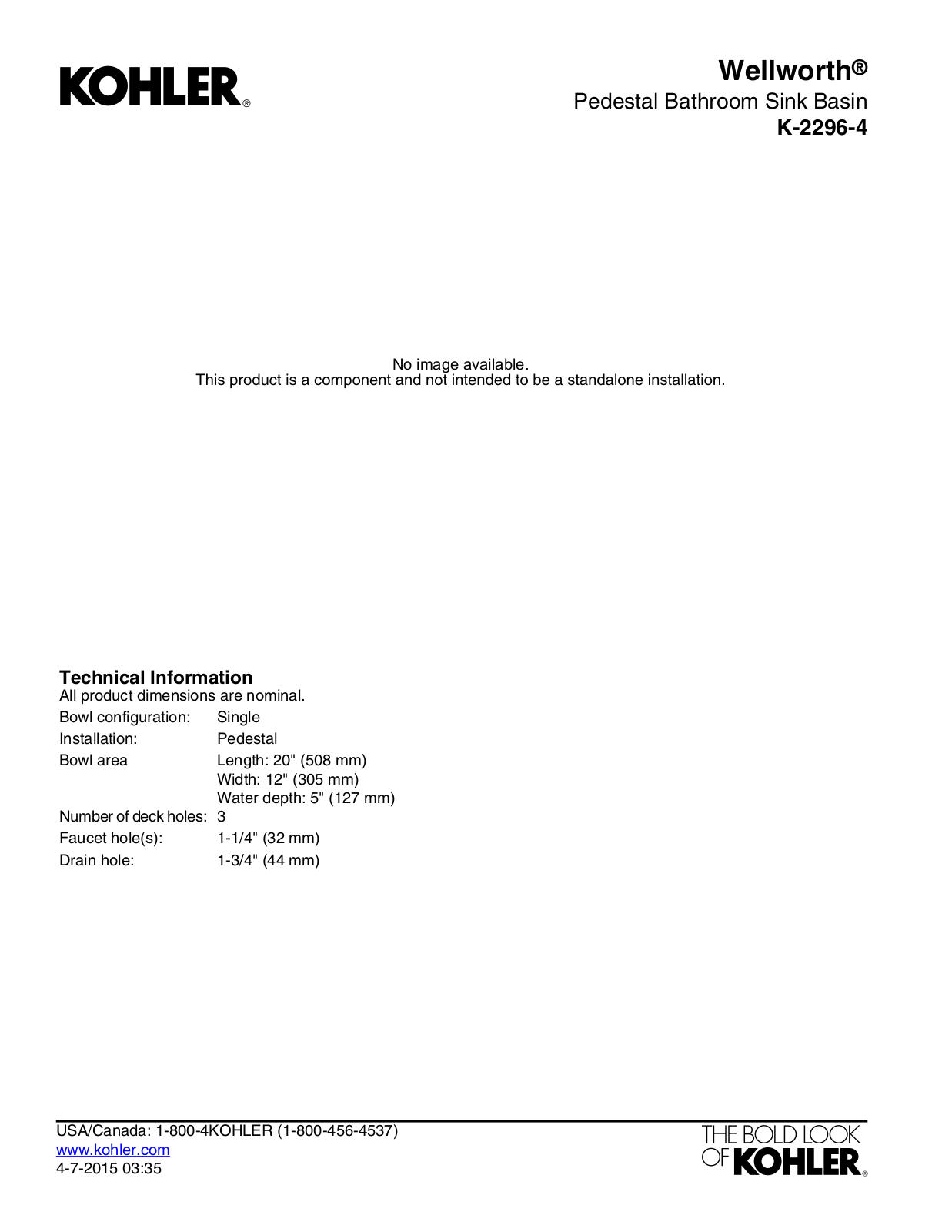

Page 2
No image available.
Wellworth
®
Pedestal Bathroom Sink Basin
K-2296-4
Technical Information
All product dimensions are nominal.
SingleBowl configuration: PedestalInstallation:
Bowl area
Length: 20" (508 mm) Width: 12" (305 mm) Water depth: 5" (127 mm) 3Number of deck holes:
1-1/4" (32 mm)Faucet hole(s): 1-3/4" (44 mm)Drain hole:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:35
