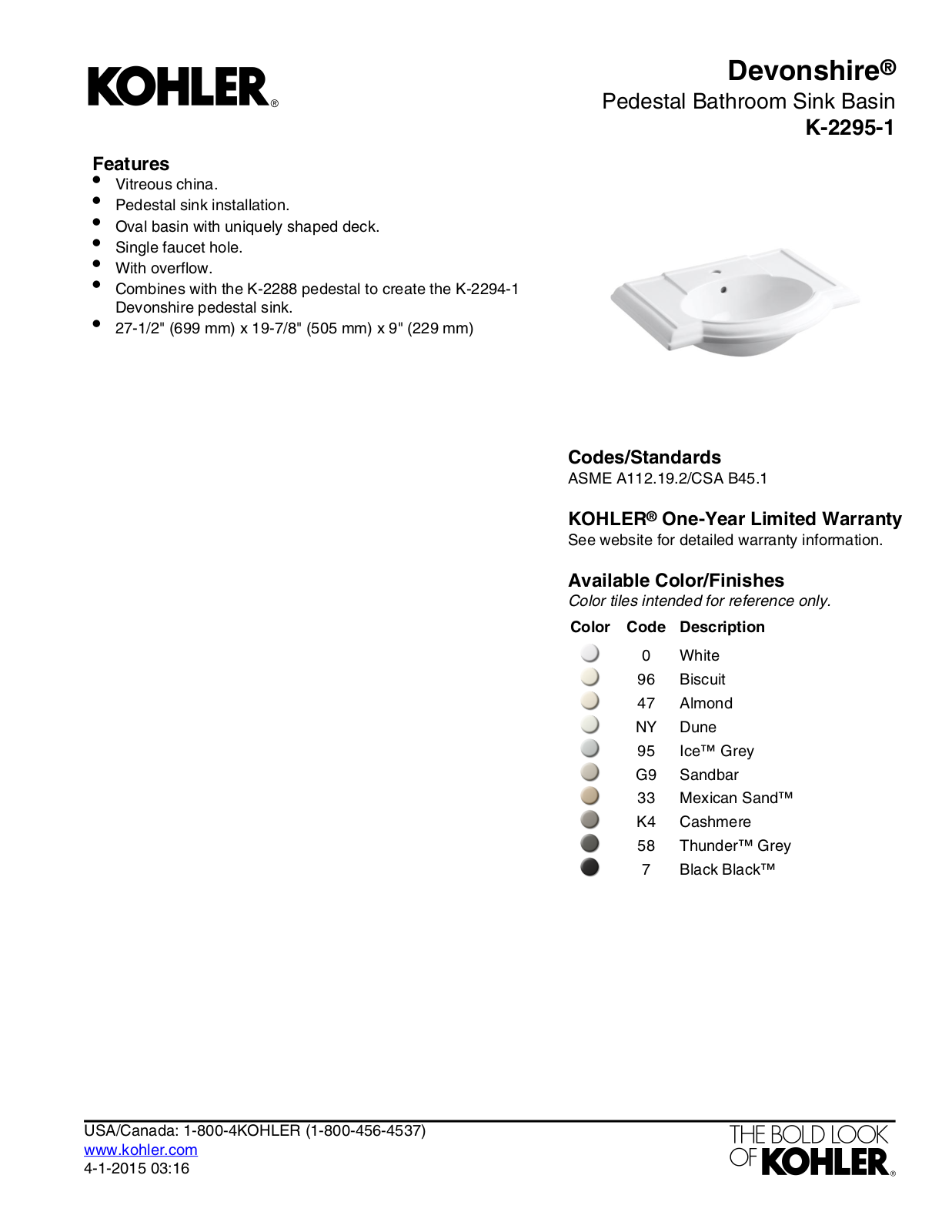

Page 1
Features
•
Vitreous china.
•
Pedestal sink installation.
•
Oval basin with uniquely shaped deck.
•
Single faucet hole.
•
With overflow.
•
Combines with the K-2288 pedestal to create the K-2294-1
Devonshire pedestal sink.
•
27-1/2" (699 mm) x 19-7/8" (505 mm) x 9" (229 mm)
Devonshire
®
Pedestal Bathroom Sink Basin
K-2295-1
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:16

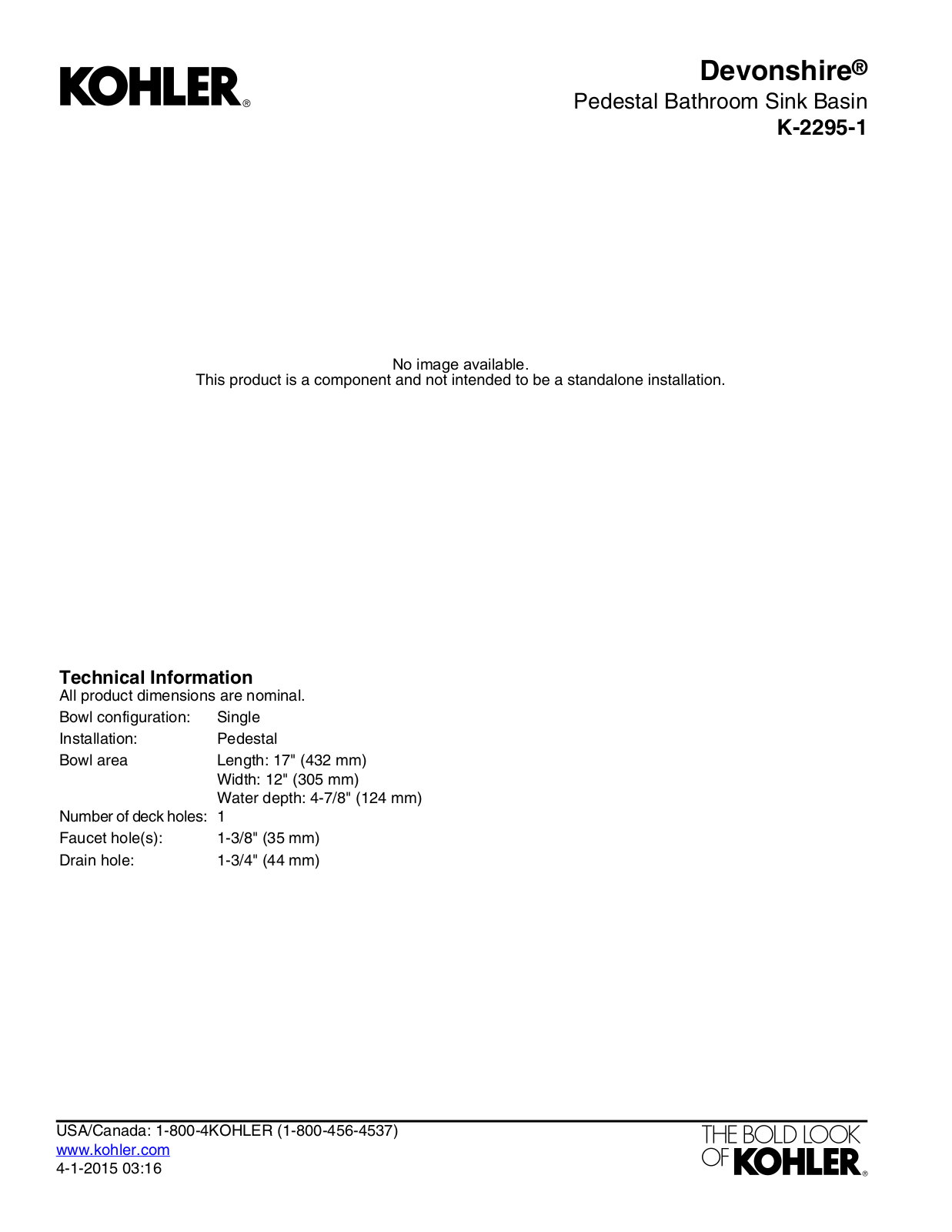

Page 2
No image available.
Devonshire
®
Pedestal Bathroom Sink Basin
K-2295-1
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
PedestalInstallation:
Bowl area
Length: 17" (432 mm)
Width: 12" (305 mm)
Water depth: 4-7/8" (124 mm)
1Number of deck holes:
1-3/8" (35 mm)Faucet hole(s):
1-3/4" (44 mm)Drain hole:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:16
