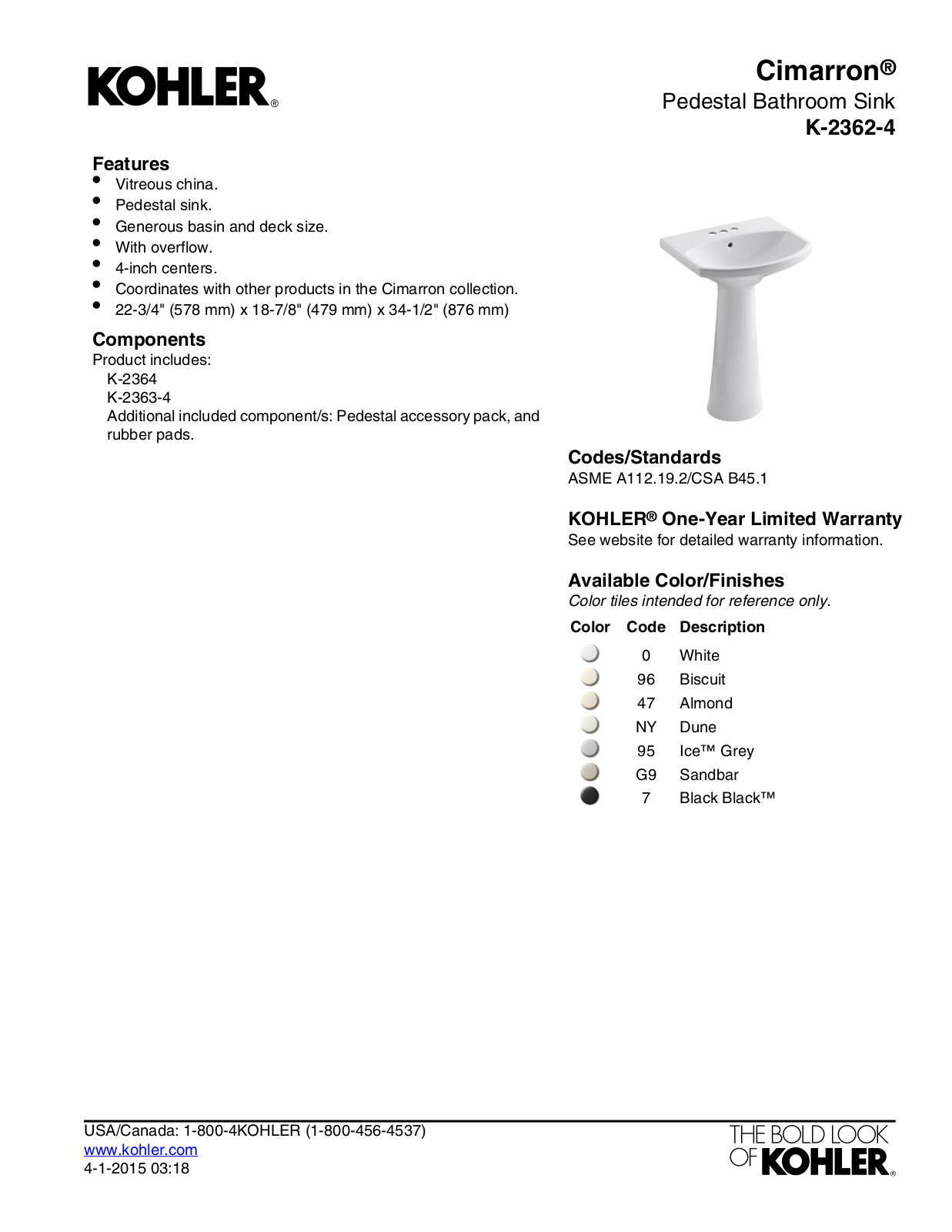

Page 1
Features
•
Vitreous china.
•
Pedestal sink.
•
Generous basin and deck size.
•
With overflow.
•
4-inch centers.
•
Coordinates with other products in the Cimarron collection.
•
22-3/4" (578 mm) x 18-7/8" (479 mm) x 34-1/2" (876 mm)
Components
Product includes:
K-2364
K-2363-4
Additional included component/s: Pedestal accessory pack, and
rubber pads.
Cimarron
®
Pedestal Bathroom Sink
K-2362-4
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:18
Page 2
Cimarron
®
Pedestal Bathroom Sink
K-2362-4

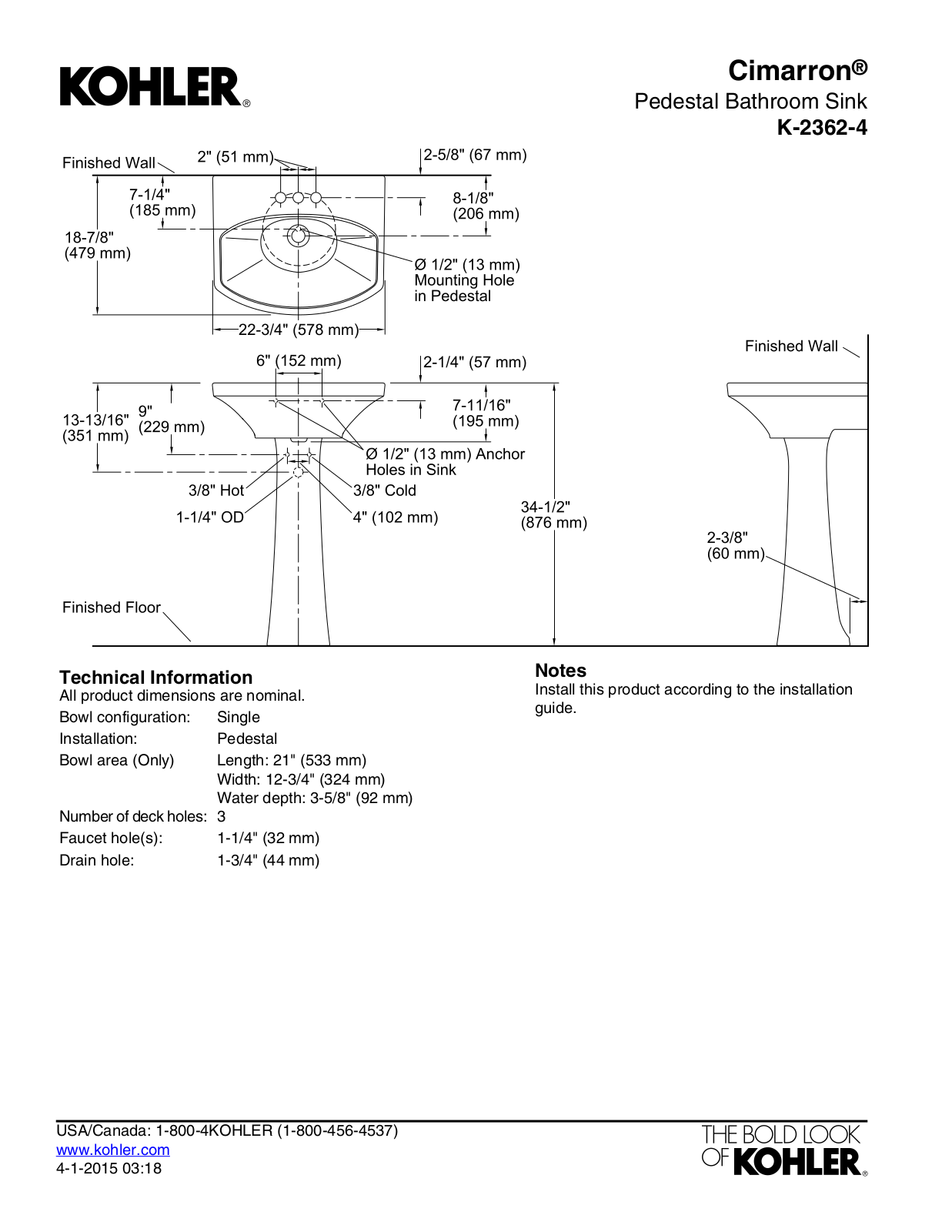

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
PedestalInstallation:
Bowl area (Only)
Length: 21" (533 mm)
Width: 12-3/4" (324 mm)
Water depth: 3-5/8" (92 mm)
3Number of deck holes:
1-1/4" (32 mm)Faucet hole(s):
1-3/4" (44 mm)Drain hole:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:18
