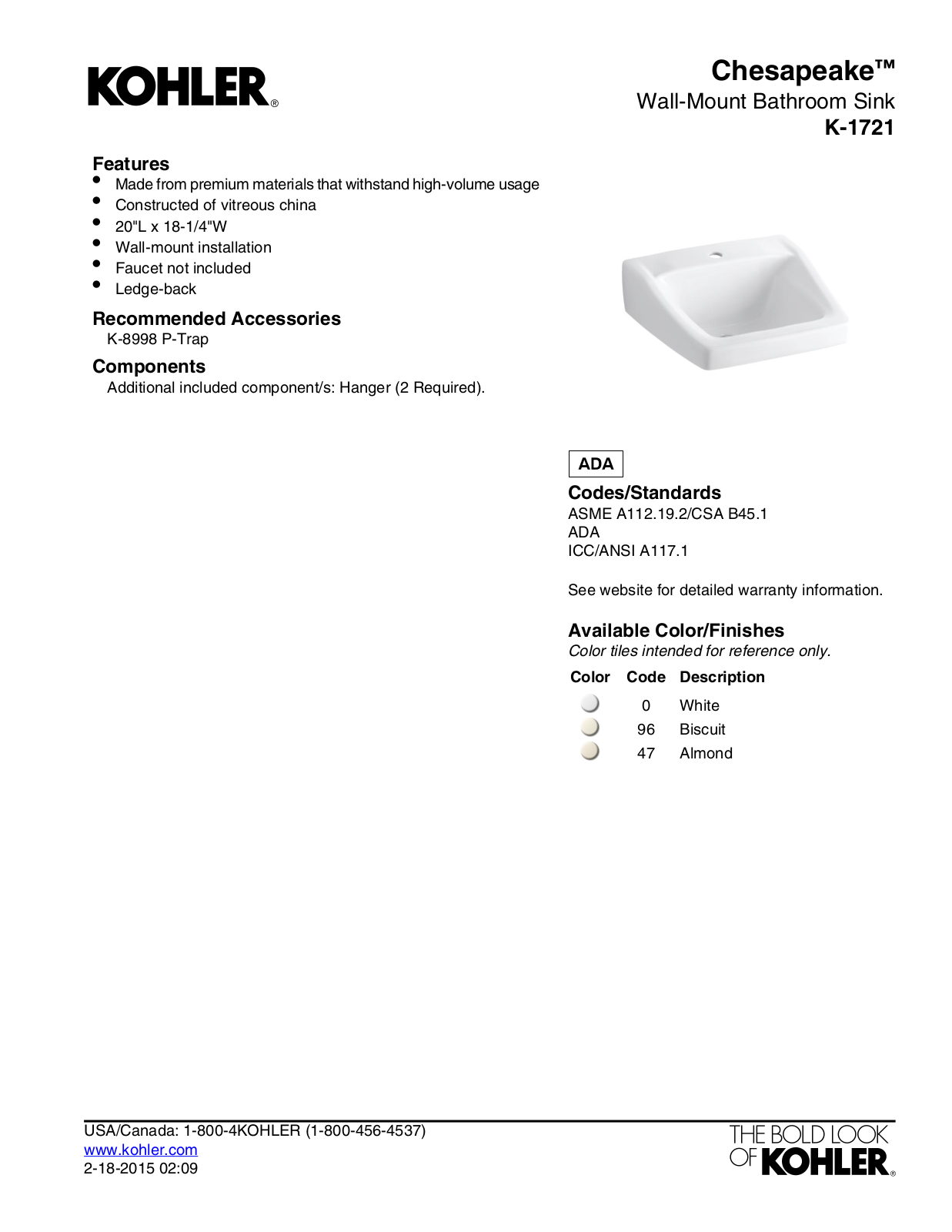

Page 1
Features
•
Made from premium materials that withstand high-volume usage
•
Constructed of vitreous china
•
20"L x 18-1/4"W
•
Wall-mount installation
•
Faucet not included
•
Ledge-back
Recommended Accessories
K-8998 P-Trap
Components
Additional included component/s: Hanger (2 Required).
Chesapeake
Wall-Mount Bathroom Sink
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
™
K-1721
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:09

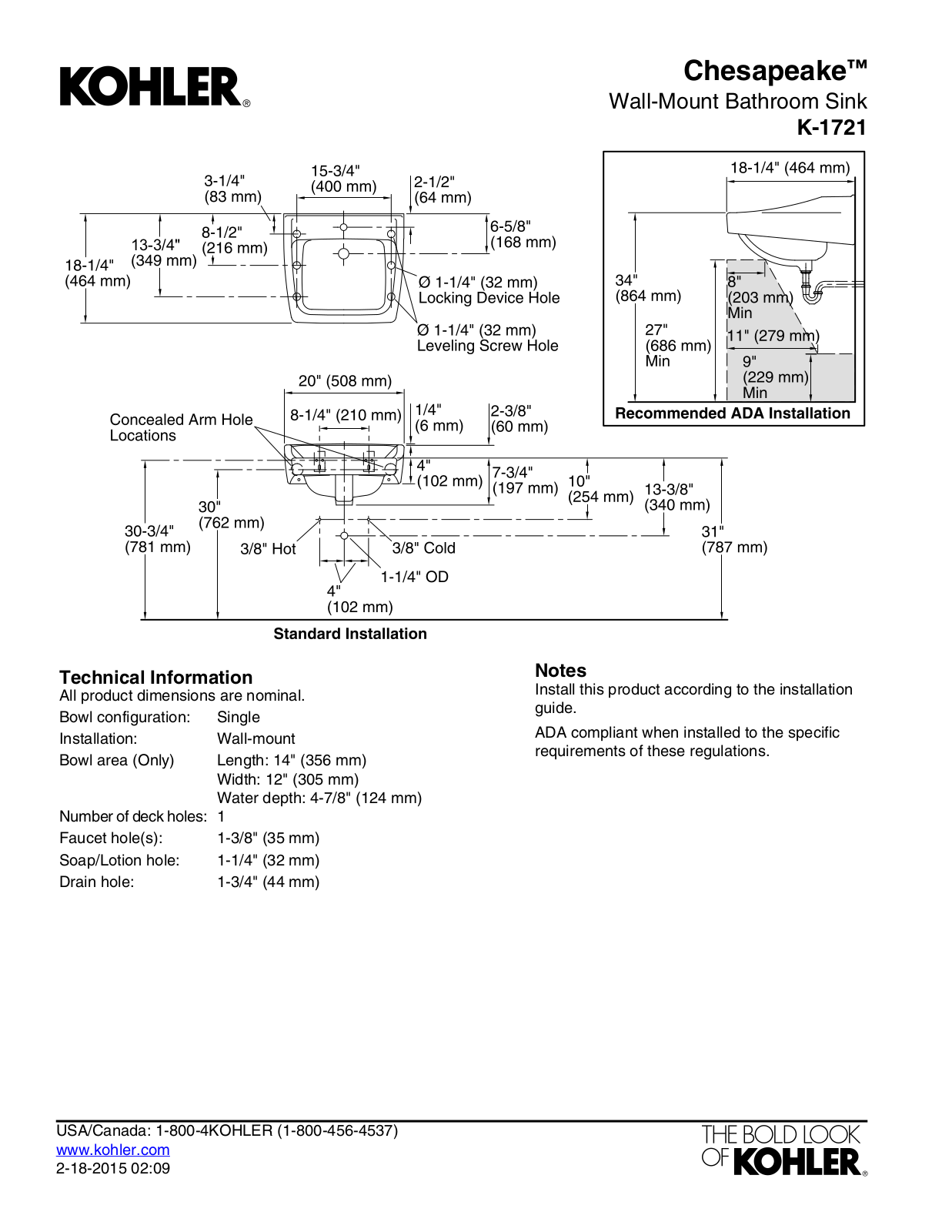

Page 2
13-3/4"
Chesapeake
™
Wall-Mount Bathroom Sink
K-1721
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Wall-mountInstallation:
Bowl area (Only)
Length: 14" (356 mm)
Width: 12" (305 mm)
Water depth: 4-7/8" (124 mm)
1Number of deck holes:
1-3/8" (35 mm)Faucet hole(s):
1-1/4" (32 mm)Soap/Lotion hole:
1-3/4" (44 mm)Drain hole:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:09
