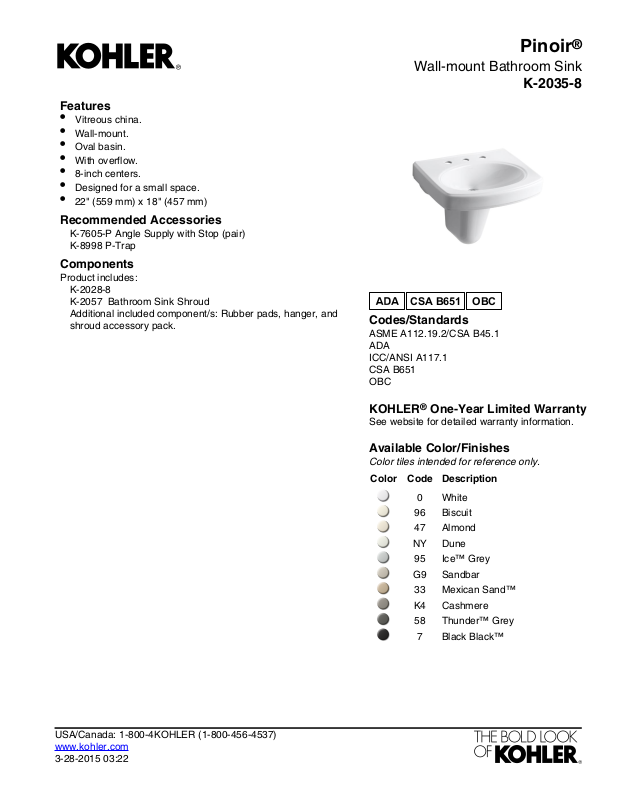

Page 1
Features
CSA B651
OBC
•
Vitreous china.
•
Wall-mount.
•
Oval basin.
•
With overflow.
•
8-inch centers.
•
Designed for a small space.
•
22" (559 mm) x 18" (457 mm)
Recommended Accessories
K-7605-P Angle Supply with Stop (pair)
K-8998 P-Trap
Components
Product includes:
K-2028-8
K-2057 Bathroom Sink Shroud
Additional included component/s: Rubber pads, hanger, and
shroud accessory pack.
Wall-mount Bathroom Sink
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
Pinoir
K-2035-8
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-28-2015 03:22
Page 2
Pinoir
®
Wall-mount Bathroom Sink
K-2035-8

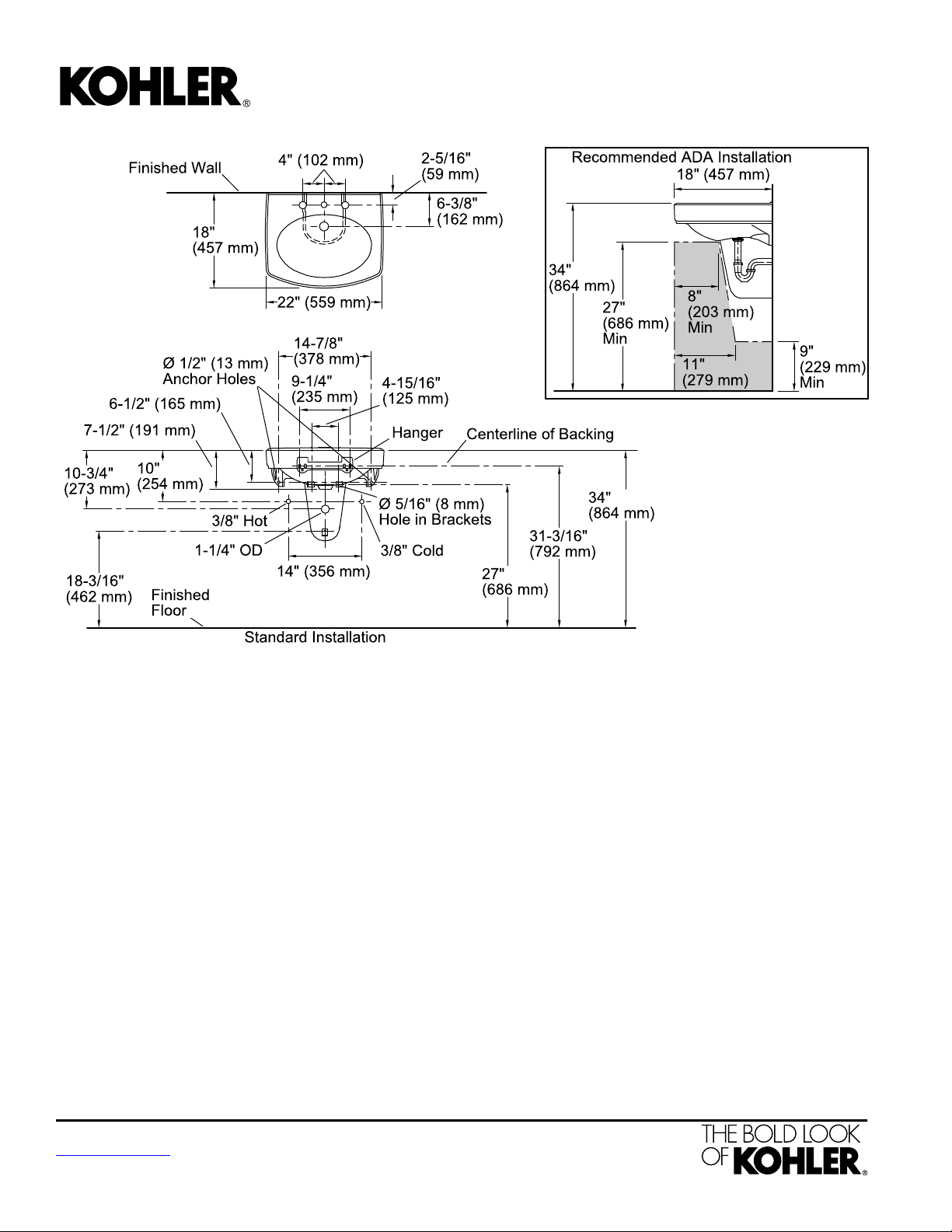

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Wall-mountInstallation:
Bowl area (Only)
Length: 18" (457 mm)
Width: 12" (305 mm)
Water depth: 4" (102 mm)
3Number of deck holes:
1-3/8" (35 mm)Faucet hole(s):
1-3/4" (44 mm)Drain hole:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-28-2015 03:22
