Kohler KOH18084 Dimensions

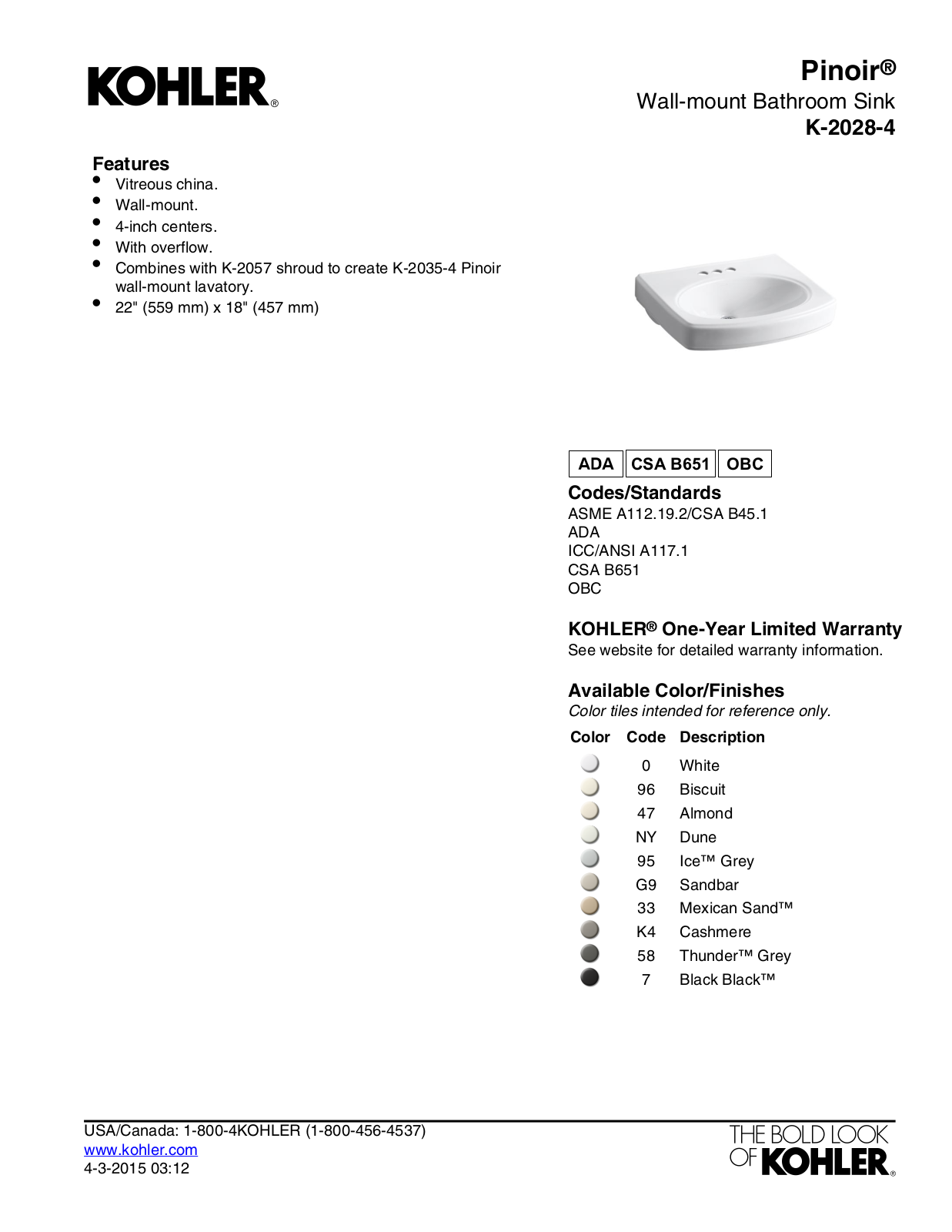

Page 1
Features
CSA B651
OBC
Vitreous china.
Wall-mount.
4-inch centers.
With overflow.
Combines with K-2057 shroud to create K-2035-4 Pinoir wall-mount lavatory.
Wall-mount Bathroom Sink
Codes/Standards
ASME A112.19.2/CSA B45.1 ADA ICC/ANSI A117.1 CSA B651 OBC
Pinoir
K-2028-4
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice Grey95
SandbarG9
Mexican Sand33
CashmereK4
Thunder Grey58
Black Black7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:12
Page 2
No image available.
Pinoir
®
Wall-mount Bathroom Sink
K-2028-4
Technical Information
All product dimensions are nominal.
SingleBowl configuration: Wall-mountInstallation:
Bowl area
Length: 18" (457 mm) Width: 12" (305 mm) Water depth: 4" (102 mm) 3Number of deck holes:
1-1/4" (32 mm)Faucet hole(s): 1-3/4" (44 mm)Drain hole:
Notes
ADA, OBC, CSA B651 compliant when installed to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:12
