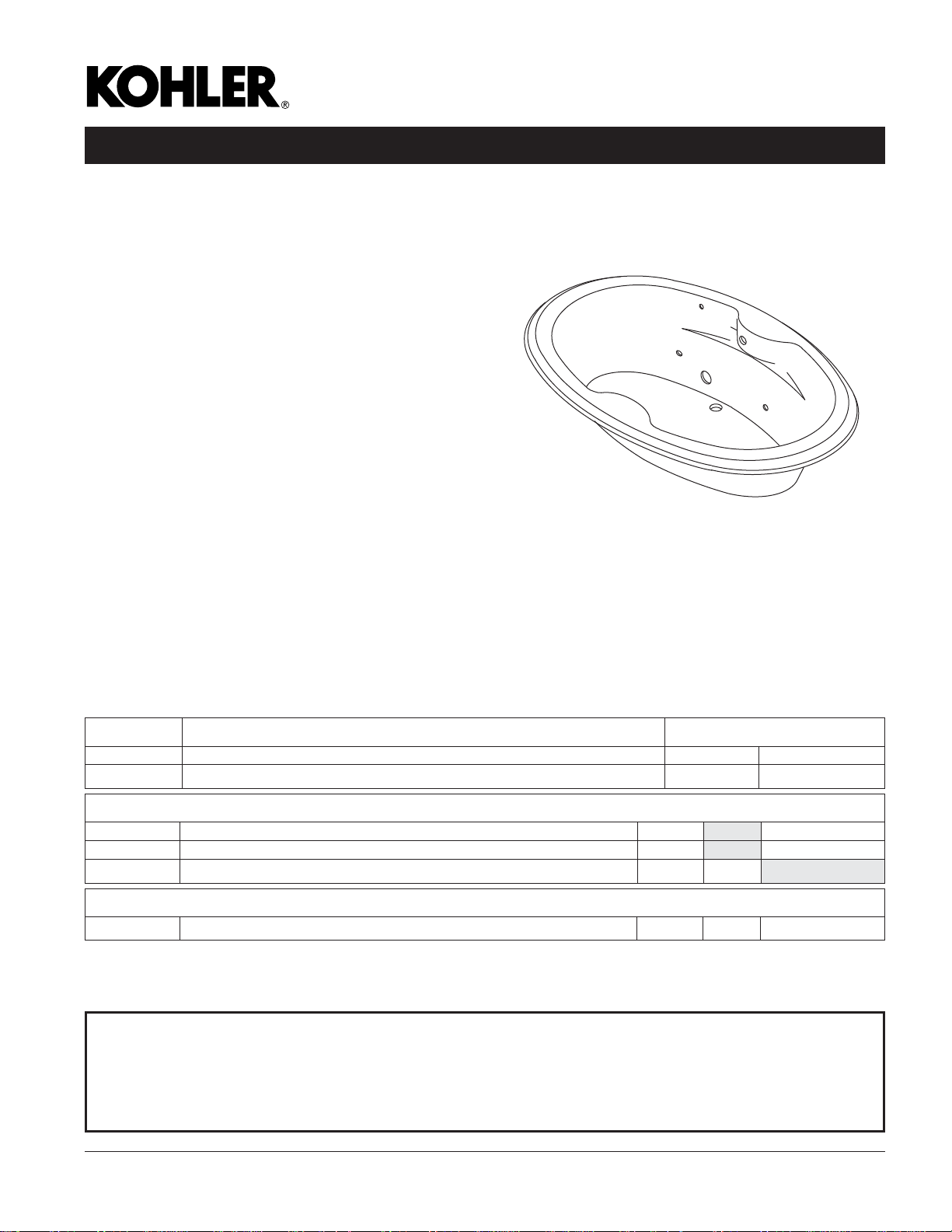

PROFLEX
7242
®
Features
ExoCrylic
•
Oval shape
•
Drop-in installation
•
Six individually adjustable ProFlex
•
jets
Pump with air switch and grounding-type plug-in cord
•
In-line heater
•
Molded lumbar support and armrests for comfort
•
UL listed
•
Optional K-9696 whirlpool trim kit in additional
•
finishes
72″ (1829 mm) x 42-1/8″ (1070 mm) x 19-3/4″
•
(502 mm)
TM
hydro-massage
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7/CSA B45.10
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
Specified Model
WHIRLPOOL BATH WITH HEATER
K-1148-HD
ALSO K-1148-HH
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1148-HD Whirlpool bath with heater (shown) ❑ 0 ❑ Other_____
K-1148-HH Whirlpool bath with heater (top view shown) ❑ 0 ❑ Other_____
Recommended Accessories
K-7213 Cable drain with PVC tubing OR ❑ CP ❑ Other_____
K-7214 Cable drain without PVC tubing OR ❑ CP ❑ Other_____
K-11677 Adjustable trip lever bath drain ❑ CP ❑ PB
Optional Accessories
K-9696 Jet trim kit (metal finishes) ❑ CP ❑ PB ❑ Other_____
Product Specification
The ExoCrylic whirlpool bath shall be 72″ (1829 mm) in length, 42-1/8″ (1070 mm) in width, and 19-3/4″ (502 mm) in height.
Whirlpool shall be oval shaped and for drop-in installation. Whirlpool shall have six individually adjustable ProFlex
hydro-massage jets, pump with air switch and grounding-type plug-in cord, and in-line heater. Whirlpool shall have molded
lumbar support and armrests for comfort. Whirlpool shall be UL listed. Whirlpool shall feature optional K-9696 whirlpool trim kit
in additional finishes. Whirlpool bath shall be Kohler Model K-1148-_____-______.
Page 1 of 2
1013038-4-
F
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
PROFLEX
7242
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well:
Basin area, bottom 53″ (1346 mm) x 26″ (660 mm)
Basin area, top 65″ (1651 mm) x 34″ (864 mm)
Weight 79-1/4 lbs (35.9 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 78 gal (295.3 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7.5
Heater: kW V Hz A
1.5 120 60 12.5
Included components:
Cutout template 114861-7
No change in measurements with drain
shown. (K-11677)
K-1148-HD Pump/Control Access
20" (508 mm) W x
15" (381 mm) H Min
7-1/2"
(191 mm) Max
7-1/2" (191 mm)
Max
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Locate the outlet behind the whirlpool and within 24″
(610 mm) of the pump.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
36 lbs/square foot (176 kg/square meter) loading.
Pump must be relocated to custom position at the time of
installation. Provide adequate clearance.
35" (889 mm)
30" (762 mm)
20" (508 mm)
10"
(254 mm)
12-1/2"
(318 mm)
17"
(432 mm)
19-1/2"
(495 mm)
20-1/2"
(521 mm)
K-1148-HH Pump/Control Access
20" (508 mm) W x
15" (381 mm) H Min
14"
(356 mm)
4-7/8"
(124 mm)
Lumbar
Angle 30˚
72" (1829 mm)
36" (914 mm)
Lumbar
Angle 26˚
1-1/2" Bath Drain
1-1/2" (38 mm)
19-3/4"
(502 mm)

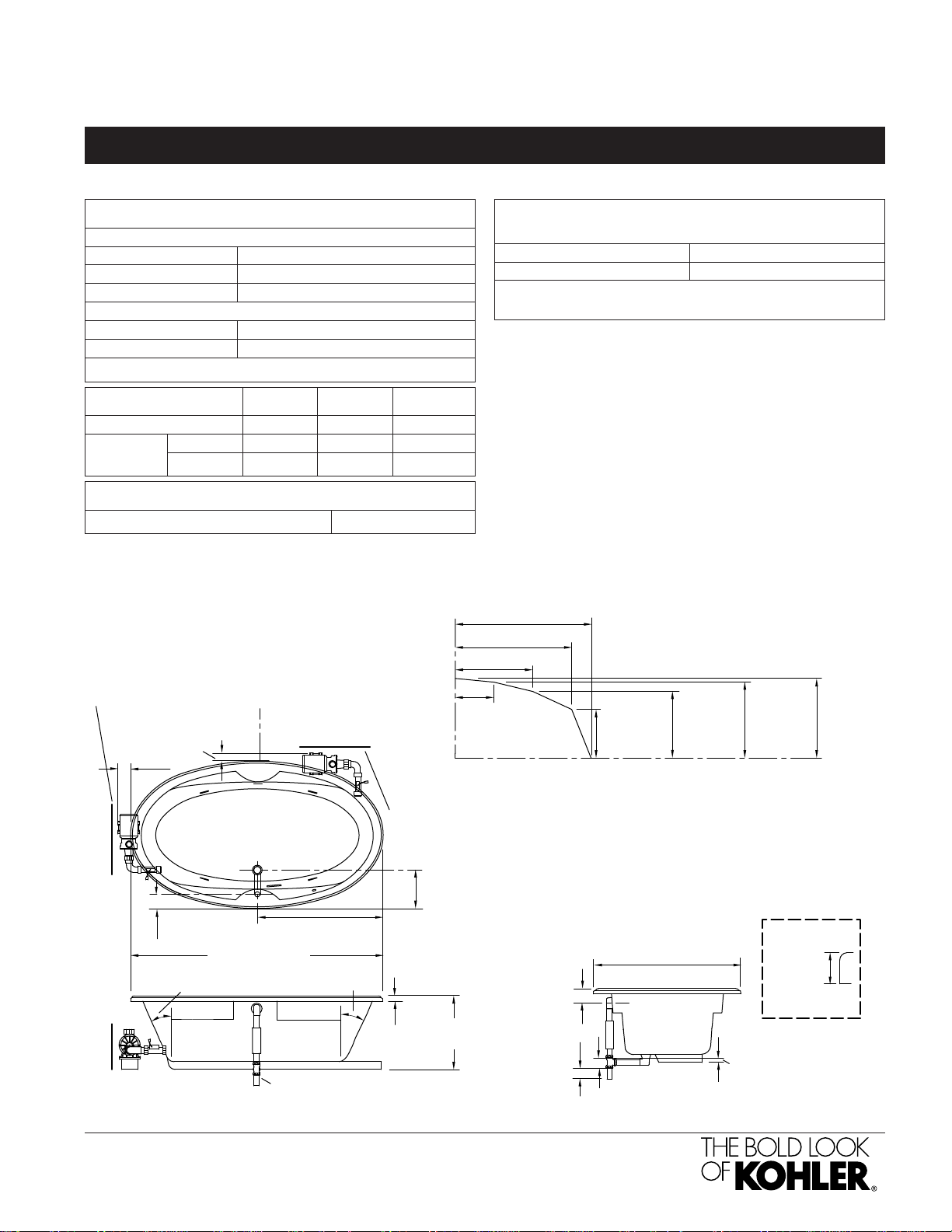

Product Diagram
PROFLEX®7242 WHIRLPOOL BATH WITH HEATER
Page2of2
1013038-4-
F
2-1/2"
(64 mm)
3" (76 mm)
Symmetrical About C
Cut-Out Detail
42-1/8" (1070 mm)
1/4" (6 mm)
2-7/8" (73 mm)
L
1-1/2"
(38 mm)
Drop-In
Rim Detail
