Features
•
Acrylic
•
Integral soap ledges.
•
Brushed stainless steel grab bars.
•
Fold-up seat on right side.
•
Molded-in floor pattern.
•
"Pit" installation options detailed in instructions.
•
36" (914 mm) x 36" (914 mm) x 81-3/8" (2067 mm) inside
finished dimensions.
•
45” (1143 mm) with flange x 37-1/4” (946 mm) x 84” (2134 mm)
overall product dimensions.
Transfer Shower Module
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
ADA
ICC/ANSI A117.1
Freewill
K-12100-C
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-24-2015 03:02
Drain
Freewill
®
Transfer Shower Module
K-12100-C

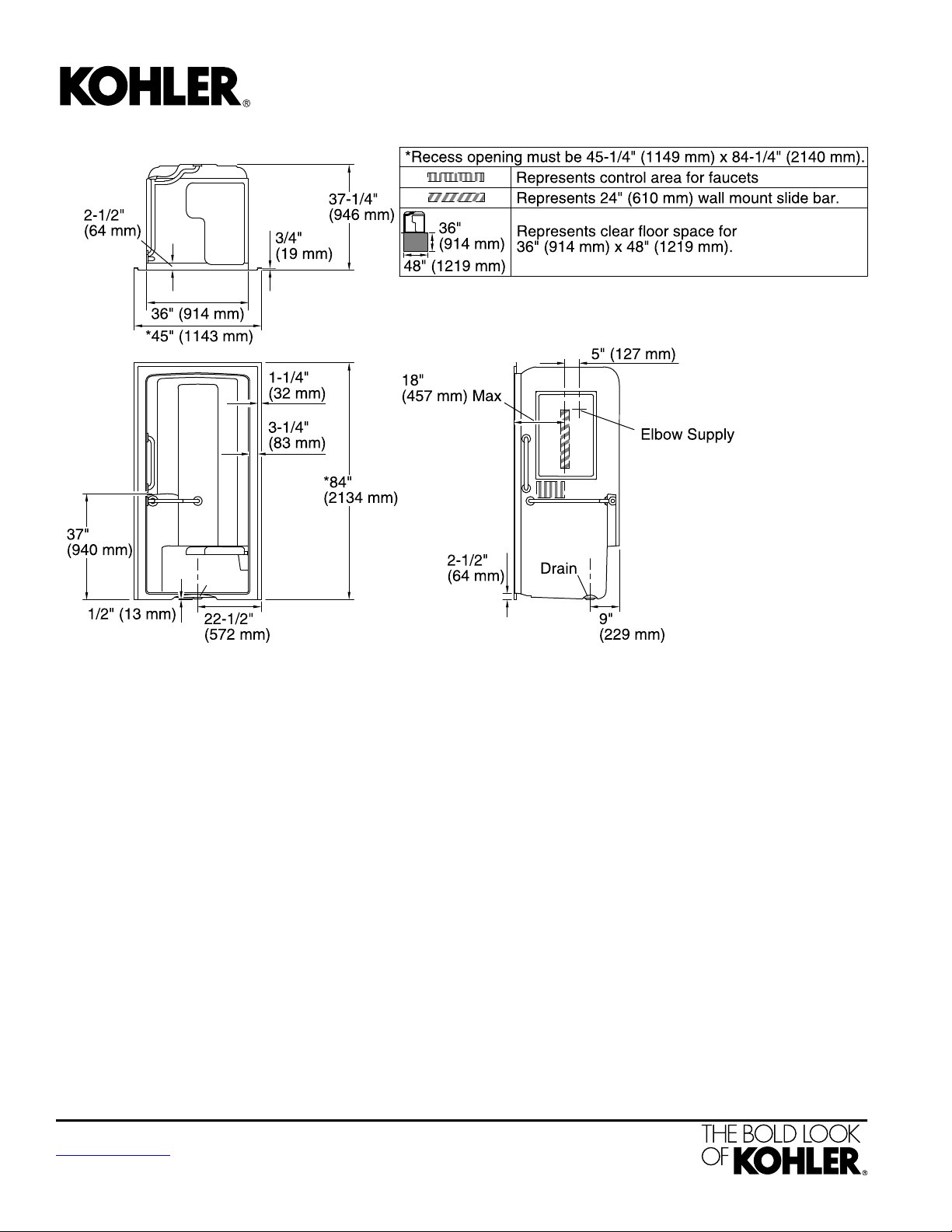

Technical Information
All product dimensions are nominal.
3-Wall AlcoveInstallation:
Center rearDrain location:
170 lbs (77.1 kg)Weight:
Notes
Install this product according to the installation
guide.
For optimum accessibility, specify faucets and
fittings to install and operate within the control
area shown.
For increased accessibility, utilize "pit" installation
as detailed in installation guide.
The fixture is not drilled for supply fittings.
Shimming may be required to level the fixture.
Stud opening tolerance + 1/4" (6 mm).
When fire rated construction is specified,
dimensions are to the inside of the fire-rated wall.
Some shimming between stud frame and fixture
may be required.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-24-2015 03:02
