WINDWARDTM
Features
Acrylic
•
Rectangular shape
•
120 BubbleMassage
•
Molded lumbar supports and armrests
•
Blower motor with 300 W heater, electronic user
•
control, and grounding-type plug-in cord
Available as drop-in rim style [-G] or drop-in, 4-side
•
integral flange [-GF]
60″ (1524 mm) x 42″ (1067 mm) x 21″ (533 mm)
•
TM airjets
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
IAPMO IGC 171
•
ASTM E162
•
ASTM E662
•
UL 1795
•
Specified Model
BATH WITH AIRJETS
K-1112-G
ALSO K-1112-GF
K-1112-G
K-1112-GF
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1112-G Bath with airjets – drop-in rim style ❑ 0 ❑ Other_____
K-1112-GF Bath with airjets – drop-in, 4-side integral flange ❑ 0 ❑ Other_____
Recommended Accessories
K-7166-AF Pop-up drain with tailpiece – above or through-the-floor installation OR ❑ CP ❑ Other_____
K-11677 Trip lever drain with tailpiece – through-the-floor installation ❑ CP ❑ Other_____
Product Specification
The acrylic bath with airjets shall be 60″ (1524 mm) in length, 42″ (1067 mm) in width, and 21″ (533 mm) in height. Product shall
be available as drop-in rim style [-G] or drop-in, 4-side integral flange [-GF]. Product shall have a blower motor with 300 W heater
and an electronic user control with grounding-type plug-in cord. Product shall feature 120 BubbleMassage airjets and molded
lumbar supports and armrests. Product shall be rectangular in shape. Bath with airjets shall be Kohler Model K-1112-____-____.
Page 1 of 2
1079327-4-
E
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
WINDWARDTM
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 110 lbs (50 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 57 gal (215.9 L)
* Approximate measurements for comparison only.
Drop-in cutout
dimensions:
Blower motor Heater V Hz A
Minimum access panel blower motor (required):
20″ (508 mm) W x 15″ (381 mm) H
No change in measurements if connected with
drain illustrated. (K-11677)
1-1/4"
(32 mm)
43″ (1092 mm) x 20-1/2″ (521 mm)
53-1/2″ (1359 mm) x 32-1/8″ (816 mm)
58-1/2″ (1486 mm) x 40-1/2″ (1029
mm)
300 W 120 60 5
Recommended faucet area
1-1/2"
(38 mm)
Required Electrical Service
Dedicated circuit required, protected with a Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 5 A, 60 Hz
Blower motor is supplied with a 24″ (610 mm)
grounding-type plug-in cord.
Installation Notes
Install this product according to the installation guide.
Floor support under this product must provide for a minimum
of 35 lbs/square foot (171 kg/square meter) loading.
If installing a rim-mount faucet, make sure there is no
interference with the drain overflow and circulating system
before drilling any holes. Consult local and national codes for
minimum air gap requirements if installing a spout on the
faucet deck.
21"
(533 mm)
Tile Flange
Detail
Drop-In Rim
Detail
Blower/Control Access
20" (508 mm) W x
15" (381 mm) H Min
42" (1067 mm)
1-1/2" (38 mm)
19-1/2"
(495 mm)
1-1/2" OD
WINDWARDTM BATH WITH AIRJETS
Page2of2
1079327-4-
E
2-7/8" (73 mm)

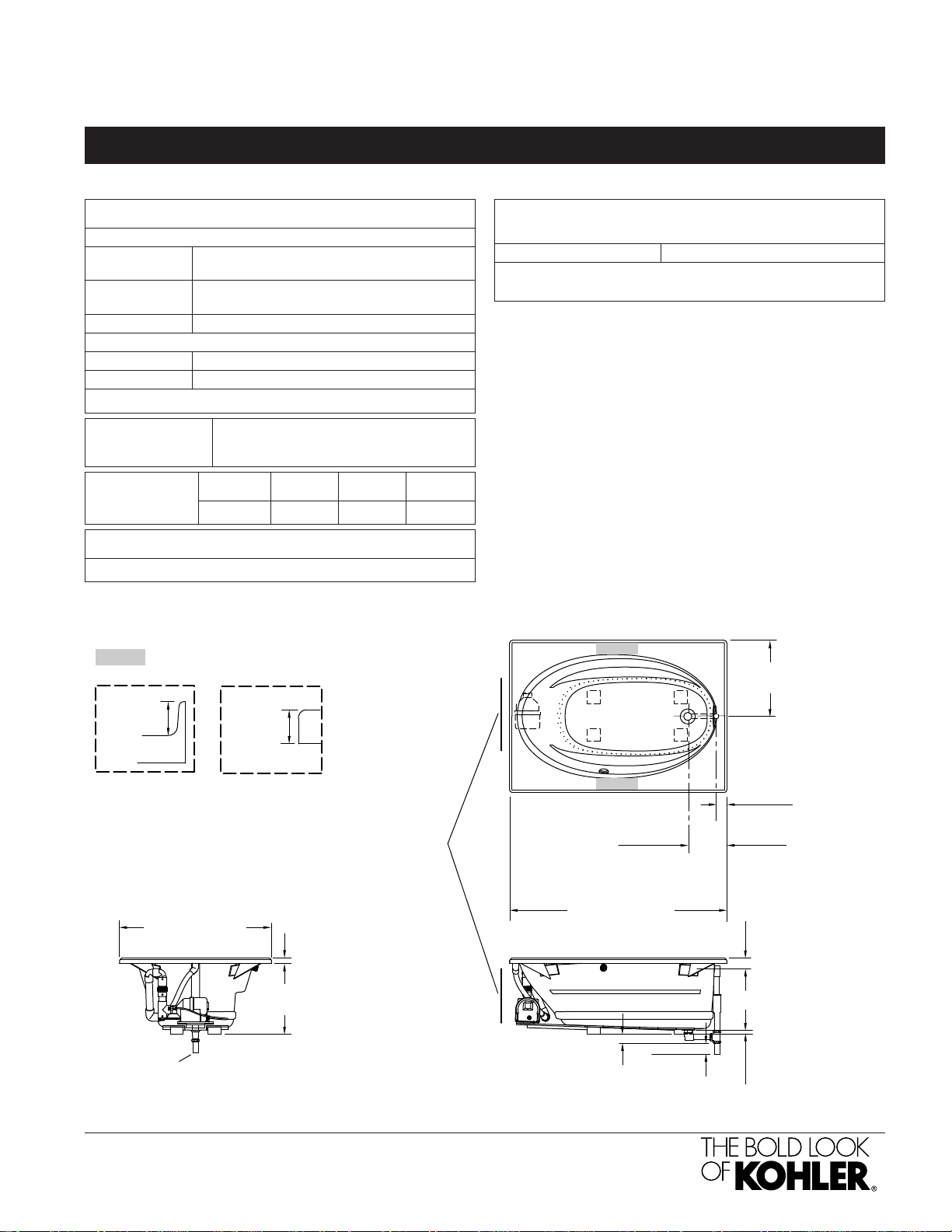

Product Diagram
10-13/16"
(275 mm)
60" (1524 mm)
3" (76 mm)
3-1/8"
(79 mm)
3-1/2"
(89 mm)
1" (25 mm) from the
Floor to the Bottom
of the Drain
