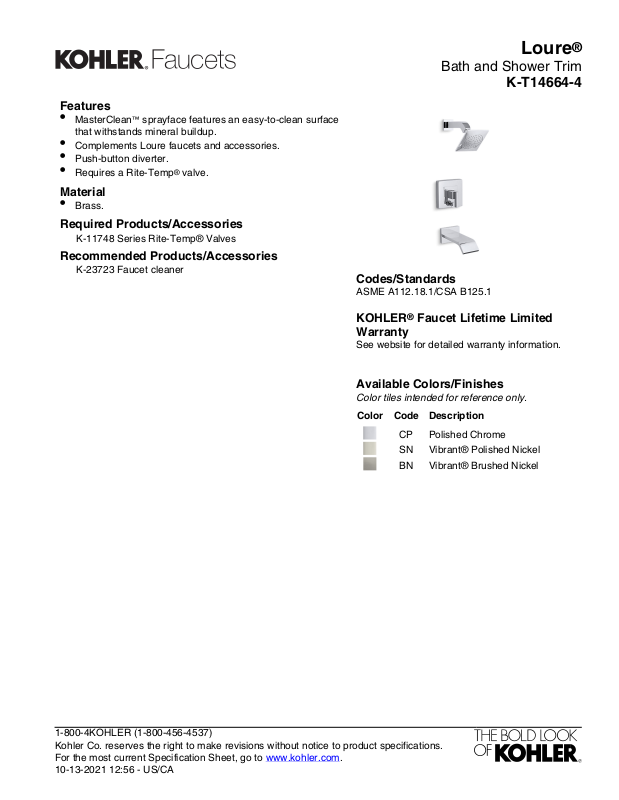

Loure
Features
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Complements Loure faucets and accessories.
•
Push-button diverter.
•
Requires a Rite-Temp® valve.
Material
•
Brass.
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
®
Bath and Shower Trim
K-T14664-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 12:56 - US/CA
Loure
9-3/4" (248 mm)
3-1/2"
(89 mm)
6-1/4"
(159 mm)
10-1/8"
(257 mm)
3-1/2"
(89 mm)
2-1/2"
(64 mm)
3-1/2"
(89 mm)
6-1/4"
(159 mm)
10" (254 mm)
to Spout
(Bath Only)
72" (1829 mm)
78" (1981 mm)
to Floor (Typical)
4" (102 mm)
Top of the Rim
The included pipe/tube
must extend 1/2" (13 mm)
- 11/16" (17 mm) beyond
the finished wall.
1/2" NPT
For slip-fit shower arm,
pipe must extend
2" (51 mm) - 4" (102 mm)
beyond the finished wall.
4-3/4"
(121 mm)
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Notes
Install this product according to the installation
guide.
Avoid cross-flow conditions. Do not install a
shut-off device on either valve outlet.
Cap the shower outlet if the deck-mounted
spout, diverter, or handshower is connected to
the spout outlet.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and the wall-mount spout. Elbow must
be a 90 degree drop ell that is secured to rigid
framing.
®
Bath and Shower Trim
K-T14664-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 12:56 - US/CA
