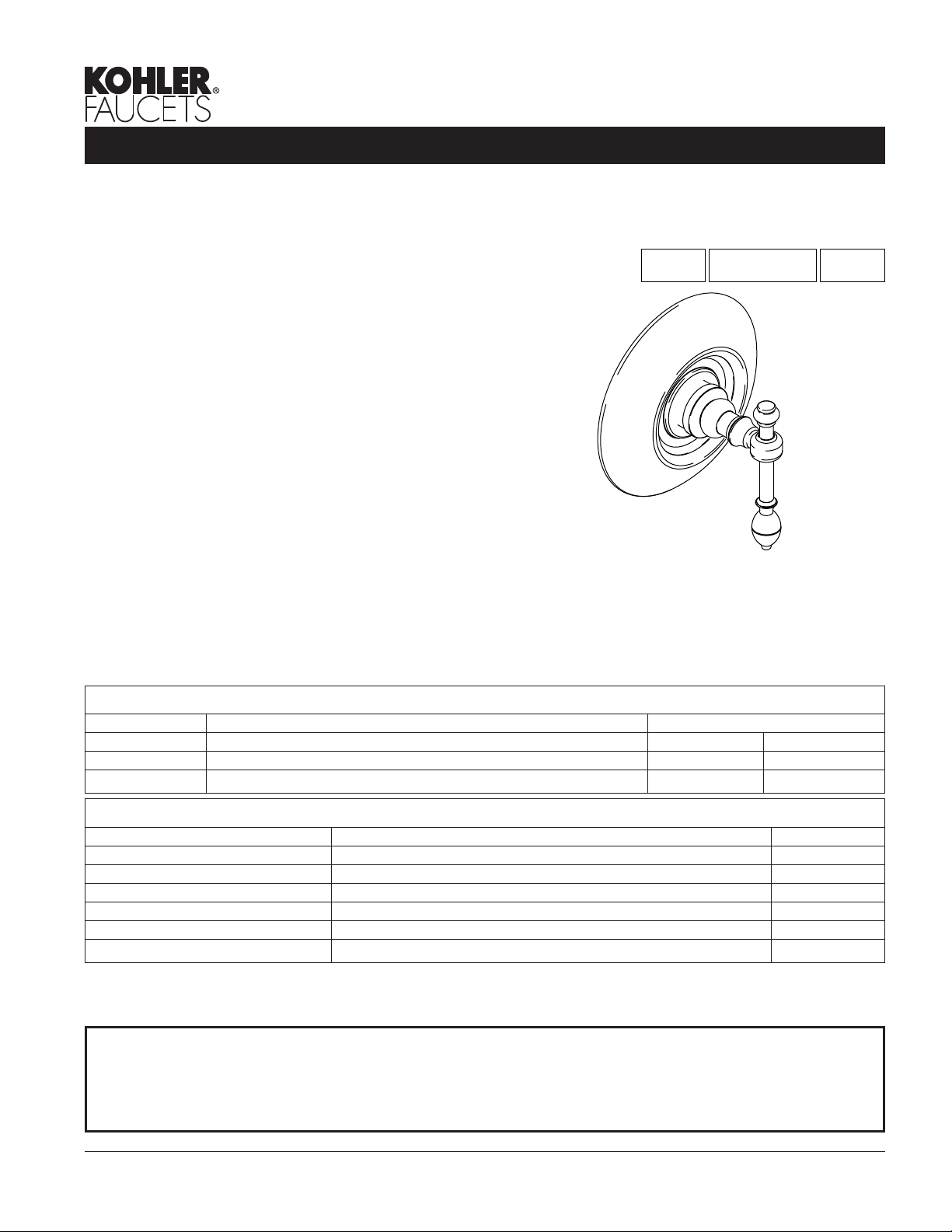

IV GEORGES BRASS
®
Features
Brass construction
•
Available with lever handle
•
Handle assembly
•
Front seal plate assembly
•
Complements IV Georges Brass
•
TM Suite
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
CSA B651
•
OBC
•
ASME A112.18.1/CSA B125.1
•
ASSE 1016
•
Specified Model
THERMOSTATIC TRIM SET
K-T10680
ALSO K-T10681, K-T10682
ADA CSA B651
Colors/Finishes
PB: Vibrant
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Polished Brass
®
OBC
For complete faucet, both faucet trim and valving must be specified.
Model Description Colors/Finishes
K-T10680-4 Thermostatic valve trim ❑ PB ❑ Other ____
K-T10681-4 Volume control trim ❑ PB ❑ Other ____
K-T10682-4 Transfer valve trim ❑ PB ❑ Other ____
Required Accessories
K-2972-KS (replaces K-679-KS) 1/2″ Thermostatic valve ❑ NA
K-2974-K (replaces K-681-K) 1/2″ Volume control ❑ NA
K-2975-KS (replaces K-669-KS) 3/4″ Thermostatic valve ❑ NA
K-2977-K (replaces K-671-K) 3/4″ Volume control ❑ NA
K-728-K 3/4″ Transfer valve ❑ NA
K-737-K 3/4″ Diverter valve ❑ NA
K-10140 Ceramic dial faceplate for K-T10680 ❑ Other____
Product Specification
Thermostatic trim set shall be of brass construction. Trim shall include front seal plate assembly and handle assembly. Product
shall be available with lever handle. Trim shall complement the IV Georges Brass
K-T____-____-____, thermostatic valving shall be Kohler Model K-____-__-NA, and ceramic dial faceplate for Kohler Model
K-T10680 shall be K-10140.
Suite. Faucet trim shall be Kohler Model
®
Page 1 of 2
1041503-4-G
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
IV GEORGES BRASS
®
Installation Notes
Install this product according to the installation guide.
C
L of Valve Inlet
3-3/4" (95 mm)
Thick Wall
2-7/16" (62 mm)
Thin Wall
C
L of Valve Inlet
3-3/4" (95 mm)
Thick Wall
2-7/16" (62 mm)
Thin Wall
4-1/8" (105 mm)
K-T10681/82
3-7/8"
(98 mm)
Ø 3-7/8" (98 mm)
3-7/8"
(98 mm)
Ø 7" (178 mm)
K-T10680

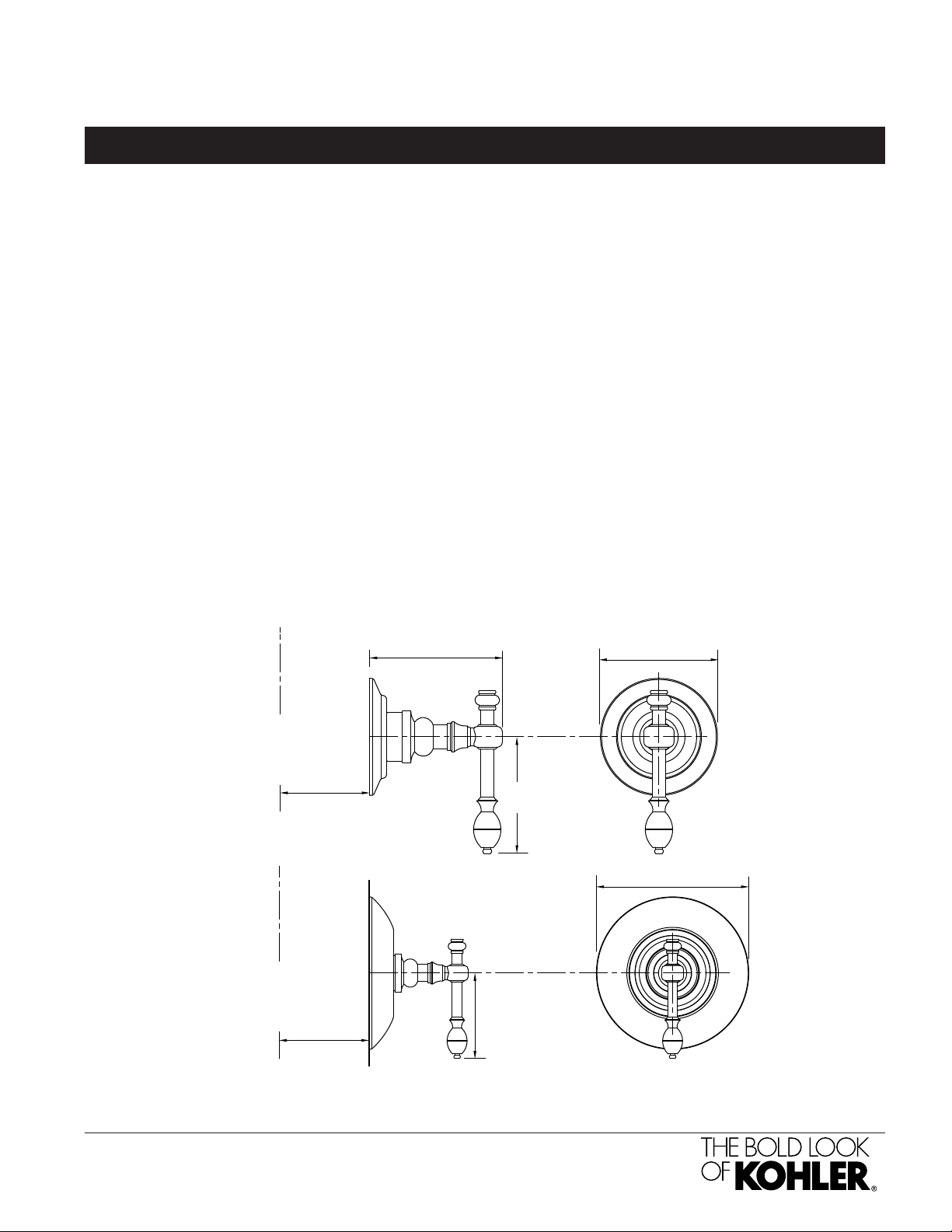

Product Diagram
IV GEORGES BRASS®THERMOSTATIC TRIM SET
Page2of2
1041503-4-G
