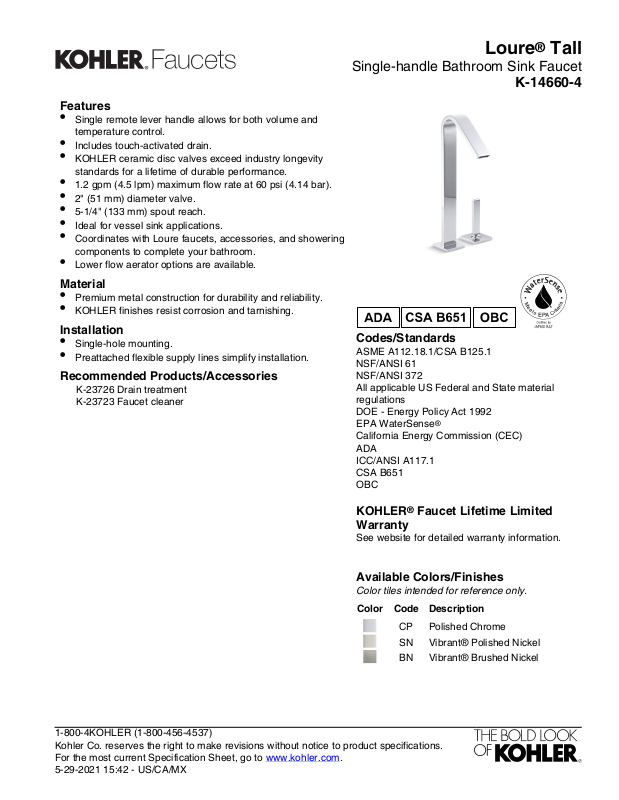

Page 1
Loure® Tall
Features
•
Single remote lever handle allows for both volume and
temperature control.
•
Includes touch-activated drain.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
2" (51 mm) diameter valve.
•
5-1/4" (133 mm) spout reach.
•
Ideal for vessel sink applications.
•
Coordinates with Loure faucets, accessories, and showering
components to complete your bathroom.
•
Lower flow aerator options are available.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single-hole mounting.
•
Preattached flexible supply lines simplify installation.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
Single-handle Bathroom Sink Faucet
K-14660-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 15:42 - US/CA/MX
Page 2
Loure® Tall
5-1/16"
(129 mm)
3-1/4"
(83 mm)
Ø 2-1/8"
(54 mm)
1-1/4" OD
Ø 2-1/2"
(64 mm)
Ø 9/16"
(14 mm)
2-1/2"
(64 mm)
Max
8" (203 mm)
4-5/8"
(117 mm)
2-1/2"
(64 mm) Max
Ø 2"
(51 mm)
10-3/8"
(264 mm)
14-3/8"
(365 mm)
Ø 2-1/2"
(64 mm)
5-1/4"
(133 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: Yes
Spout:
Spout reach: 5-1/4" (133 mm)
Notes
Install this product according to the installation
guide.
NOTICE: Due to the non-standard 2" (51
mm) diameter of the remote valve, the remote
valve cannot be mounted through a standard
1-3/8" (35 mm) faucet hole of a sink. Choose a
sink without faucet holes, then mount the faucet
and remote valve through the countertop. Refer
to the countertop manufacturer’s instructions for
proper hole drilling.
ADA compliant for handles only.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
Single-handle Bathroom Sink Faucet
K-14660-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 15:42 - US/CA/MX
