Installation Guide
Wall-Mount Lavatory Faucets
1405439-2-A

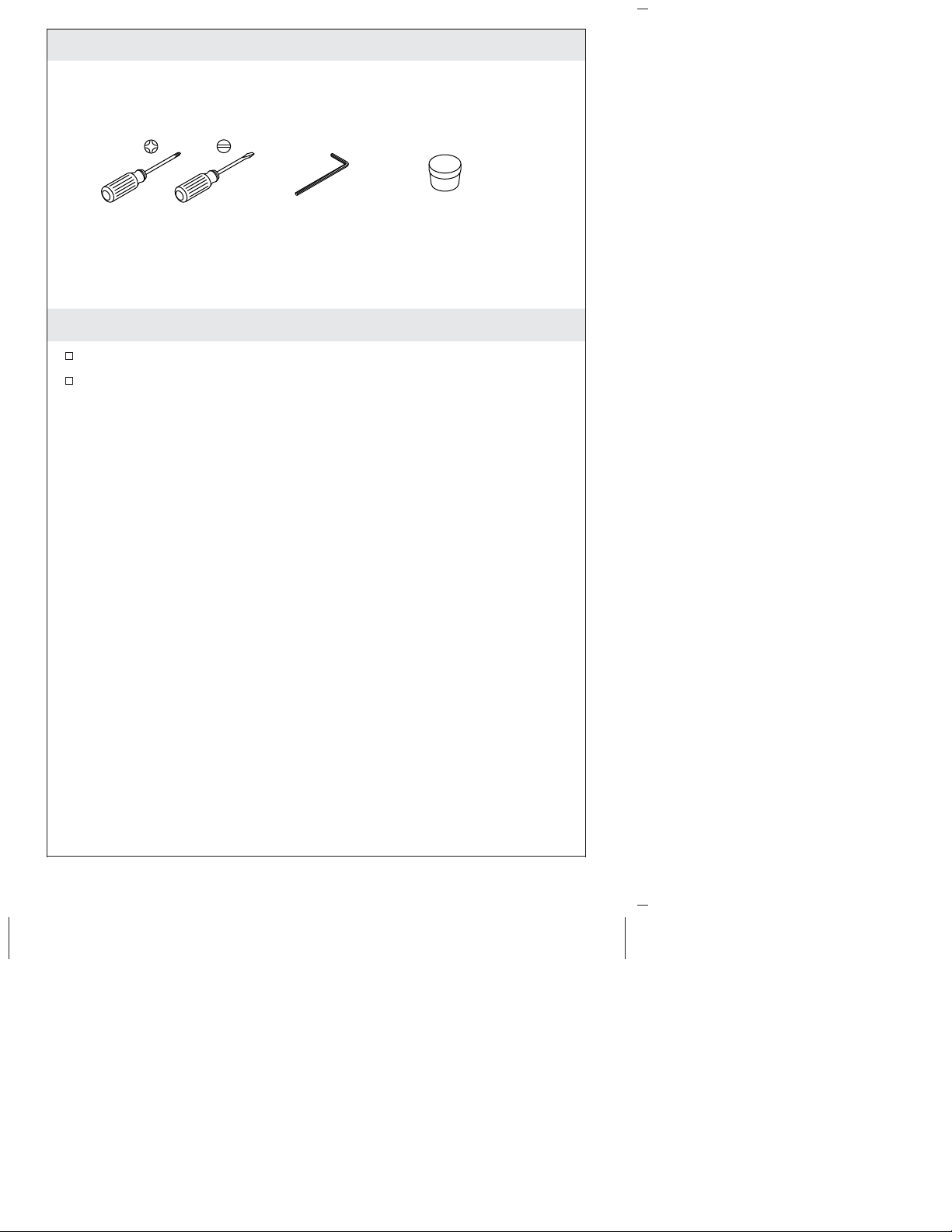

Tools and Materials
Before You Begin
Follow all local plumbing and building codes.
Shut off the main water supply.
Plumbers Putty
1405439-2-A 2 Kohler Co.
Faucet Outlet Port
Plaster Guard
Discard the thread protector.
Flange
Screws
O-Ring
Escutcheon
Spout
Sensor Cover
Setscrew
Apply plumbers putty or sealant.

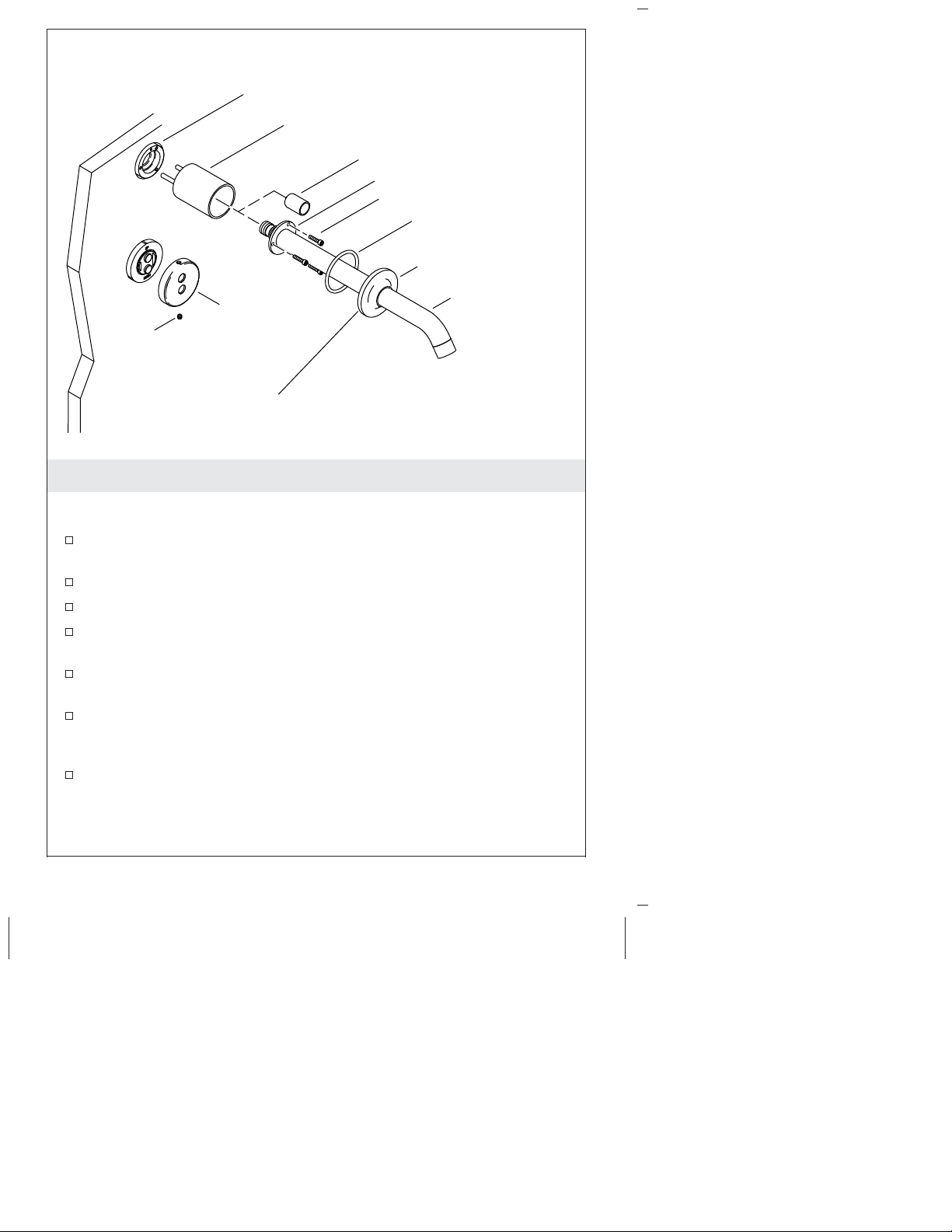

1. Install the Spout
IMPORTANT! Use care when installing the spout to avoid
scratching the finish.
Remove the plaster guard and save the three screws for future
use.
Remove and discard the thread protector.
Thread the spout into the outlet port.
Secure the flange to the wall with the screws (wrench supplied)
that were removed from the plaster guard.
Confirm that the O-ring is in the notch in the interior of the spout
escutcheon.
Apply plumbers putty or other sealant to the back surface of the
spout escutcheon according to the putty manufacturer’s
instructions.
Press the escutcheon firmly against the wall.
Install the Sensor Cover
Kohler Co. 3 1405439-2-A
Install the Spout (cont.)
Turn the setscrew (already installed in the sensor)
counterclockwise until it is tight. Do not overtighten.
Position the sensor cover and secure with the setscrew. Do not
overtighten.
Warranty
Need help? Contact the Customer Care Center at 1-800-456-4537.
For care and cleaning and other information visit kohler.com/clean
This product is covered under the KOHLER
Lifetime Limited Warranty.
For a hardcopy of warranty terms, contact the Customer Care Center.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Mexico: 001-800-456-4537
us.kohler.com/warranty
Warranty: Faucet
®
1405439-2-A 4 Kohler Co.
