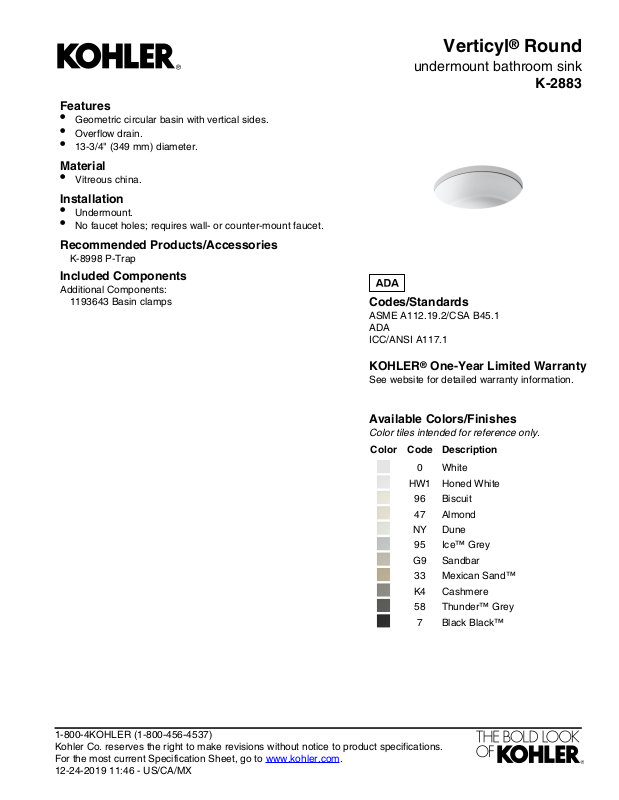

Features
•
Geometric circular basin with vertical sides.
•
Overflow drain.
•
13-3/4" (349 mm) diameter.
Material
•
Vitreous china.
Installation
•
Undermount.
•
No faucet holes; requires wall- or counter-mount faucet.
Recommended Products/Accessories
K-8998 P-Trap
Included Components
Additional Components:
1193643 Basin clamps
Verticyl® Round
undermount bathroom sink
K-2883
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Honed WhiteHW1
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 11:46 - US/CA/MX

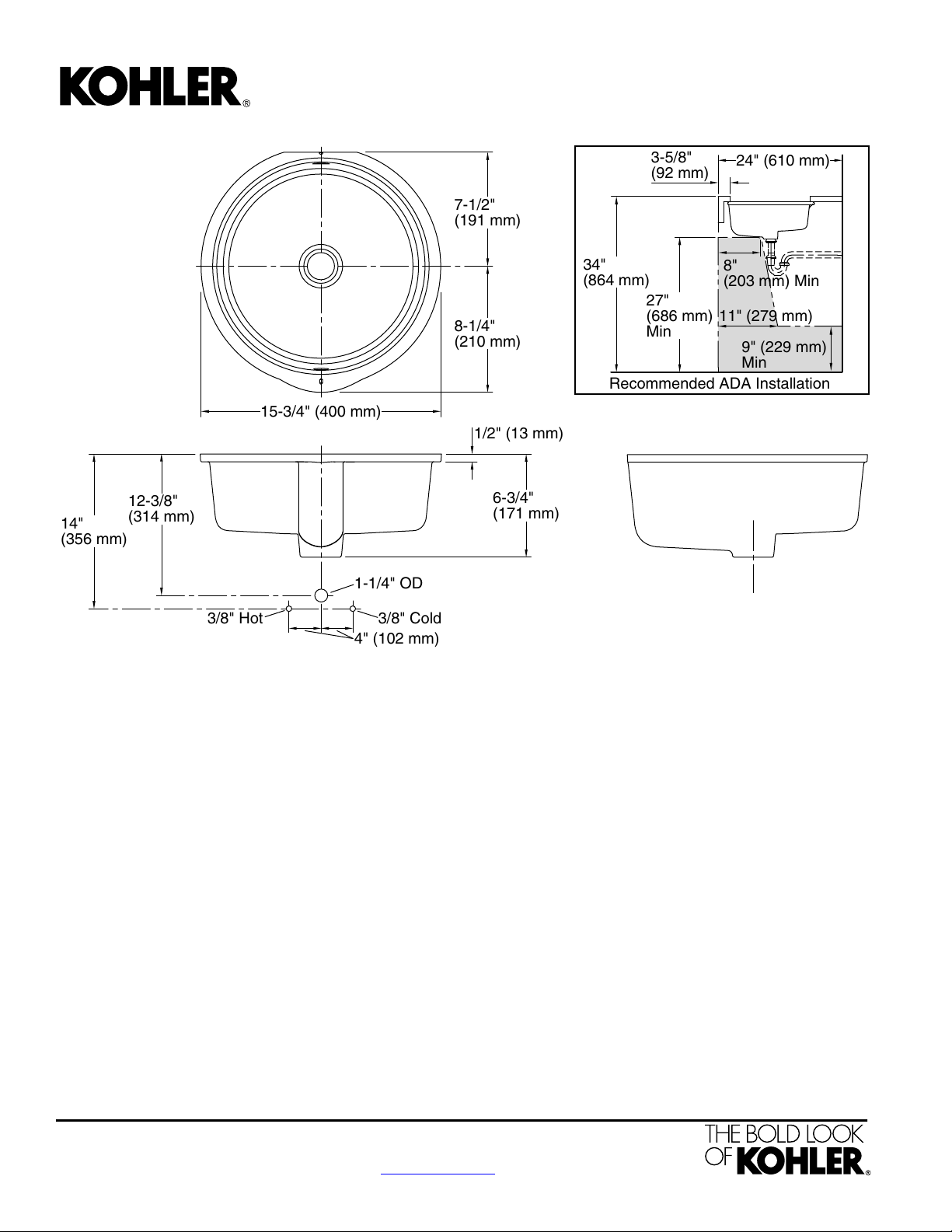

24" (610 mm)
Recommended ADA Installation
11" (279 mm)
3-5/8"
(92 mm)
34"
(864 mm)
27"
(686 mm)
Min
8"
(203 mm) Min
9" (229 mm)
Min
3/8" Hot 3/8" Cold
4" (102 mm)
14"
(356 mm)
7-1/2"
(191 mm)
15-3/4" (400 mm)
1/2" (13 mm)
12-3/8"
(314 mm)
6-3/4"
(171 mm)
8-1/4"
(210 mm)
1-1/4" OD
Verticyl® Round
undermount bathroom sink
K-2883
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 11:46 - US/CA/MX
Diameter: 13-3/4" (349 mm)
Water depth: 3-1/8" (79 mm)
1-3/4" (44 mm)Drain hole:
1109224-7, required, not includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA compliant when installed to the specific
requirements of these regulations.
