Features
•
Valvet® valves.
•
Adjustable flanges.
•
For 8" (203 mm) centers.
•
Stationary gooseneck spout.
•
Lever handles.
•
5-3/16" (132 mm) spout reach.
•
1/2" NPT inside threaded inlets.
•
Lower flow aerator options available (refer to the Kohler Price
Book).
•
2.2 gal/min (8.3 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Material
•
Brass construction.
•
Brass valve bodies.

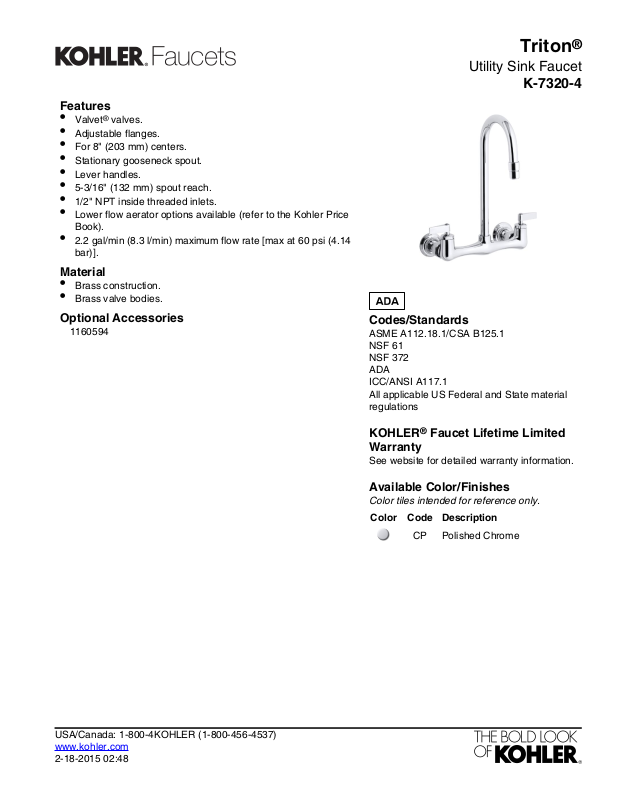

Triton
®
Utility Sink Faucet
K-7320-4
Optional Accessories
1160594
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:48
Triton
®
Utility Sink Faucet
K-7320-4
Technical Information
All product dimensions are nominal.
5-3/16" (132 mm)Spout reach:
Faucet:
2.2 gal/min (8.3 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:48
