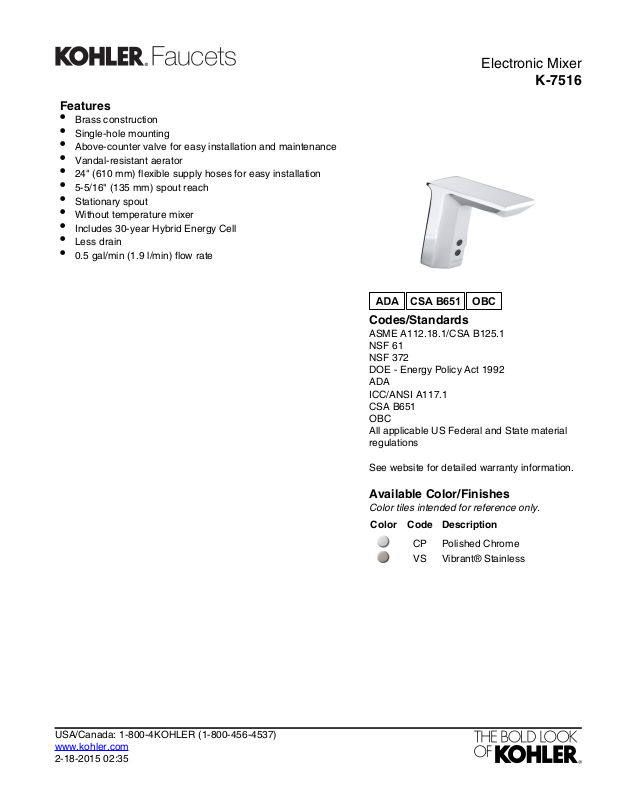

Features
CSA B651
OBC
•
Brass construction
•
Single-hole mounting
•
Above-counter valve for easy installation and maintenance
•
Vandal-resistant aerator
•
24" (610 mm) flexible supply hoses for easy installation
•
5-5/16" (135 mm) spout reach
•
Stationary spout
•
Without temperature mixer
•
Includes 30-year Hybrid Energy Cell
•
Less drain
•
0.5 gal/min (1.9 l/min) flow rate
Electronic Mixer
K-7516
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:35
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® StainlessVS
2-9/16"
Electronic Mixer
K-7516
Technical Information
All product dimensions are nominal.
Machined BrassValve body:
Faucet:
0.5 gal/min (1.9 l/min)Flow rate:
3.6V Size C (Hybrid Energy Cell), includedPower source:
Notes
Install this product according to the installation
guide.
A 1-1/4" (32 mm) minimum to 1-1/2" (38 mm)
maximum diameter mounting hole is required.
The minimum distance between the back of the
faucet spout and the wall must be 1-3/4" (44 mm).
This will allow proper clearance for setscrew
access.
The maximum distance between the bathroom
sink basin edge to the base of the faucet spout
must be 1-3/4" (44 mm).
The maximum height of the lip basin should be
3/4" (19 mm).
Product includes rosebud spray aerator. Other
aerator styles are available.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:35
